DELOCK aktives USB3.1 Gen.1 Verlängerungskabel USB TypC 5m
- Разъем: USB Type C (Male); USB Type C (Female)
- Длина кабеля: 5 mm

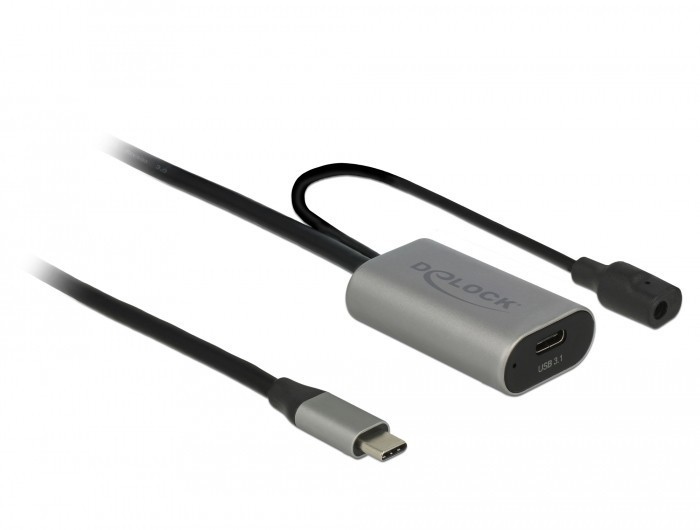

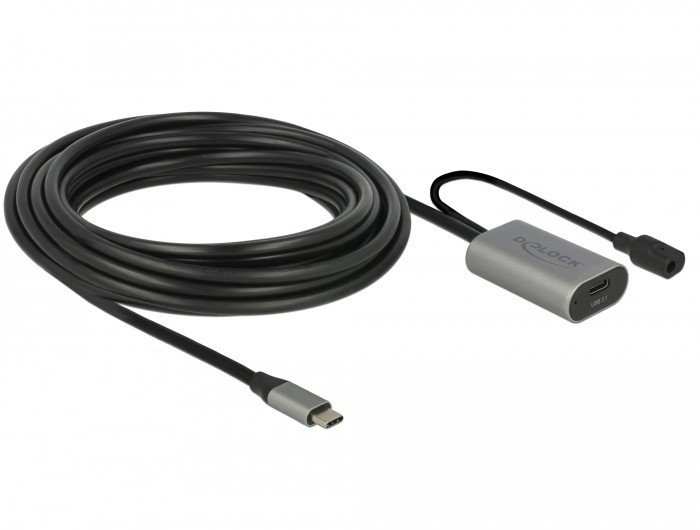

This active USB cable by Delock can be used to extend a USB connection by 5 m. The cable has an additional DC power socket to which an optional power supply can be connected. This ensures optimum data transmission even when used with powerful devices such as a 2.5″ hard drive.
Specification

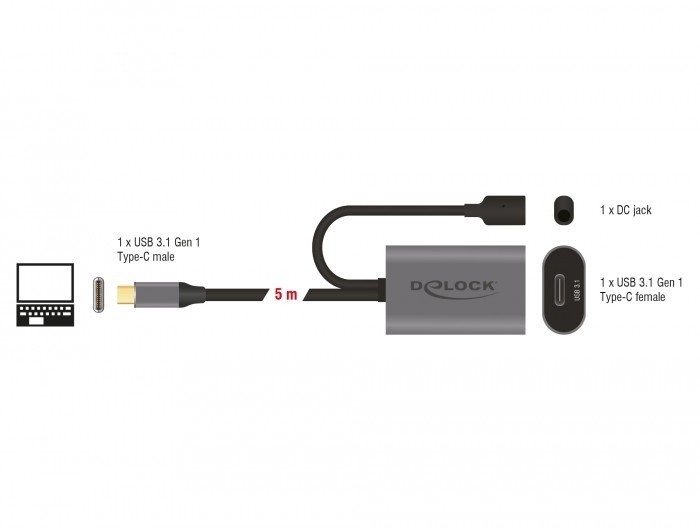

• Connectors: 1 x SuperSpeed USB (USB 3.1 Gen 1) USB Type-C™ male > 1 x SuperSpeed USB (USB 3.1 Gen 1) USB Type-C™ female 1 x DC jack• Chipset: Genesys GL3523• DC jack for optional power supply• Status LED• Cable gauge: Data cable 28 AWG data line / 22 AWG power line Power cable 24 AWG• Resistor: 5.1 kΩ• Cable diameter: data cable ca. 4.6 mm power cable ca. 2.8 mm• Data transfer rate up to SuperSpeed USB 5 Gbps• Colour: black / grey• Dimensions of housing (LxWxH): ca. 45.0 x 28.6 x 14.1 mm• Cable length without connectors: ca. 5 m
Specification of power connector
• Input: 5 V / 2 A• Ground outside, plus inside• Dimensions: inside: ø ca. 1.35 mm outside: ø ca. 3.5 mm length: ca. 9.65 mm
System requirements
• Mac OS 10.13.6 or above• Windows 7/7-64/8.1/8.1-64/10/10-64• PC or laptop with a free USB Type-C™ port
Package content
• USB 3.1 Gen 1 extension cable
Технические характеристики
- Черный
- Серый
- USB Type C (Male)
- USB Type C (Female)
