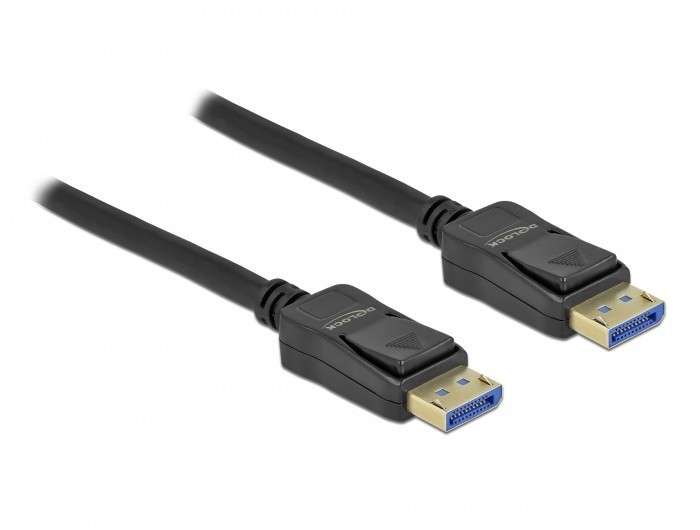

Delock DisplayPort cable 10K 60 Hz 54 Gbps ABS housing 2 m
This cable by Delock is used to connect devices with a DisplayPort interface, such as monitors or TVs, to a PC or a laptop.
10K resolution and HDR support
By supporting a maximum bandwidth of 54 Gbps, content up to 10K (10240 x 4320 @ 60 Hz) resolution can be displayed.
Due to the HDR support colours are realistically displayed with impressive depth, brightness and contrast are optimally reproduced.
Specification
Connectors:
1 x DisplayPort male >
1 x DisplayPort male
DisplayPort 2.0 specification
Downwards compatible to DisplayPort 1.4, 1.3, 1.2 and 1.1
Pin 20 not connected
Cable gauge: 28 AWG
Cable diameter: ca. 7 mm
Copper conductor
Triple shielded cable
Contacts gold-plated
Connector finishing: gold-plated
Transmission of audio and video signals
Data transfer rate up to 54 Gbps
Resolution up to:
Display with DSC support:
10240 x 4320 @ 60 Hz
Display without DSC support:
10240 x 4320 @ 30 Hz
(depending on the system and the connected hardware)
Supports Display Stream Compression 1.2a (DSC)
Supports HDR10
Supports HDCP 1.4 and 2.3
Supports UHBR 13.5 (13.5 Gbps / Lane) data rate
Up to 32 audio channels for speakers
Up to 1536 kHz audio sampling rate
Supports colour sampling in 4:4:4, 4:2:2 and 4:2:0 format
Colour: black
Length incl. connectors: ca. 2 m
System requirements
A free DisplayPort interface
Package content
DisplayPort cable
