Switch 10/100/1000 GIGA 24 SFP

Increase network performance

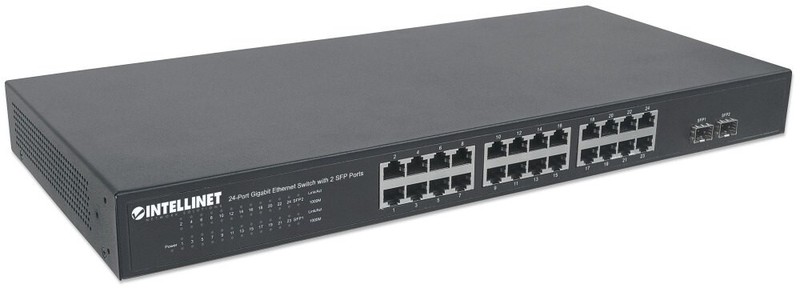

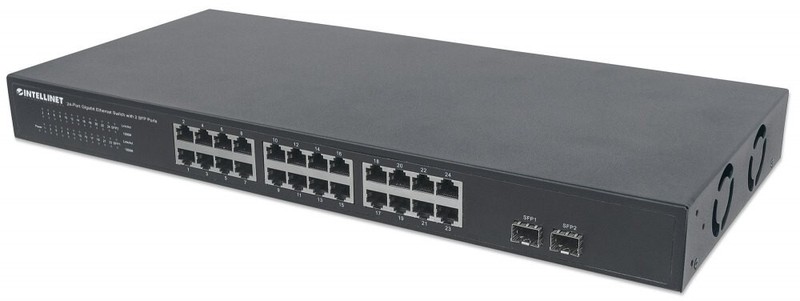

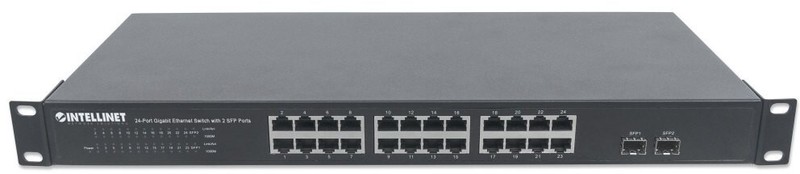

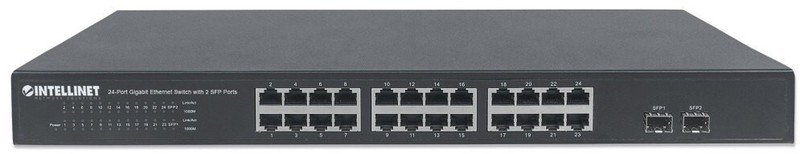

The Intellinet 561044 Gigabit Switch offers a range of features to ensure excellent network throughput.

Extreme flexibility

Twenty-four gigabit RJ45 ports automatically detect optimal network speeds.

Maximum throughput

With 26 gigabit ports: 24 RJ45 ports and 2 ports for GBIC modules, the switch offers high performance for computers, servers and other network devices. Two GBIC (SFP) module slots provide fiber optic connectivity over longer distances. These are not common combo ports, but true Gigabit ports with a total bandwidth of up to 52 Gbps.

• 24 Gigabit RJ45 Ethernet ports (10/100/1000) with automatic detection of optimal network speed
• 2 GBIC (SFP) module slots
• Auto-crossing MDIX connections (auto uplink) on each port
• NWay automatic negotiation support
• Store and forward switching architecture
• Full/half duplex modes
• Compliant with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
• Green Ethernet power saving technology deactivates unused ports and adjusts power levels based on Ethernet cable length
• Supports 802.3x flow control for full duplex and "collision-based backpressure" for half duplex
• Support for Jumbo frames up to 9 kB
• Memory buffer 512kB
• MAC address table up to 8,192 entries
• Quiet operation - fanless design
• Supports auto-learning and auto-aging MAC addresses
