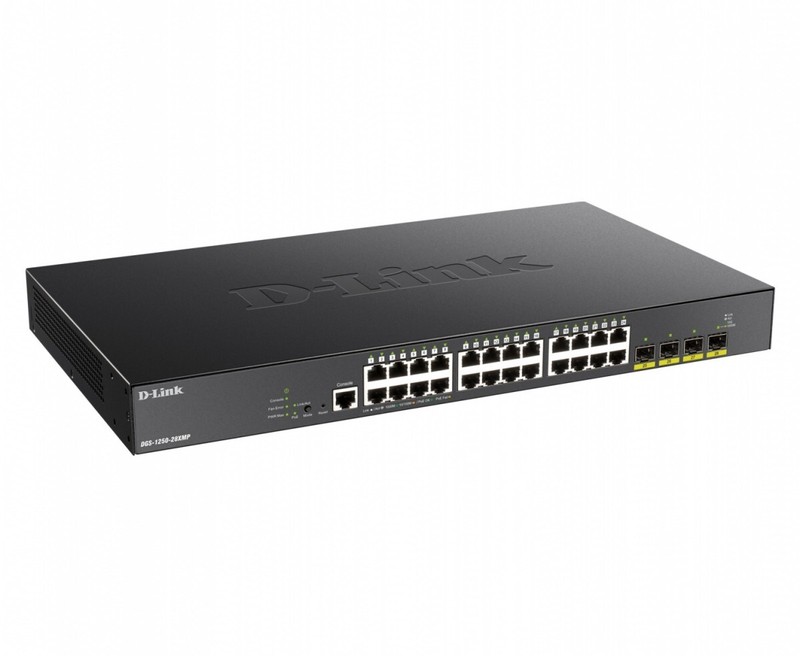

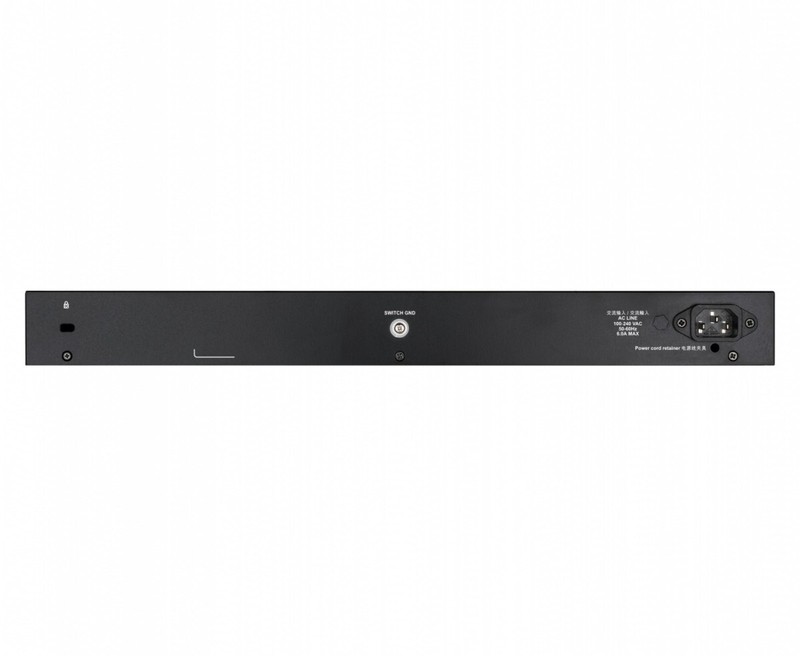

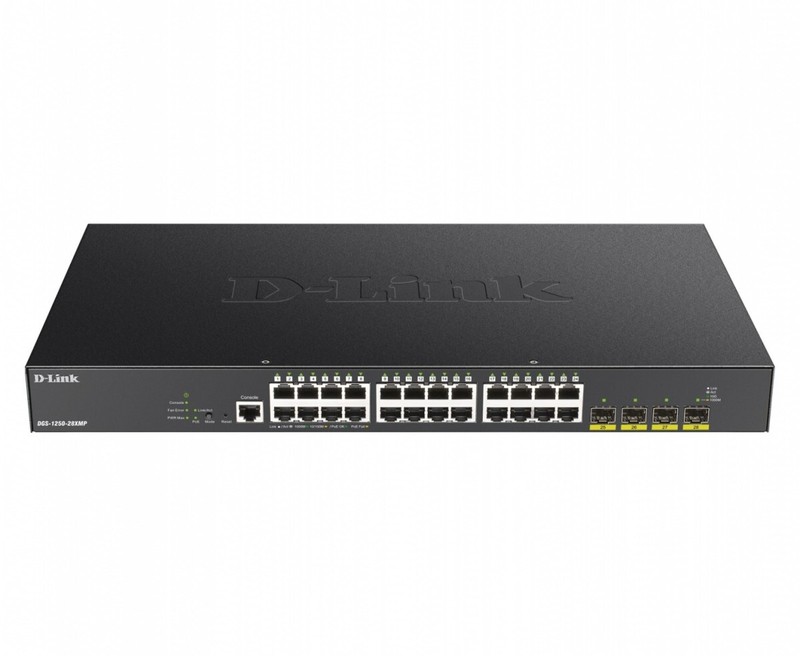

D-Link DGS-1250-28XMP/E 28-портовый умный управляемый PoE+ гигабитный коммутатор
- Gigabit RJ-45: 24
- Класс: SMART
Gigabit managed Smart switches with 10G uplink ports DGS-1250 Series
- 24 1000BASE-T ports
- 4 10G SFTP+ uplink ports
- Layer 2 and Layer 3 Lite features
- Command line CLI, web GUI, console port
- Optional PoE with up to 370W power budget
- Dual OS images and configuration files
- D-Link Lifetime Limited warranty
10G Ethernet ports
Four 10G SFP+ uplink ports. Backward compatibility with RJ-45 ports.
Management interfaces
Dedicated RJ-45 console port. full CLI, graphical user interface, SNMP MIB for remote NMS (D-View 7). Duplicate operating system images and configuration files.
Layer 2 features
Port mirroring, Spanning Tree Procol (STP), RSTP, MSTP, Link Aggregation.
Layer 3 Lite features
Include IP interfaces, IPv6 Neighbour Discovery (ND) and IPv4/IPv6 static routing.
Security controls
Includes ARP Spoofing Prevention, port security - up to 64 MAC addresses per port, IMP-Binding and D-Link Safeguard Engine.
QoS Surveillance
Includes 802.11p Quality of Service, bandwidth control, Auto-Voice VLAN and Surveillance mode.
Limited Lifetime Warranty
Register your product to take advantage of the Lifetime Limited Warranty.
Affordable switches with 10G ports
The DGS-1250 are affordable switches that can be deployed as main switches in mid-sized businesses and access switches in large corporations. Their benefits include high port density, high-bandwidth ports to avoid bottlenecks, a large PoE budget useful for larger deployments, redundancy to reduce downtime, an easy-to-use graphical user interface, a dedicated console and full control via CLI.
Easier maintenance and less downtime.
STP, RSTP and MSTP support provides redundant connections, protects against loops, increases network reliability and minimises downtime for critical applications. The switches can operate over a wide temperature range, from -5 to 50°C. Dual operating system images and configuration files enable rapid software version and configuration changes to reduce downtime.
10G connections
All DGS1250 series switches are equipped with four 10G SFP+ ports, reducing bottlenecks and allowing a choice of media types. Flexible uplink connections in both 1G/10G speeds enable data-intensive tasks.
Switches suitable for video surveillance
A graphical user interface designed for video monitoring is available in monitoring mode. The interface provides real-time information about the network topology, quick access to all functions, and easy and convenient network management.
Layer 3 Lite
Layer 3 Lite includes IP interfaces, IPv6 Neighbour Discovery (ND), ARP-Snooping Prevention, IGMP and MLD Snooping, LLDP and LLDP-MED. The DGS1250 series switches also provide IPv4/IPv6 static routing, which translates into more efficient network performance and is useful for scaling.
QoS
The DGS-1250 series switches support 802.11p Quality of Service, which prioritises the delivery of data to devices based on traffic type. It also enables bandwidth control to reduce unwanted broadcast network traffic. In addition, Auto-Voice and Auto-Surveillance VLAN functions allow voice and video traffic to be controlled, which is automatically recognised and prioritised.
Less cable, more PoE power
All PoE switches in the DGS-1250 series support the IEEE 802.3af/at standard with a large power budget of 370 W. This means more power available for devices in remote locations powered by single Ethernet cables without the need for power outlets. This enables faster deployments of PoE devices such as VoIP phones, wireless access points and network cameras.
Security at port level
The D-Link Safeguard Engine supports protection against data flooding on the network as a result of a malicious attack. The switches also support IMP-Binding, which enables easy control of nodes in the event of IP address conflicts, as well as protecting against ARP spoofing and man-in-the-middle attacks.
Network security is enhanced with ARP Inspection, DHCP Snooping and security and authentication features such as 802.1X port-based authentication and port protection for 64 MAC addresses per port. The DGS-1250 series switches also support network protection features such as Access Control List and DHCP Server Screening, which only allow valid DHCP Server IP addresses on specific ports.
