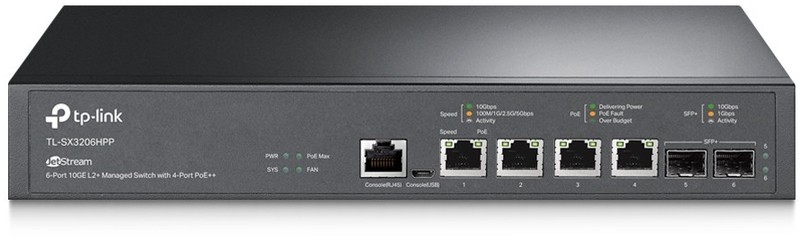

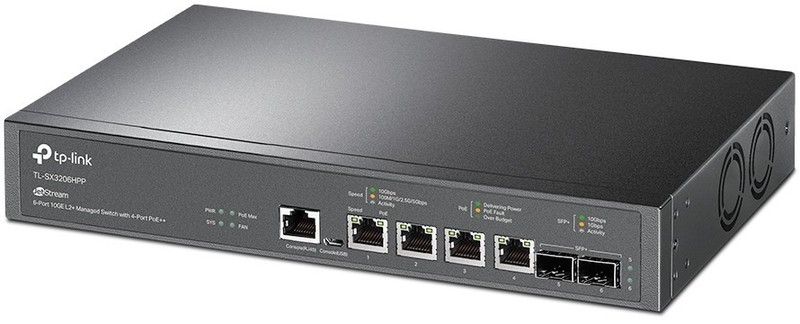

Tp-link Switch SX3206HPP 6x10GE (4xPoE++)
- Gigabit RJ-45: None
- Класс: Managed
TL-SX3206HPP Jetstream L2+ managed switch, 6 10GE ports, including 4 PoE++ ports
- Lightning fast 10G connectivity: 2× 10-Gigabit SFP+ slots and 4× 10-Gigabit RJ45 ports provide high throughput and switching capabilities.
- PoE++ power supply with a total of 200 W: 4 10G ports, compliant with PoE++ 802.3af/at/bt standards and PoE power supply capability of up to 60 W on each port, are ideal for deploying Omada WiFi 6 Access Points and WiFi 6E Access Points.
- Reliable L2 and L2+ functions: Support for a complete line of L2 and L2+ features including Static routing, industrial-grade QoS and IGMP Snooping.
- Strong security strategies: LAN protection is provided by integrated features such as IP-MAC-Port Binding, ACLs, Port Security, and 802.1X authentication.
- Static Routing: Enables routing of network traffic for efficient use of network resources.
- Centralised management in the cloud: Integration with the Omada SDN platform enables easy and convenient access from the cloud and remote management.
- Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image provide extensive management capabilities.

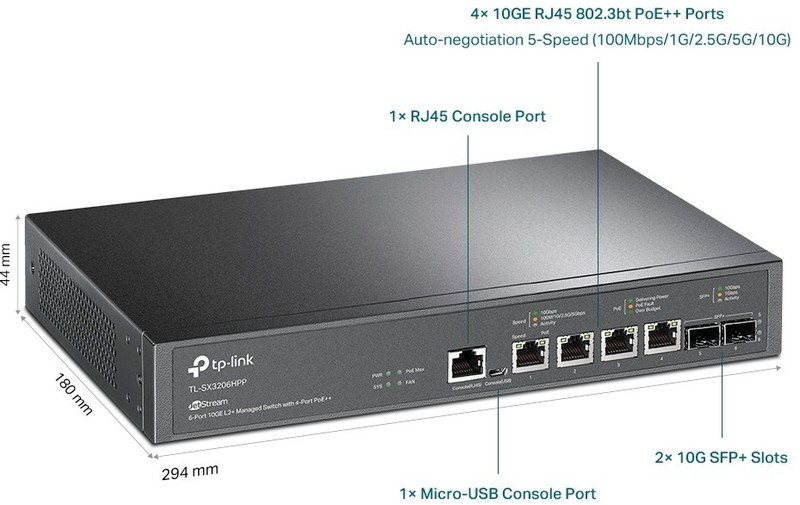

High-speed 10G connections
4 RJ45 10GE ports and 2 SFP+ 10GE slots with a combined switching capacity of 120Gbps
802.3bt PoE++ outputs
Four RJ45 10GE ports offer 802.3bt PoE++ power up to 60W on each port for a total power of 200W
Centralised management in the Cloud
Integration with SDN solution ensures high network performance
Reliable L3 and L2+ functionality
Static Routing, DHCP Server, DHCP Relay, IP Inferfaces, IGMP Snooping, and more
Lightning fast connections thanks to 10GE ports
Build and expand your ultra-fast network with the TL-SX3206HPP fully-managed switch featuring RJ45 10GE ports, fibre ports and 120Gbps switching performance. Four RJ45 10GE ports with autonegotiation in 5 speeds (100Mbps, 1G, 2.5G, 5G and 10G) ensure optimal performance. Two 10GE SFP+ slots enable non-blocking switching performance and ultra-low latency, so you can easily create stable and ultra-fast connections to servers and switches.
Meet the demands of WiFi 6 and WiFi 6E with 10G PoE++ ports
The four RJ45 10GE ports offer PoE++ 802.3bt up to 60W on each port and a total power of 200W. They enable WiFi 6, WiFi 6E access points and PoE devices with high power consumption to reach their full potential. PoE (802.3af), PoE+ (802.3at) and PoE++ (802.3bt) standards are supported, so you do not need to install new electrical circuits to power your devices.
Seamless integration with the Omada Cloud SDN platform
Omada's software-defined network (SDN) infrastructure control platform integrates the operation of network devices, including access points, switches and network gateways, providing comprehensive central management from the cloud. Omada enables a highly scalable network - fully controlled through a single interface. This translates into seamless wired and wireless connections that are essential for hospitality, education, retail, offices and many other industries and establishments.
Advanced Layer 3 features
Enhanced L2+ and L3 features help build a highly scalable and well-secured network that is a reliable and efficient solution - ideal for offices, campuses and service providers alike.
Effective security
IP-MAC-Port binding, port protection, Storm Control and DHCP Snooping are features of the TL-SX3206HPP switch that protect your network from threats. The device also provides the ability to define the most common DoS attacks, so they can be detected and prevented early. Meanwhile, the ACL function (L2 to L4) is applicable for blocking access to specific network resources. Packet forwarding can be denied for specific source or destination MAC addresses, IP addresses, TCP/UDP ports or VLAN IDs. In addition, the switch uses 802.1X encryption to authenticate users seeking access to the network.
L2+ layer functions
With extensive Layer 2 (L2+) features including 802.1Q tag VLAN support, port mirroring, STP/RSTP/MSTP, port aggregation and 802.3x flow control functionality, the TL-SGX3206HPP switches boast versatile performance. The IGMP Snooping function allows multicast streams to be intelligently directed only to specific subscribers, while IGMP Throttling and IGMP Filtering functions effectively restrict unauthorised users from accessing multicast transmissions. The switch also supports static routing to segment the network and improve performance.
Advanced QoS features
In order to ensure better transmission of audio and video in a single network traffic, network administrators can specify priorities, e.g. for individual IP addresses, MAC addresses, TCP or UDP ports, etc. This ensures that audio and video transmission is smooth and lag-free.
Features for service providers
The TL-SX3206HPP is a great solution for ISPs due to the availability of the following features: DDM, sFlow, QinQ, L2PT, PPPoE ID Insertion and IGMP authentication. The 802.3ah OAM features and Device Link Detection Protocol (DLDP) enable easier supervision and management of the entire network.
IPv6 support
The switch supports many IPv6 features such as dual IPv4/IPv6 stack, MLD Snooping, IPv6 ACLs, DHCPv6 Snooping, IPv6 interface, PMTU Discovery and IPv6 Neighbor Discovery, making the network fully compliant with NGN (Next Generation Network) standards and no hardware replacement will be necessary.
