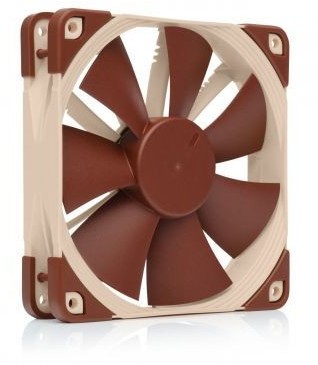

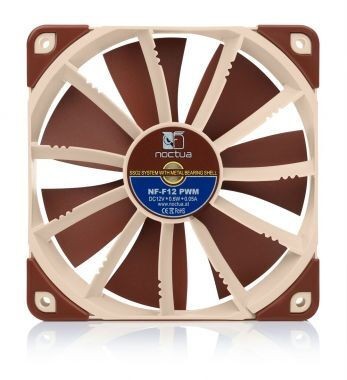

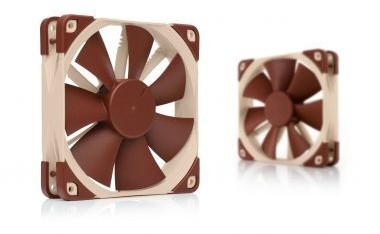

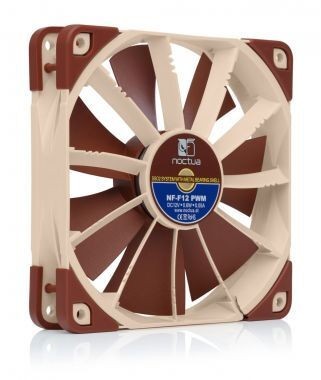

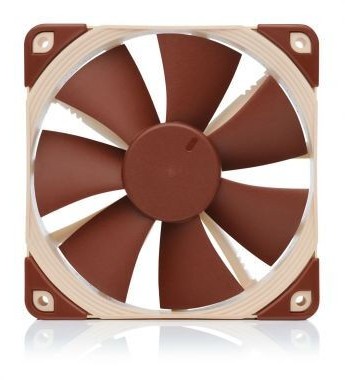

Noctua NF-F12 PWM (120x120x25mm)
- Диаметр: 120 mm
A combination of 11 stator blades with the specially developed seven-bladed rotor and the Focused Flow™ system achieves the excellent static pressure of the NF-F12 and focusses the airflow for superior cooling performance on air coolers and radiators. At the same time the advanced aerodynamic design as well as the SSO bearing of the second generation and Noctua's newly designed PWM IC for fully automatic control make for an impressively low noise emission level. The NF-F12 offers a modular cable system, integrated anti-vibration pads as well as two speed settings for maximum flexibility. Its impressive performance, extensive features and Noctua's proven premium quality make the NF-F12 an exquisite choice for air coolers, radiators and other pressure-sensitive applications.
A feature overview can be found here
Technical specifications:
Dimensions : 120x120x25mm
Colour: Frame: beige/brwon, fan blades: brown
Connector: 4Pin PWM
Operating voltage range: 3,5-14V
Airflow: 93,4 m³/h / 55 CFM
Airflow with LNA: 74,3 / 44 CFM
Nominal speed: 1500 +/- 10% rpm
Nominal speed with LNA: 900 +/- 10% rpm
Minimum speed: 300rpm
Noise emissions: 22,4 dBA
Noise emission with LNA: 18,6 dBA
Static pressure:: 2,61 mm H2O
Static pressure with LNA: 1,83 mm H2O
Current draw: 0,05 A
Power consumption: 0,6 W
Nominal voltage: 12 V
An English mounting manual can be found here
This way to the information sheet.

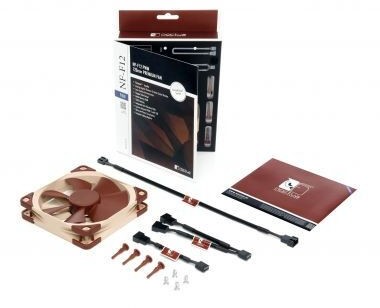

Extent of delivery:
1x Noctua NF-F12 PWM ( 120x120x25mm )
Low-Noise adaptor (L.N.A.)
4-Pin Y-cable
30cm cable extension
4x Vibration-Compensators
4x fan screws
Please note the difference between a 4-Pin power connector (Molex) and a 4-Pin fan connector (PWM).
