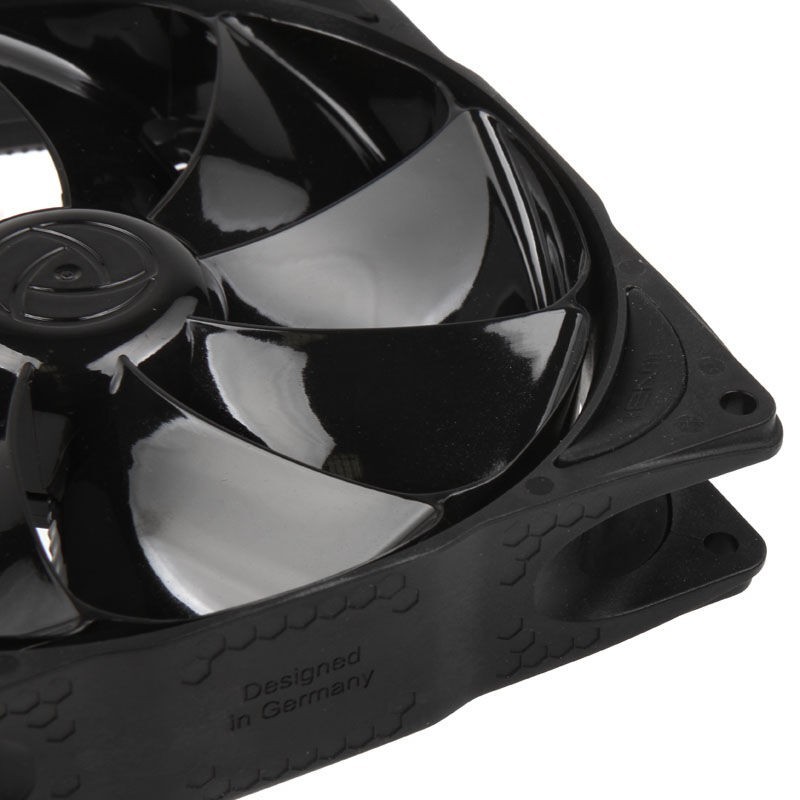

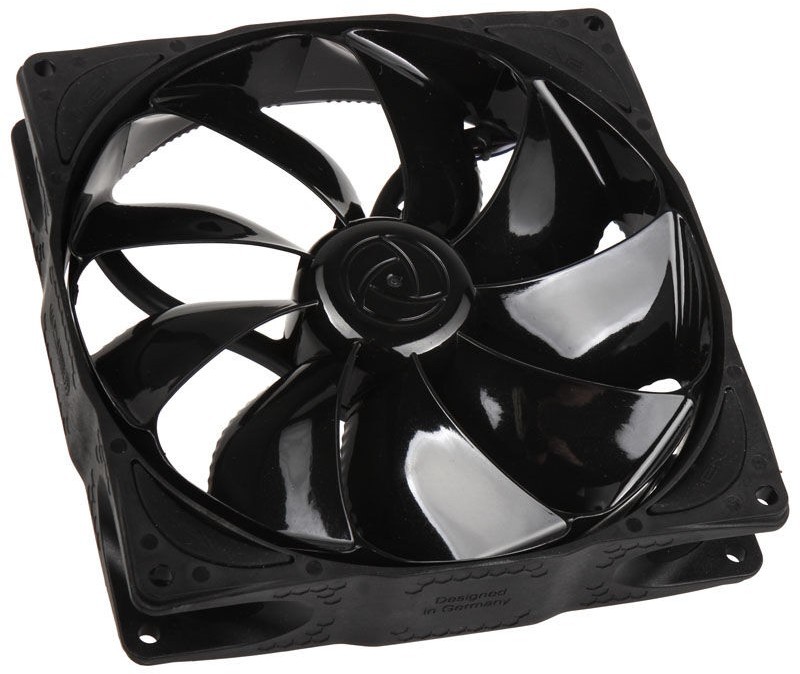

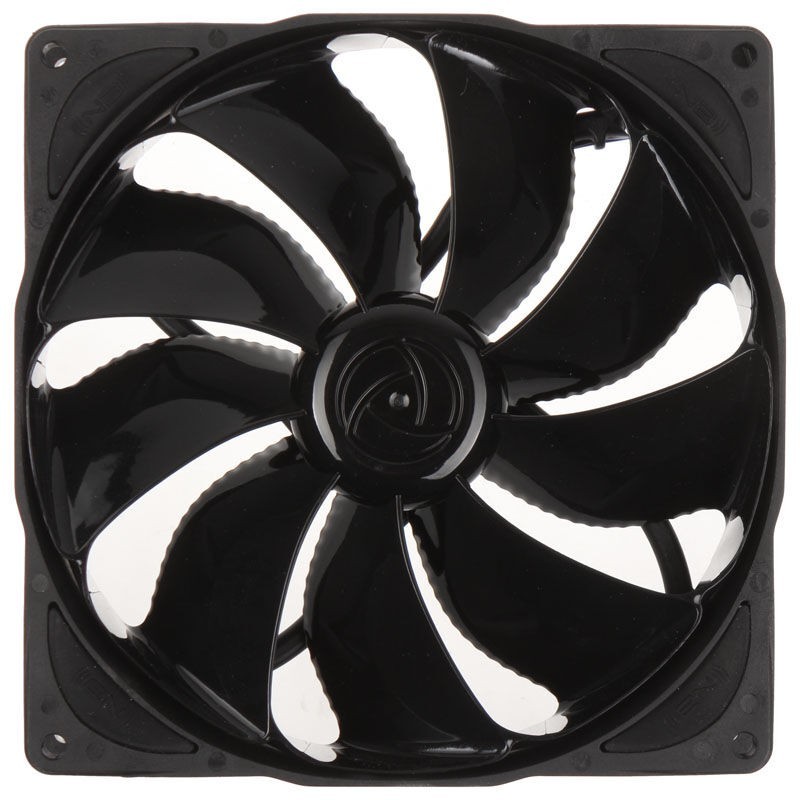

Noiseblocker NB-eLoop Fan B14-PS Black Edition - 140mm PWM ( 140x140x29mm )

High-tech compact fans with a bionic loop rotor (BionicLoopFan®). The special blade shape breaks up turbulence in the air. This physical effect reduces the noise generated by the airflow and lowers energy consumption. With a regulated air stream and higher flow rates at comparable RPMs, these fans offer a better total performance than classic fans.

Welcome to the future!

• 100% developed in Germany
• TÜV-certified volume levels = real data
• Extremely quiet bionic loop rotor
• Bionic deepsound fan frame
• Position-invariant magnetic bearing NB-NanoSLI® 2NEW!
• Silent NB-EKA P2 drive NEW!
• Bayer® Makrolon® rotor with anti-dust technology
• Weighted reinforced fibreglass PBT frame
• NB cable management with two pluggable connection cables
• Perfect results for PC cases, CPU cooling systems and radiators (higher cooling power at the same RPMs!)

Technical Specifications

• Dimensions (LxWxH): 140 x 140 x 29mm
• Colour: black edition (special edition)
• Revolution speed: 1200 RPM
• Starting / rated voltage: 5 / 12V
• Volume: 24 dBA
• Output: 142.6m³
• Connection: 4-pin PWM

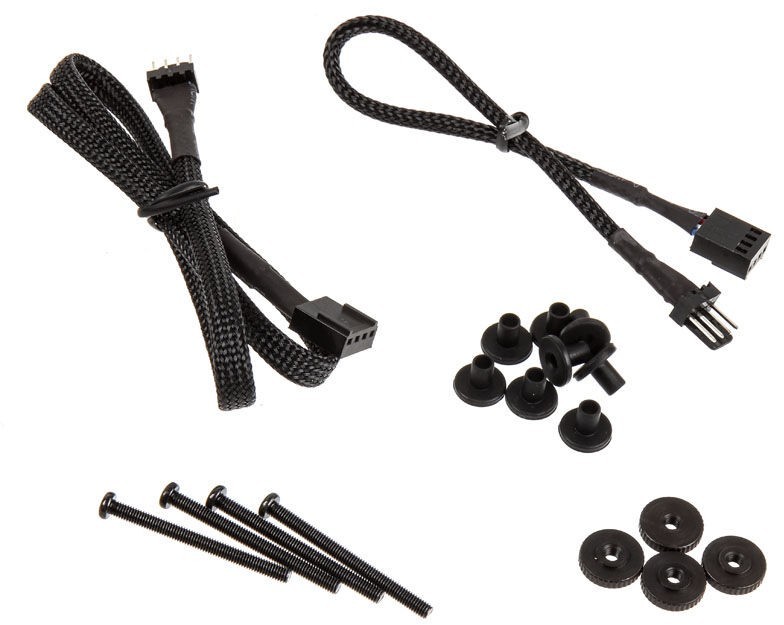

Scope of Delivery

• 1x Noiseblocker NB-eLoop Fan B14-PS Black Edition - 140mm PWM (140x140x29mm)
• 4x fine-thread screws + knurled nuts for tool-free assembly
• 4x NB silicone slics for vibration-free assembly
• 1x each 20 and 50cm connection cables with webbing sleeve

Datasheet
