Delock Slot bracket USB 3.0 pin header 19 pin 1 x internal > 2 x USB 3.0-A female external low profile

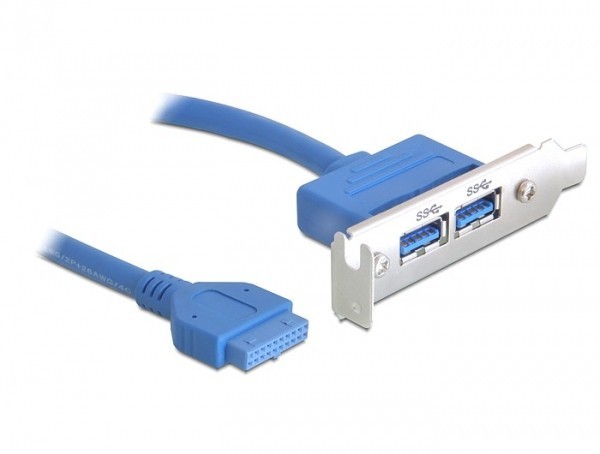

This slot bracket by Delock expands the PC by two USB 3.0 Type-A female ports and can be mounted in Mini PCs due to the low profile bracket. The cable of the slot bracket can be connected internally to the motherboard with a 19 pin USB 3.0 pin header. Thus the internal connection will be lead outside, in order to connect devices with USB Type-A connector to the computer.
Specification
• Connector: internal: 1 x 19 pin USB 3.0 pin header female external: 2 x USB 3.0 Type-A female• For the installation in a low profile PC• Pitch distance: 2.00 mm• Screw type: #4-40 UNC• Cable gauge: 30 AWG data line 28 AWG power line• Cable diameter: ca. 7 mm• Data transfer rate up to 5 Gbps• Slot bracket: low profile• Cable colour: blue• Cable length without connector: ca. 40 cm
System requirements
• PC with a free low profile slot• Mainboard with a free 19 pin USB 3.0 pin header male
Package content
• Slot bracket
