ASROCK B760M-HDV/M.2 D4 Socket 1700 DDR4
- Чипсет: Intel B760
- Сокет: LGA 1700
- Форм-фактор: Micro ATX
- RAM: DDR4

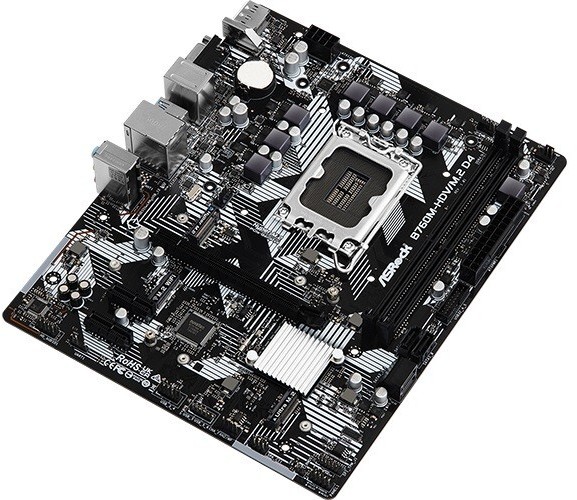

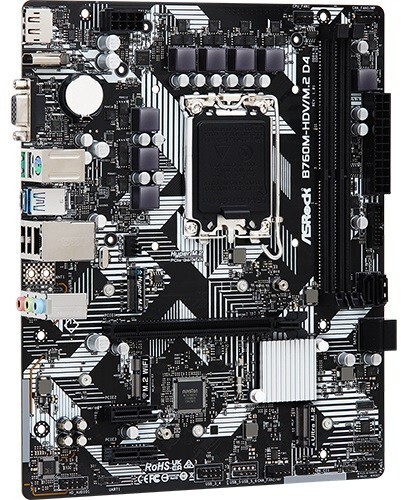

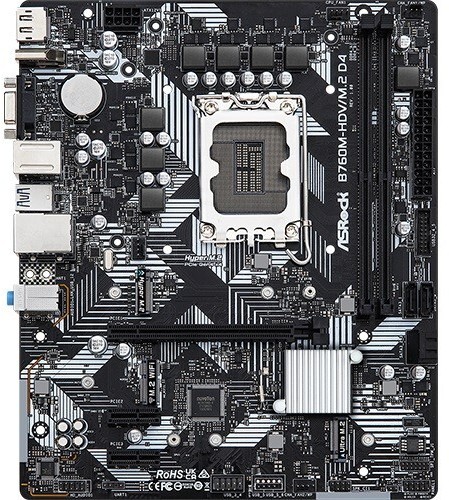

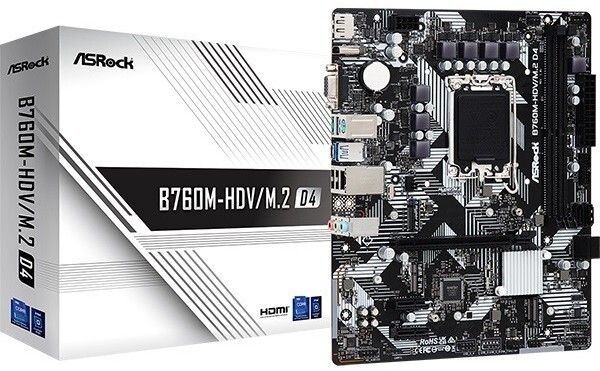

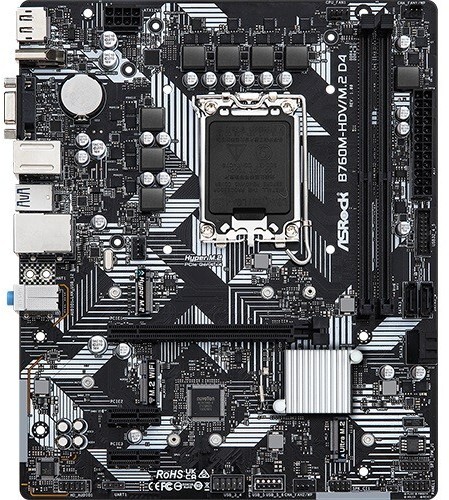

B760M-HDV/M.2 D4 motherboard
- Supports 13th and 12th generation Intel Core processors (LGA1700)
- 5+1+1 Power Phase
- Supports DDR4 5333MHz (OC)
- 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics outputs: HDMI, DisplayPort, D-Sub
- Realtek ALC887/897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4),
- 1 Ultra M.2 (PCIe Gen3x4 & SATA)
- 1 USB 3.2 Gen1 Type-C (Rear),
- 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
- 5 USB 2.0 (2 Rear, 3 Front)
- Realtek 1G LAN
- Supports ASRock Automatic Driver Installer
5+1+1 Phase Power Layout
Durable components and smooth power transfer to the CPU translate into enhanced performance for gamers.
High Speed M.2 Connections(PCIe Gen4 x4)
Support for PCI Express 4.0 M.2 SSDs, which can operate up to twice as fast as the previous 3rd generation for lightning-fast data transfers.
M.2 (KEY E) for WiFi
In addition to the integrated LAN port, users can also choose 802.11ac wireless connectivity via the M.2 (Key E) slot.
*Wi-Fi module not included.

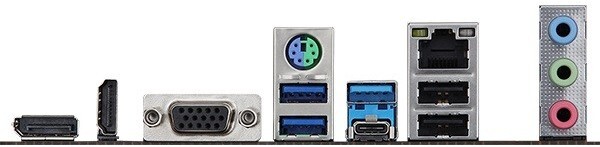

3 graphics outputs
This float is equipped with the three most commonly used types of video outputs: D-Sub + DisplayPort + HDMI.
*Support only with processors with integrated graphics cards. Please refer to the CPU support lists on the motherboard pages.
