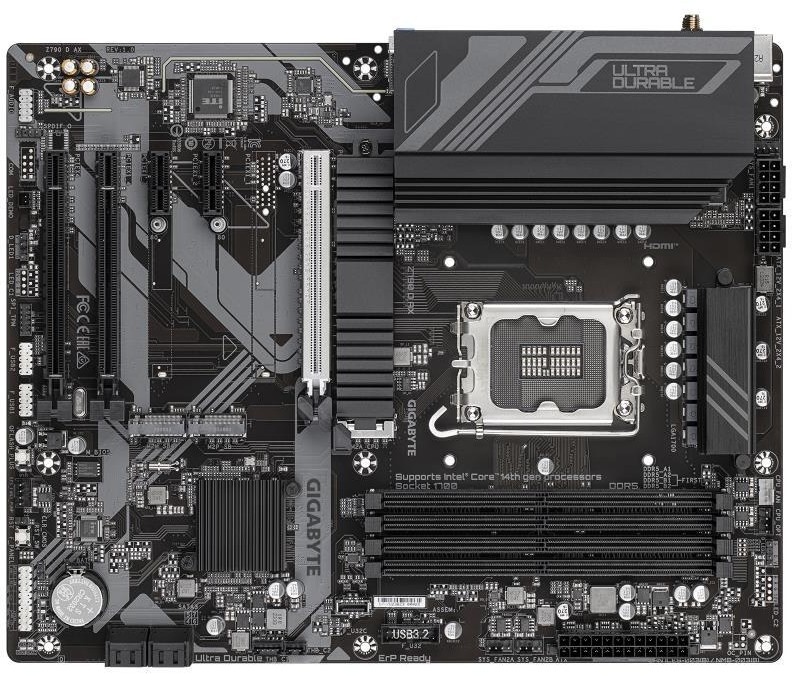

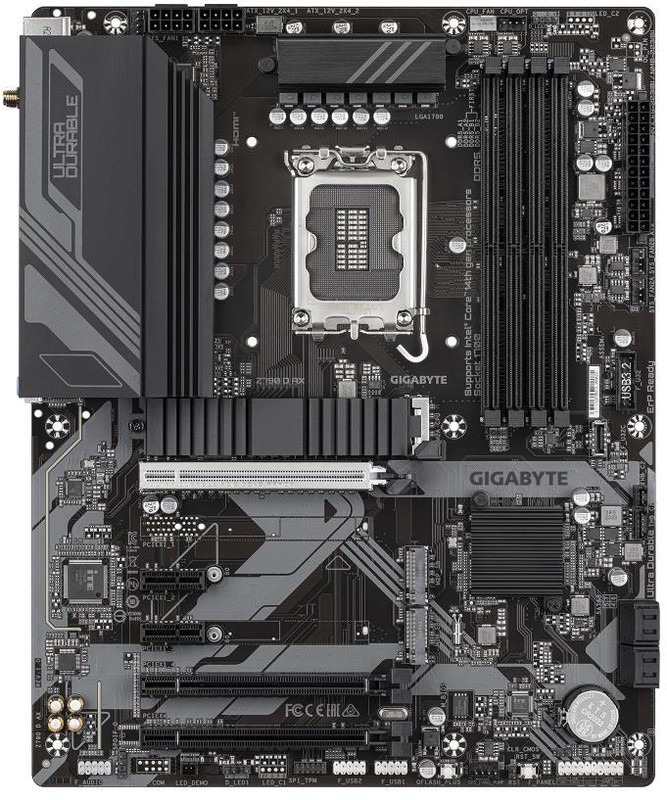

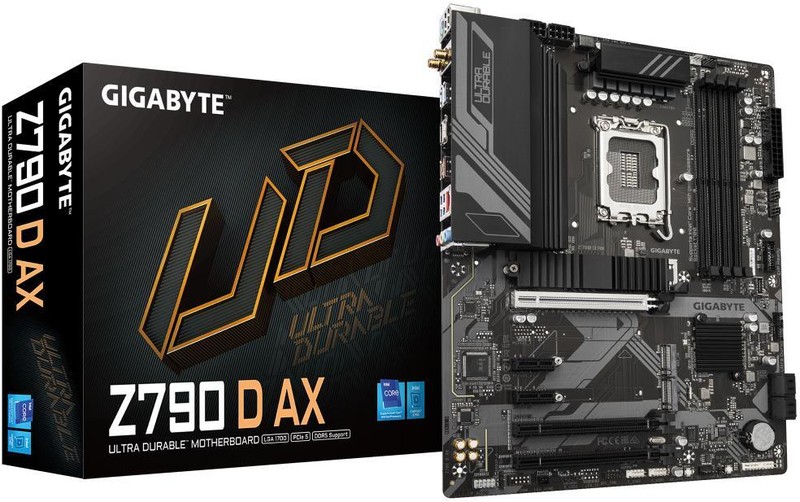

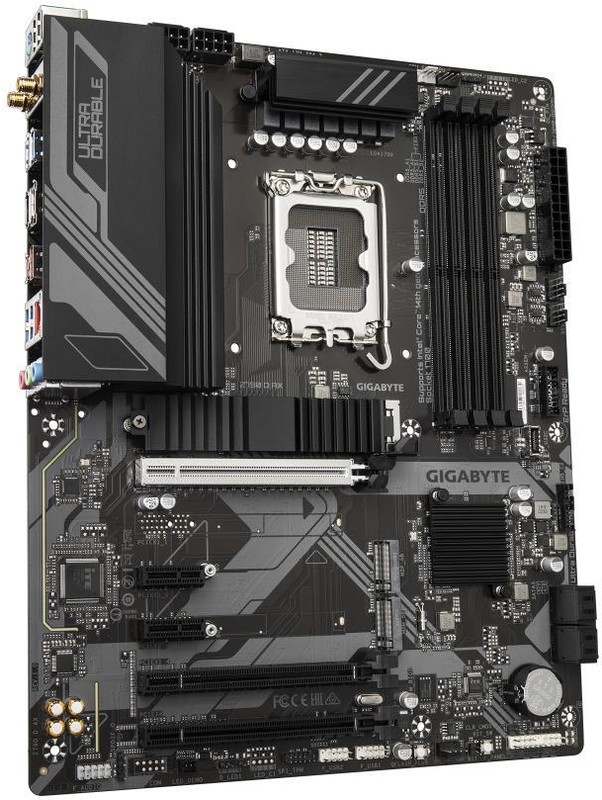

Материнская плата GIGABYTE Z790 D AX
- Чипсет: Intel Z790
- Сокет: LGA1700
- Форм-фактор: ATX
- RAM: DDR5
Z790 D AX
- Supports Intel Core 14th/ 13th /12th processors
- Unparalleled Performance: Twin 12*+1+1 Phases Digital VRM Solution
- Dual Channel DDR5: 4*DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage: 3*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
- EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax

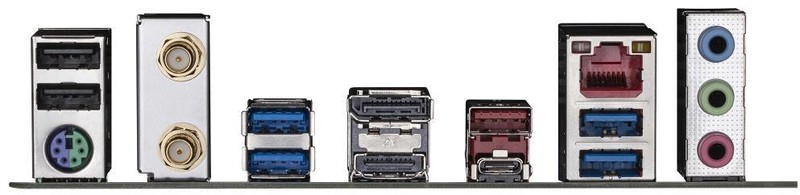

- Extended Connectivity: DP, HDMI, Rear USB-C 10Gb/s
- Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Durable Performance
GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.
Digital VRM Design
The best VRM design ever built with the highest quality components.
Unlock DDR5
DDR5 Overclocking Up to 7600 and Beyond.
GIGABYTE is offering a tested and proven platform with extreme memory performance boost.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
802.11ax Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
2.5GbE LAN
Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.
PCIe 5.0 / 4.0 Hardware Design
Featuring PCIe 5.0 x16 slot and PCIe 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 5.0/ 4.0 devices to provide the superior performance.
Hi-Fi Audio
High-End Audio Capacitors
These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.
Audio Noise Guard
Essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory, and graphics card.
- STEP 1: Plug 24pin & 8pin power supply cable on motherboard
- STEP 2: Download the motherboard BIOS file and rename it to "gigabyte.bin". Save it to a USB flash drive formatted in FAT32. Insert the USB flash drive into the Q-FLASH PLUS USB port.
- STEP 3: Press the Q-FLASH PLUS button, and the motherboard will start updating the BIOS automatically.
Smart Fan 6
ensures optimal cooling and quiet operation for your gaming PC, with support for PWM/DC fans and pumps, customizable settings, and intuitive temperature monitoring.
- High Current Support: Each fan header supports PWM and DC fan and Water cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection
- Precision Control: Multiple temperature/fan speed control points for precise fan curve
- Dual Curve Mode: Slope/Stair dual mode for different user scenarios.
- Fan Stop: Fan can stop completely below users' specified temperature point
UC BIOS
- Redesigned UI and UX: an intuitive operation interface with an aesthetically pleasing design.
- Quick Access: 9 customizable option slots for effortless access in Easy Mode.
- PerfDrive: exclusive BIOS settings that optimize the performance based on the cooling configuration.
