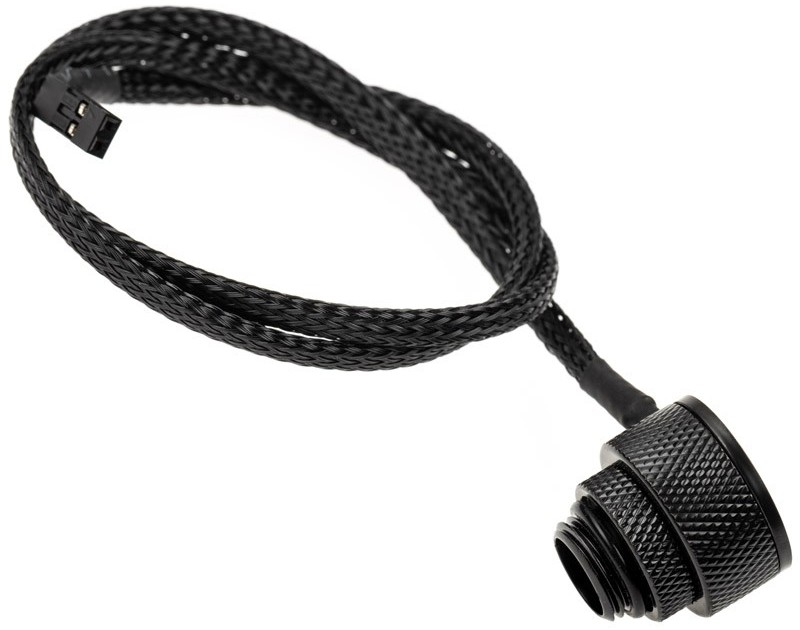

The Alphacool Eiszapfen temperature sensor flat G1/4" is a simple water temperature sensor that can be easily integrated into any water loop.

Integration made easy

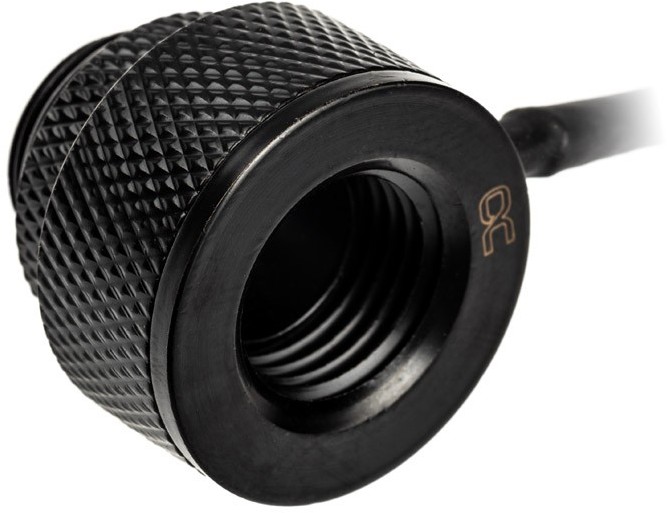

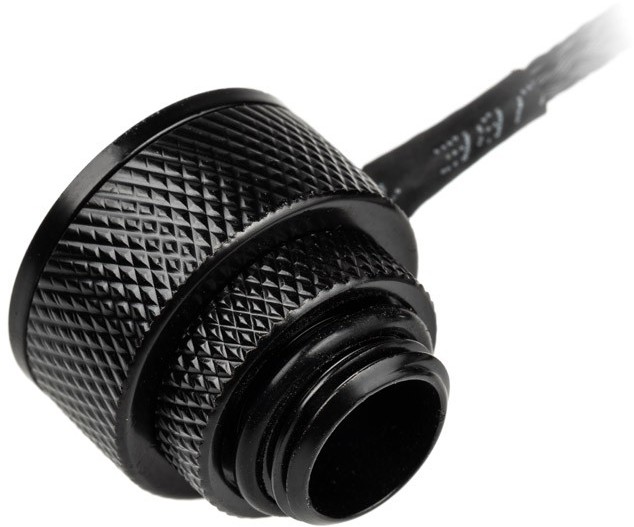

The temperature sensor is very compact and can be integrated into any water circuit due to its G1/4" external thread. It is simply screwed into the corresponding G1/4" connection at any position in the water loop. Due to the small screw-in depth, it is compatible with all Alphacool products with a free G1/4" connection.

Sensor

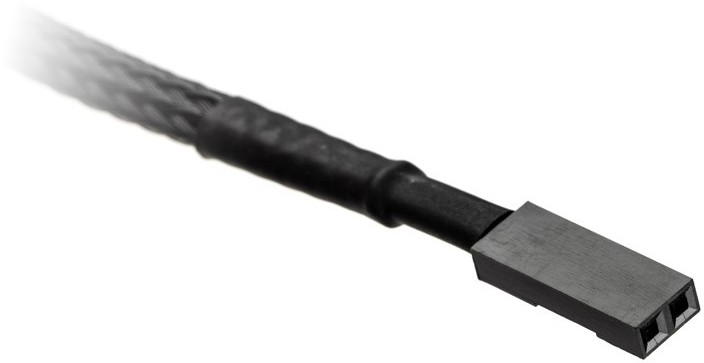

A classic NTC 10 kOhm thermistor is used as sensor. The readable temperature range is between -40 and 125°C. The cable is 40 cm long and leads into a typical 2-pin connector. Many mainboards now offer direct connection options for such sensors. Please check the manual of your mainboard. Of course there are also several external controllers that offer a connector for the sensor.

Design
The design is very simple so that the temperature sensor can be installed almost invisible in the system.
