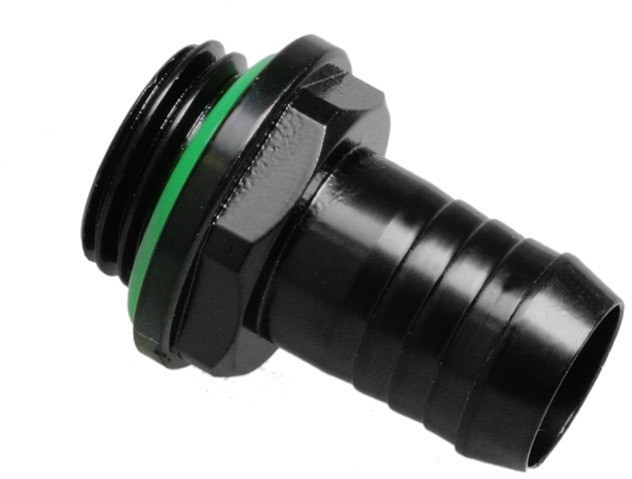

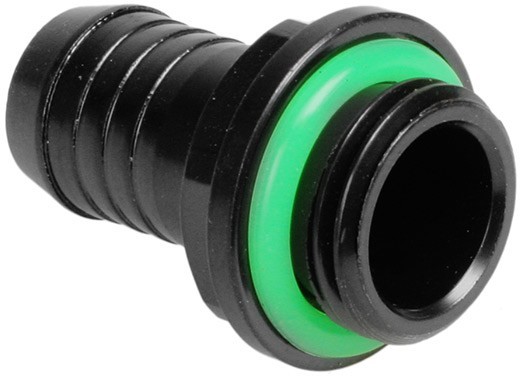

The G1/4" fitting in matt black is designed for soft tubes with 3/8 inch or 10mm inner diameter. Tubes with any outside diameter can be used, since no union nut is used. However, cable ties or tube clamps are recommended for attaching the tubes. A 15mm wrench should be used to mount this fitting, but as with other fittings, tighten only hand-tight.

Technical Data:

• Material: Brass
• Colour: Matt Black
• Thread: G1/4"
• Thread Length: 5 mm
• Tubing Size: 3/8" / 10 mm
• Tubing Side Length: 15 mm
