EK Water Blocks EK-Torque adapter 45 degrees G1/4 inch AG to G1/4 inch IG - rotatable, black

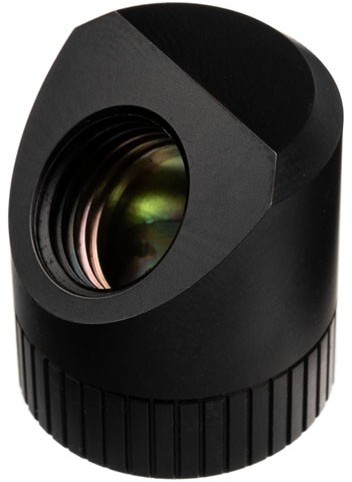

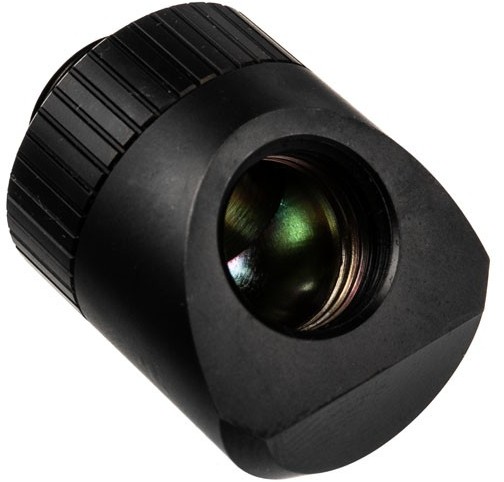

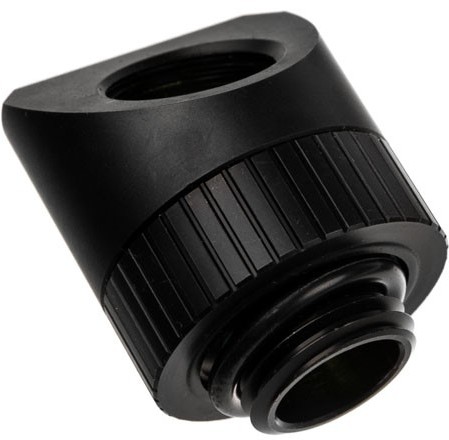

EK-Quantum Torque (Adapter Fitting) - Black is a rotating, angled (45°) adapter with G1/4" thread. Shaped like a truncated cylinder, it is very robust and there is no movement in the rotating joint. This Quantum Line adapter is made of CNC machined brass with a high quality satin black finish, while the seal is made of high quality rubber o-rings. Black EK-Quantum Torque series fittings are intentionally not painted inside to reduce the amount of possible contaminants in the circuit. It is an extremely safe and stable piece that will last for many future builds.
The adapter allows you to connect G1/4" threaded fittings to expand the tubing options in your water-cooled system, allowing for easier bends and better accessibility.
The EK-Quantum Torque series products have been awarded the prestigious iF Design Award. A robust and industrial aesthetic characterizes the Torque family by highlighting the precise manufacturing processes used to create them. In addition, enthusiasts can add a unique color ring to give the connector line a personal touch. The Torque family of connectors offers a secure and modular connection system between liquid cooling components and tubing within a PC. The Quantum Torque series products include angled adapters, rotating and static extensions, manifolds, G1/4" plugs, drain valves, connectors and much more.
Technical data:
- Material: nickel-plated brass
- Thread:
G1/4" BSP; 4.5 mm external thread length
G1/4" BSP, 6 mm internal thread length - Outer diameter: 23 mm
- Installation height: 26 mm
- with high-quality NBR O-ring.
ROHS compliant!
