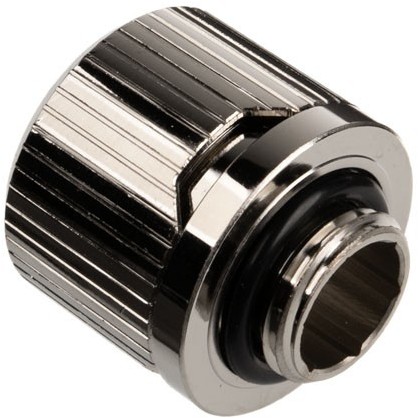

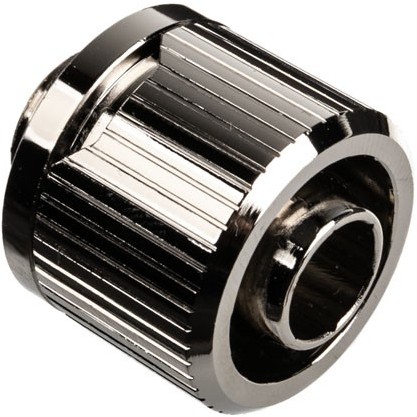

EK Water Blocks EK-Torque STC-16/10 straight fitting G1/4 Zoll OT to 16/10mm...

The connection of EK Water Blocks is for 16/10mm hoses, consists of nickel-plated brass and serves as a compression fitting. It is in the colour silver and comes from the Torque series, which convinces with a simple and timeless design. Originally intended for the EKWB Quantum series, this fitting is also compatible with other EK products.

In this fitting, the union nut serves as a compression ring, which presses the sealing ring onto the hose.

As a small feature, the union nut has a recess under which coloured rings are placed, which provide a bit of individuality and are available separately.

Technical Data:

• Material: Nickel-Plated Brass
• Colour: Silver Nickel
• Supported Tube: 16/10 mm
• Thread: G1/4", male
• Thread Length: 4,5 mm
• Outer Diameter (Fitting): 23 mm
• Installed Height: 19 mm
• Compatible Soft Tubing: PVC, EPDM, Norprene, Silicone and most other flexible tubes
