Alphacool Core RTX 5080 GPU водоблок с задней пластиной

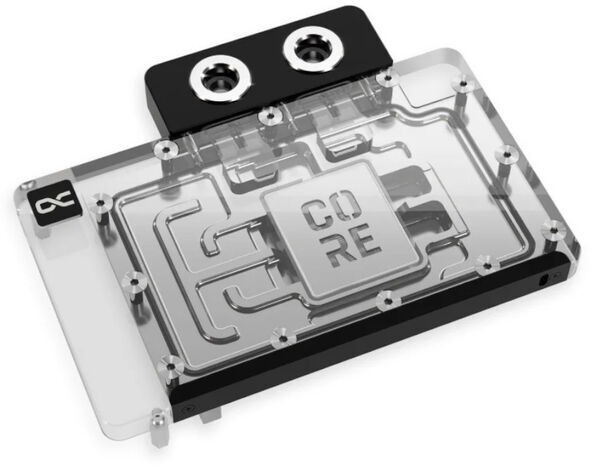

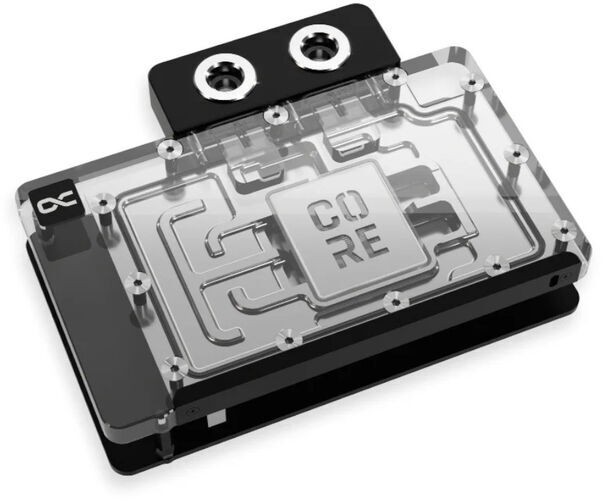

Alphacool introduces its new series of graphics card water coolers for the latest Nvidia GeForce RTX generation. Part of the Core product series, these coolers combine the highest quality with exceptional performance. Thanks to an optimized technical design, these GPU coolers deliver outstanding cooling performance.

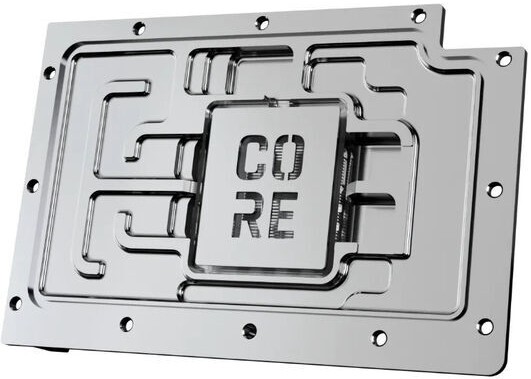

At the heart of the cooler is a copper block, precisely milled from a single piece and complemented by a precisely crafted brass terminal with a nylon cover. A chrome finish enhances the copper cooler’s durability and provides a smoother, more radiant surface than traditional nickel plating.

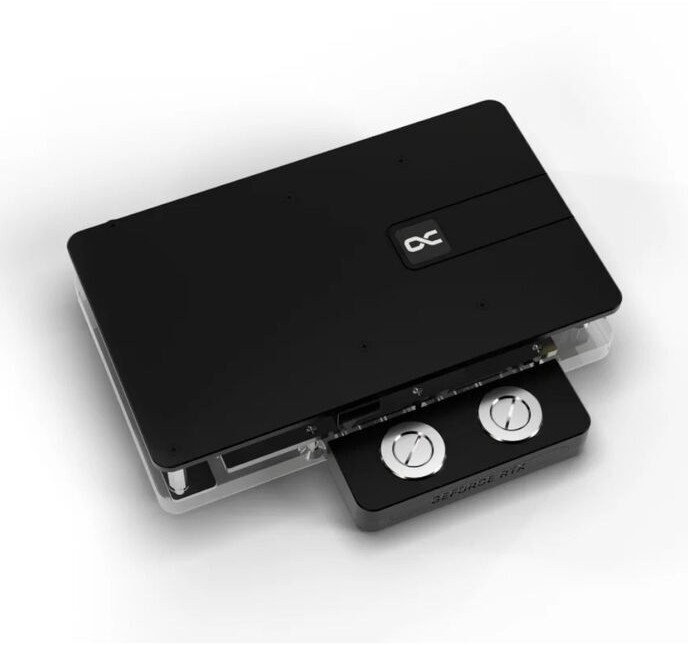

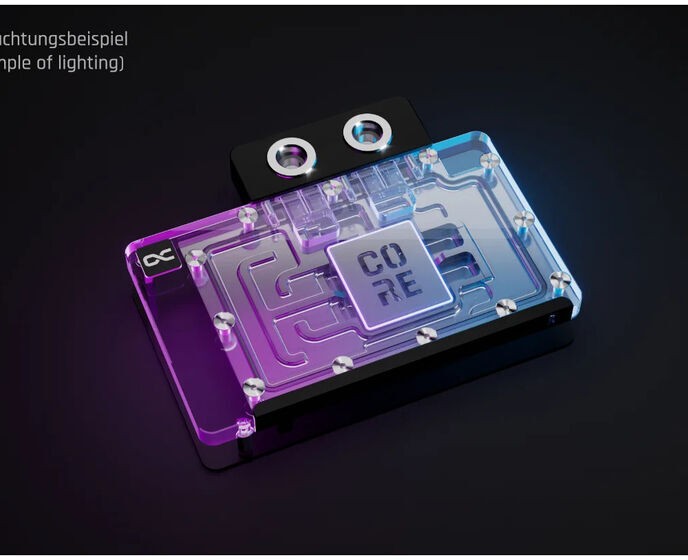

The visual design of the GPU water cooler has been slightly modified. A new highlight is the Core emblem placed above the jetplate, which emphasizes its affiliation with the Core series and visually enhances the design. The series continues to feature high-quality brass connectors that ensure optimal quality and safety. The specially adapted aluminum backplate covers the entire backside of the copper cooler, ensuring a clear and uniform appearance. The acrylic, combined with aRGB lighting, allows for even and impressive illumination of the entire cooler.
The GPU water cooler has been completely overhauled technically. To optimize cooling performance, the distances between the cooler and the components of the PCB were redefined and tested. The water flow was simulated using the most advanced software and verified through practical tests. These extensive tests allowed for improvements to the cooler base and jetplate, ensuring the best possible cooling performance for the new Nvidia GeForce RTX generation.
Compatibility:
- Inno3D Inno3D GeForce RTX™ 5080 iChill Frostbite (C50803-16D7X-1760FB)
- Inno3D Inno3D GeForce RTX™ 5080 iChill X3 (C50803-16D7X-176069H)
- Inno3D Inno3D GeForce RTX™ 5080 X3 (N50803-16D7-176068N)
- Inno3D Inno3D GeForce RTX™ 5080 X3 OC (N50803-16D7X-17603930)
- Inno3D Inno3D GeForce RTX™ 5080 X3 OC White (N50803-16D7X-17605211)
| Technical data cooler | |
| Dimensions total (L x W x H) | 160 x 124,07 x 34,19mm |
| Material cooler | chrome-plated copper |
| Material cooler top | Acrylic |
| Material terminal | Acetal |
| Material Connection thread | Brass |
| Max working temperature | 60°C |
| Pressure tested | 0,8 bar |
| Threads | 4 x G1/4" |
| Thickness cooler bottom | 3,25mm |
| Thickness cooling fins | 0,4mm |
| Distance cooling fins | 0,4mm |
| Illumination | digital aRGB LEDs |
| Power connector digital aRGB LEDs | 3-Pin JST |
| Power digital aRGB LEDs | 5V |
| Number of digital aRGB LEDs | 7 |
| Color | transparent |

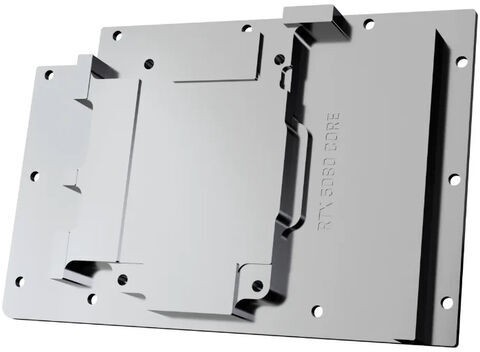

| Technical data backplate | |
| Dimensions (L x W x H) | 160 x 95,36 x 6mm |
| Thickness backplate without spacers | 3mm |
| Material | Aluminium |
Warranty: 3 years
