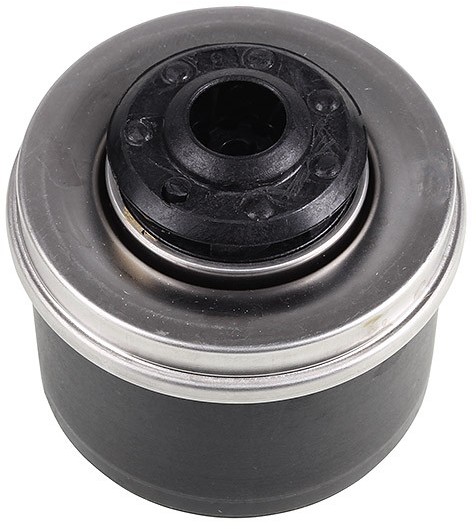

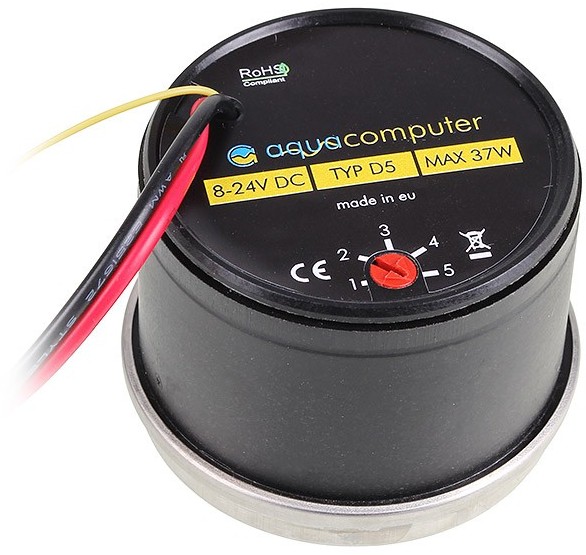

Aquacomputer D5 pump mechanics with speedometer signal
The D5 pump body is the basis for an extremely powerful pump, it just needs to be completed with a suitable enclosure to be used. An electronically commutated ball motor is the basis of this pump and ensires quiet and smooth operation throughout the whole lifespan of the unit.

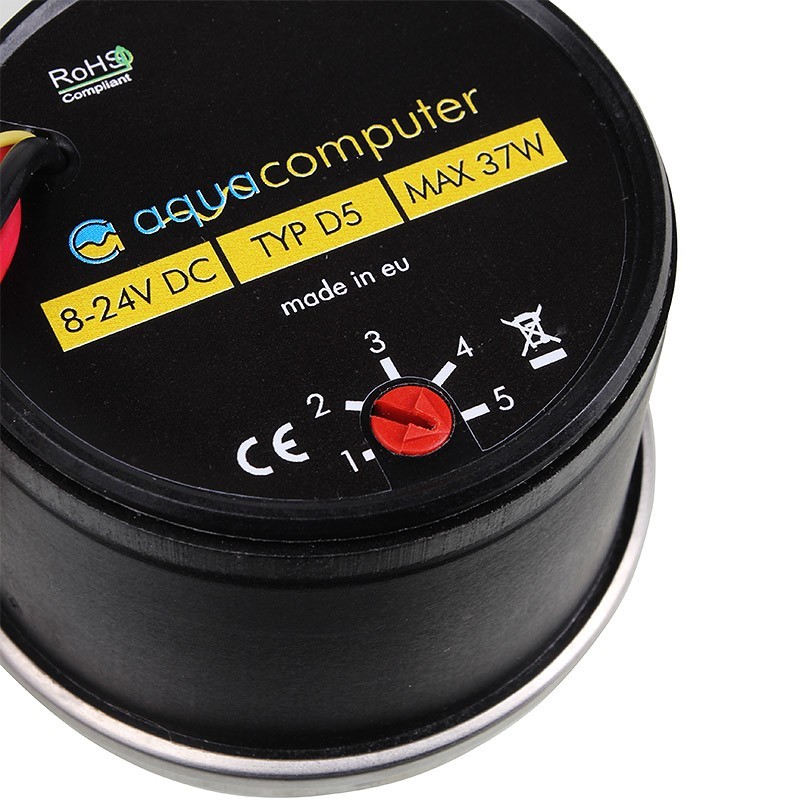

Speed and hence flow rate can be set via a turning knob or via the input voltage. A speed signal for monitoring of the pump's functionality is also available for your needs.
Technical specifications:
Dimensions (Diameter x height): 66x57mm (Without connection cable)
Operating voltage: 8-24V DC
Power consumption: 23W at 12V
Pressure head at 12V: 3.7m H2O

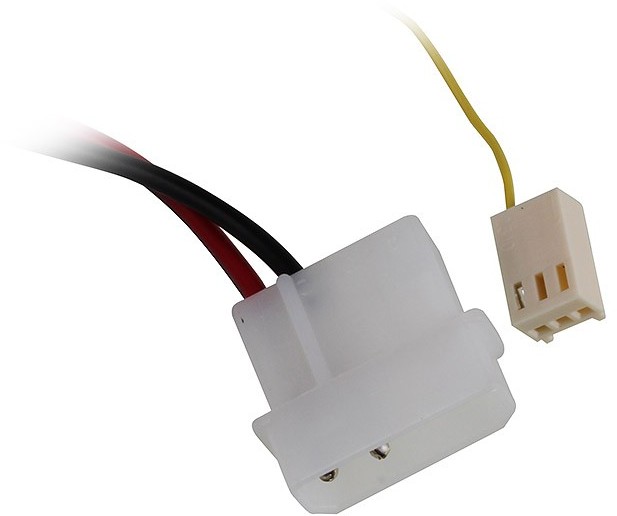

Power supply via 4-Pin Molex power connector, speed signal via separate 3-Pin fan connector
Extent of delivery:
1x Aquacomputer D5 pump body
Please note:
For operation a suitable pump enclosure is needed. The pump electronics are not watertight, they must not come in contact with water under any circumstances - submerged operation is not possible!
