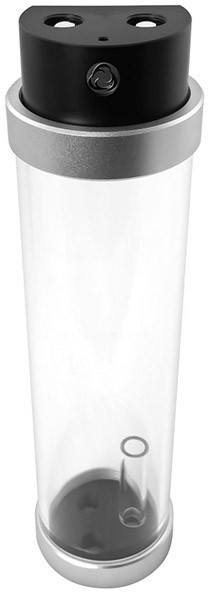

The Protium reservoir from Singularity Computers is a 200mm tube with a diameter of 60mm. Together with the attachments made of acetal and acrylic, the reservoir reaches a height of 239mm. The tube itself is made of acrylic and has a total of seven G1/4" ports.

Technical Data:

• Dimensions: 60 x 60 x 239 mm (L x W x H)
• Diameter: 60 mm
• Material: Acetal (lid, base), Acrylic (reservoir), Aluminium (retention rings)
• Color: Black, Silver, Transparent
• Threads: 7x G1/4"

Scope of Delivery:

• 1x 200 mm acrylic reservoir
• 2x Aluminium retention rings
• 1x 90° quad port cap (bottom)
• 1x Triple port cap (cover)
• 1x 16 mm internal acrylic flow standpipe
• 5x G1/4" stop fittings
• 2x Silicone O-rings
