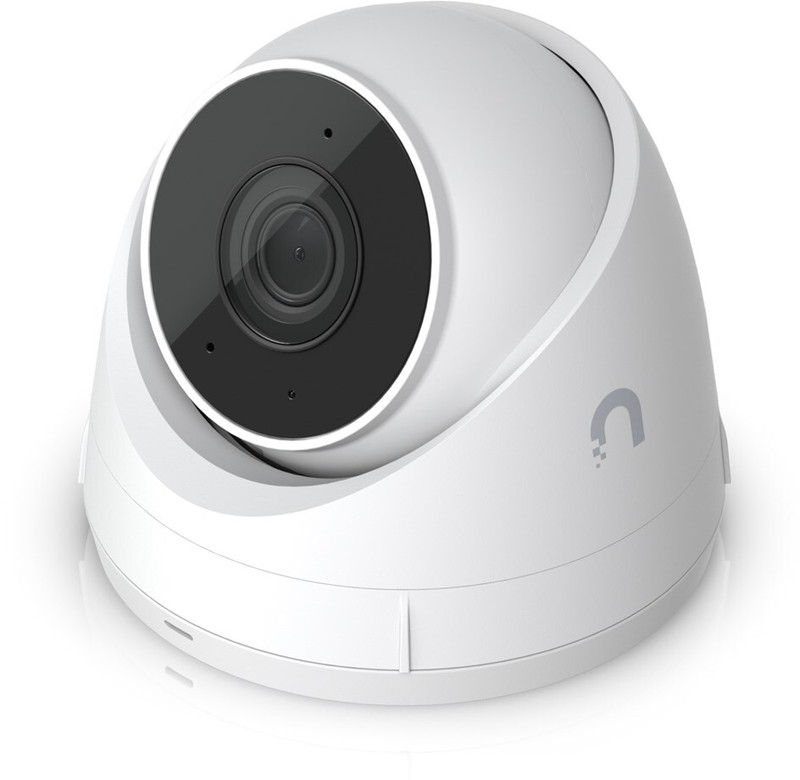

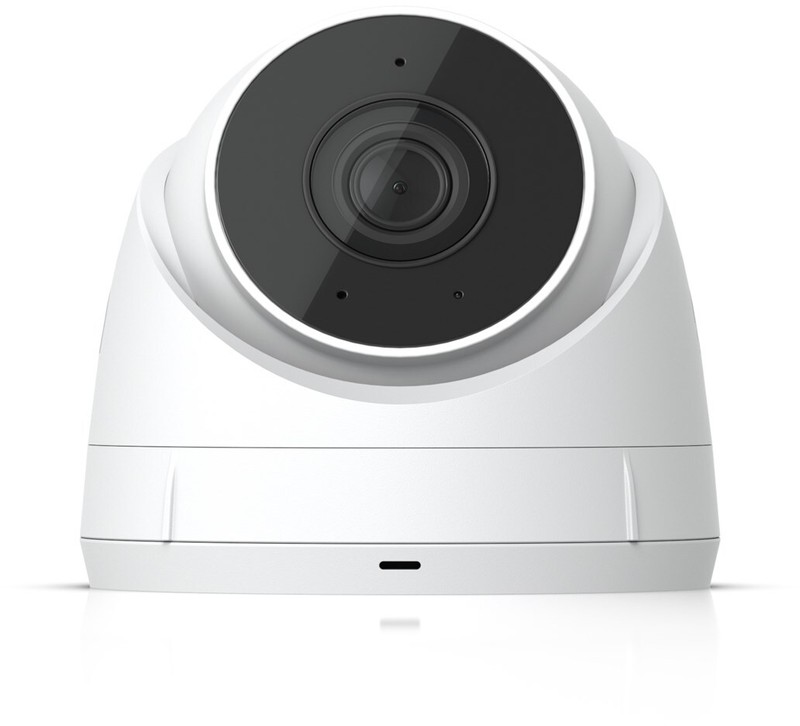

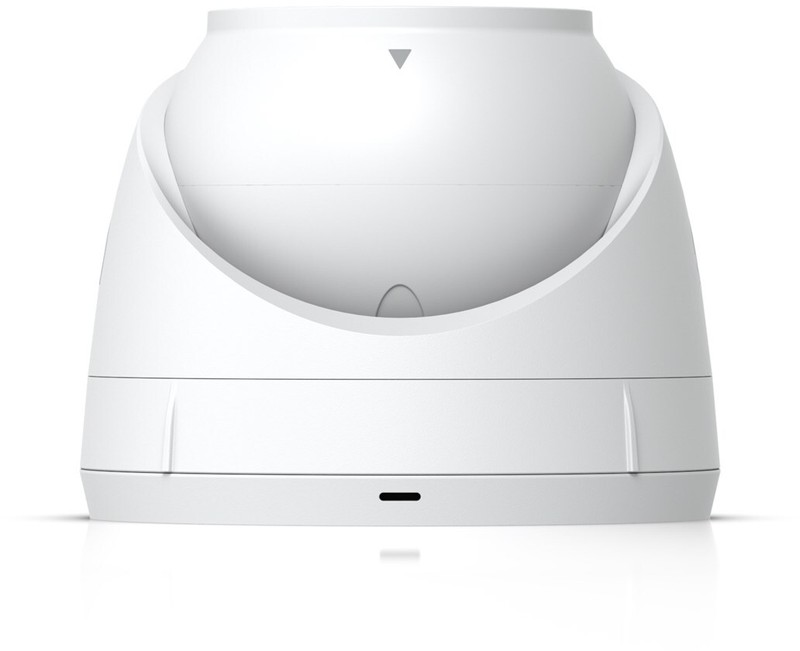

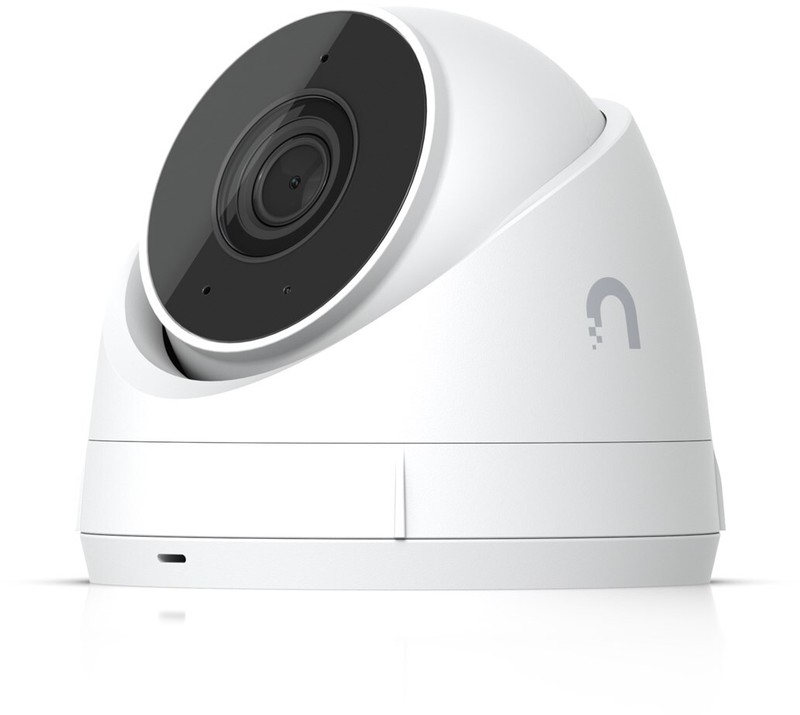

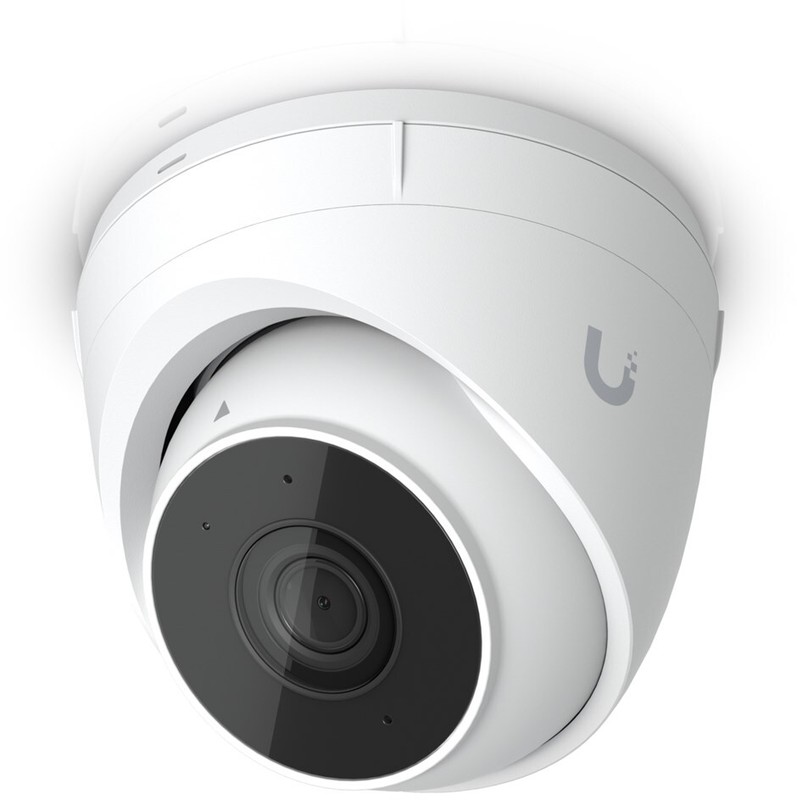

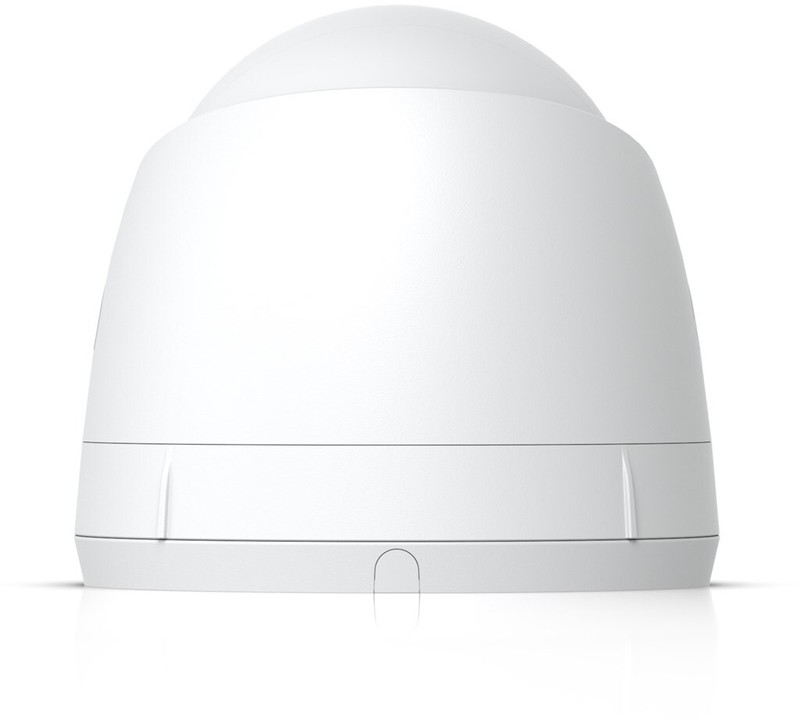

Ubiquiti Wired camera UVC-G5-Turret-Ultra
- Тип камеры: Outdoor
- Разрешение: 2688 x 1512 pixels
- Защита от влаги: IP66
High-Performance 4MP Security Camera with Night Vision and Weatherproof Design
This compact and durable security camera is built for reliability and high performance in a wide range of environments. Offering advanced optics, a robust enclosure, and versatile features, it provides crystal-clear 4MP video resolution with night vision capabilities, making it ideal for both indoor and outdoor surveillance.
Mechanical Specifications:
Dimensions: Ø90 x 71.2 mm (Ø3.5 x 2.8") – a compact size for easy installation.
Weight: 330 g (11.6 oz), lightweight yet durable.
Enclosure Material: Aluminum alloy and UV-stabilized polycarbonate for long-lasting durability.
Weatherproofing: IP66 rating, ensuring protection against dust and water.
Impact Resistance: IK04 rated, making it resistant to physical impact.
Cable Jacket Enclosure Dimensions: Ø20 x 70.6 mm (0.8 x 2.8").
Cable Jacket Materials: Made from thermoplastic elastomer, polycarbonate, and silicone rubber for enhanced durability.
Cable Length: 30 cm (1 ft).
Cable Diameter: 5 mm (0.2").
Cable Jacket Material: Polycarbonate.
Cable Connector Type: RJ45 for secure networking.
Optics and Image Quality:
Sensor: 1/2.4" CMOS sensor for high-quality image capture.
Lens: Fixed focal length offering a wide field of view.
Viewing Angles:
Horizontal: 102.4°
Vertical: 54.9°
Diagonal: 120.6° – providing broad coverage for optimal surveillance.
Night Mode: Equipped with built-in IR LED illumination and an IR cut filter, ensuring clear visibility in low-light conditions.
Video and Image Settings:
Resolution: 4MP (2688 x 1512) in 16:9 aspect ratio for sharp and detailed video.
Max. Frame Rate: 30 FPS for smooth motion capture.
Image Settings: Customizable options including color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, noise reduction by motion, masking, and text overlay for tailored video output.
System and Connectivity:
Processor: Powered by a dual-core Arm® Cortex®-A7 chip for efficient processing.
Networking Interface: 10/100 MbE RJ45 port for reliable wired connectivity.
Max. Power Consumption: 4W, ensuring energy-efficient operation.
Power Method: Powered via PoE (Power over Ethernet).
Supported Voltage Range: 37–57V DC for versatile power options.
LED Indicators: RGB/W LED for easy status monitoring.

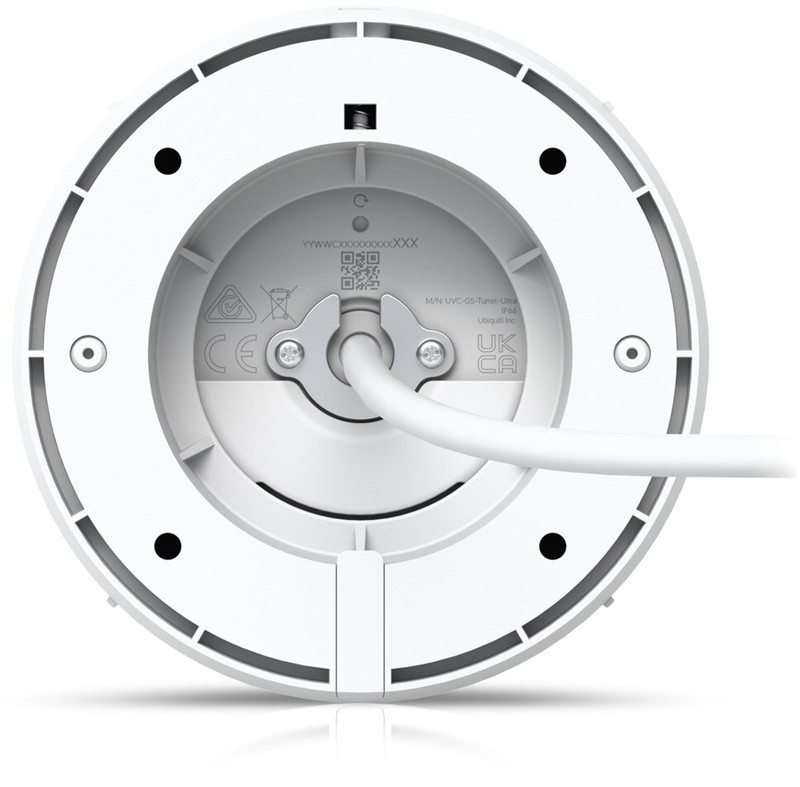

Reset Button: Factory reset option for quick troubleshooting.

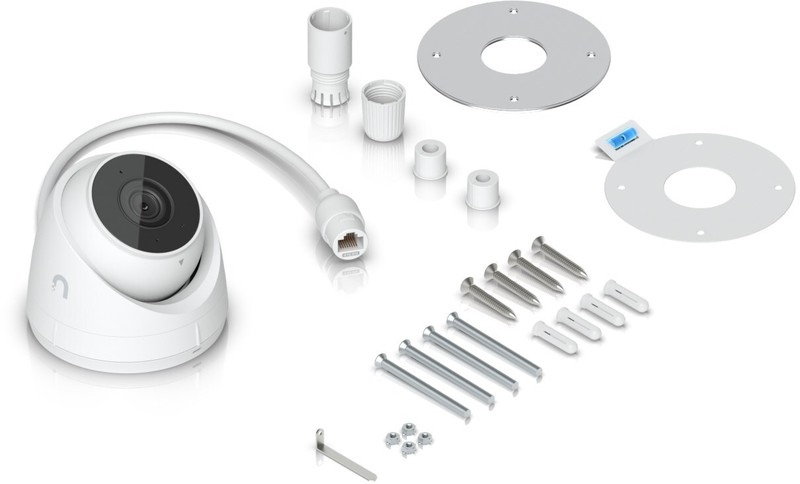

Mounting: Designed for surface mounting, providing easy and secure installation.
Environmental Specifications:
Operating Temperature: -30 to 50º C (-22 to 122º F), capable of operating in extreme temperatures.
Operating Humidity: 0 to 90% noncondensing, suitable for various environmental conditions.
Certifications: FCC, IC, CE certified, ensuring compliance with international standards.
Audio:
Microphone: Built-in microphone for audio monitoring (can be disabled for privacy concerns).
