Контроллер умного дома Shelly 1 Mini Gen3

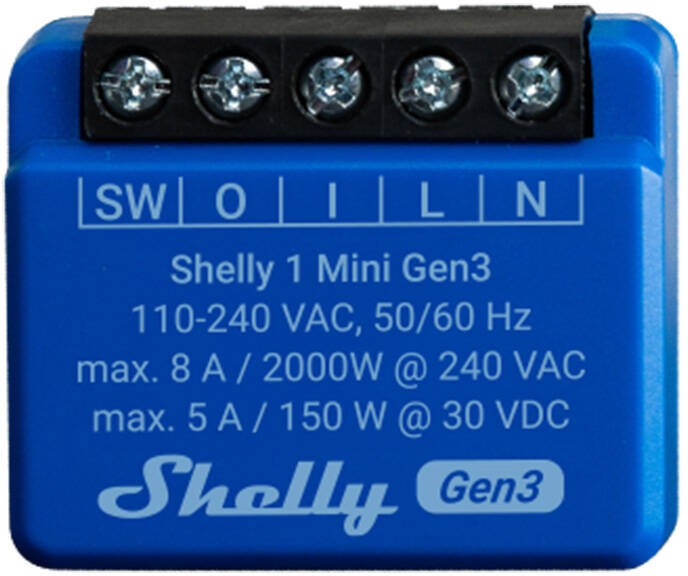

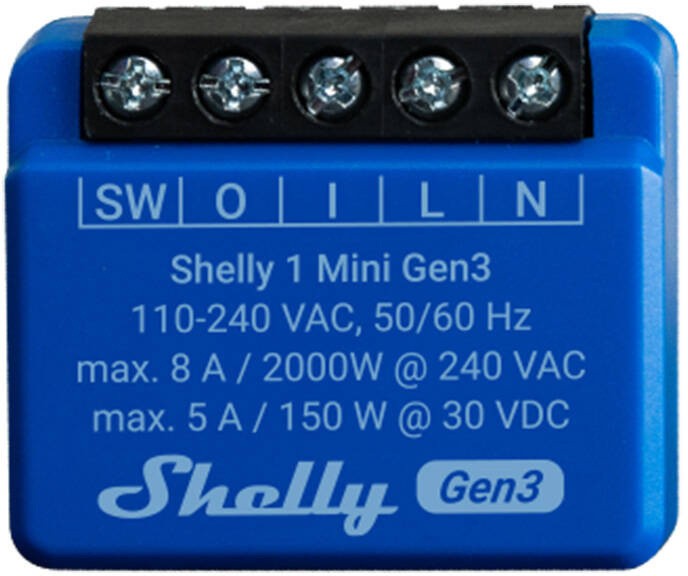

Shelly 1 Mini Gen3 Controller
Discover a new dimension of control in your home with the Shelly 1 Mini Gen3! This small, smart controller offers the ability to remotely control devices right from your smartphone, tablet, computer or home automation system. It is so small that it will fit into standard electrical boxes, outlets, light switches and other space-constrained areas. It is equipped with a more powerful processor and larger memory, resulting in more efficient operation.
Maximum performance in a compact form factor
The Shelly 1 Mini Gen3 is an upgraded version of the popular Shelly Plus 1 Mini, featuring an advanced processor and increased memory. This makes the device run even faster and more reliably. Its compact size allows for easy installation in standard wall boxes, behind electrical outlets or light switches, even where space is limited.
Full control over devices
Controlling appliances is now easier than ever! Turn your appliances on and off remotely, automate their operation and enjoy the convenience that Shelly 1 Mini Gen3 provides, no matter where you are - all you need is an Internet connection. The controller is also compatible with popular home automation platforms, including Amazon Alexa, Google Smart Home and Samsung SmartThings, so you can manage your appliances by voice!
Expand the scope of your network
With the Shelly 1 Mini Gen3, you can also extend the range of your Wi-Fi network for IoT devices. This device acts as a signal booster, picking up Wi-Fi signals and amplifying them to cover a larger area. This ensures that your IoT devices will always stay connected.
Your remote control center
The device supports both Wi-Fi and Bluetooth 4.2, which means it can easily integrate into your existing ecosystem. It also acts as a BLE gateway, allowing communication between Shelly BLU devices and the Shelly ecosystem. What's more, with the ability to monitor humidity and temperature with the Shelly 1 Mini Gen3, you have full control over the environment in your home. You can adjust the parameters to your preferences for maximum comfort.
Integrated solutions
With the ability to create advanced schedules, you can program your electrical appliances to operate exactly as you need them to. Let the lights turn on at a specific time of day, and let the heating adjust to your schedule - Shelly 1 Mini Gen3 is ready to meet your expectations.
| Manufacturer | Shelly |
|---|---|
| Model | 1 Mini Gen3 |
| Power supply | 110 - 240 VAC |
| Relay: | Dry, NO (normally open) contact, 1-pole, micro contact |
| Power consumption | < 1.2 W |
| External protection | B or C circuit breaker characteristics, max. 10 A rated current, min. 6 kA short-circuit current circuit breaker, energy limitation class 3 |
| Max. switching voltage | 240 VAC, 30 VDC |
| Max. switching current | 8 A/240 VAC, 5 A/30 VDC |
| Max. output power | 2000 W/240 VAC, 150 W/30 VDC |
| Internal temperature sensor | Yes |
| Wi-Fi communication protocol | 802.11 b/g/n |
| Wi-Fi range | Up to 30 m indoors and 50 m outdoors |
| Bluetooth wireless communication protocol | 4.2 |
| Bluetooth range | Up to 10 m indoors and 30 m outdoors |
| CPU | ESP-Shelly-C38F |
| Flash | 8 MB |
| Schedules | 20 |
| Webhooks (URL Actions) | 20 with 5 URLs per action |
| Scripts | Yes |
| MQTT | Yes |
| UDP | Yes |
| Advanced scheduling | Yes |
| KVS | Yes |
| Dimensions | 29x34x16 ±0.5 mm |
| Weight | 19 ±1 g |
| Conductor cross section | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded and bootlace type insulation terminations) |
| Length of exposed conductor | 6 to 7 mm |
| Mounting | In a wall box |
| Housing material | Plastic |
| Ambient operating temperature | -20 °C to 40 °C |
| Humidity | 30 % to 70 % RH |
| Maximum altitude. | 2000 m |
