MINI-PC Minis Forum UM890 Pro Ryzen 9 8945HS barebone
Minis Forum UM890 Pro Ryzen 9 8945HS barebone MINI-PC
The Minisforum UM890 Pro is a mini-PC that combines high performance with small size, perfect for both work and entertainment. Equipped with an AMD Ryzen™ 9 8945HS processor with 8 cores and 16 threads, it offers excellent power for performance-intensive tasks such as video editing, gaming and AI-based applications. With a maximum frequency of 5.2 GHz, the device delivers smooth performance even for the most demanding tasks. Note: the device does not include RAM and SSD.
Efficient operation
The UM890 Pro uses a frequency of 5600 MHz, which guarantees fast processing and smooth system operation. In addition, the device features two M.2 PCIe 4.0 SSD slots, allowing for a maximum storage capacity of up to 4 TB. So you can count on lightning-fast data transfers and quick access to files.
Advanced graphics and multi-screen support
The integrated AMD Radeon™ 780M graphics chip supports high-quality entertainment, allowing you to enjoy advanced multimedia and gaming. The mini-PC supports simultaneous connection of up to four screens, ideal for professionals who need an expanded workspace.
Wide range of ports and wireless connectivity

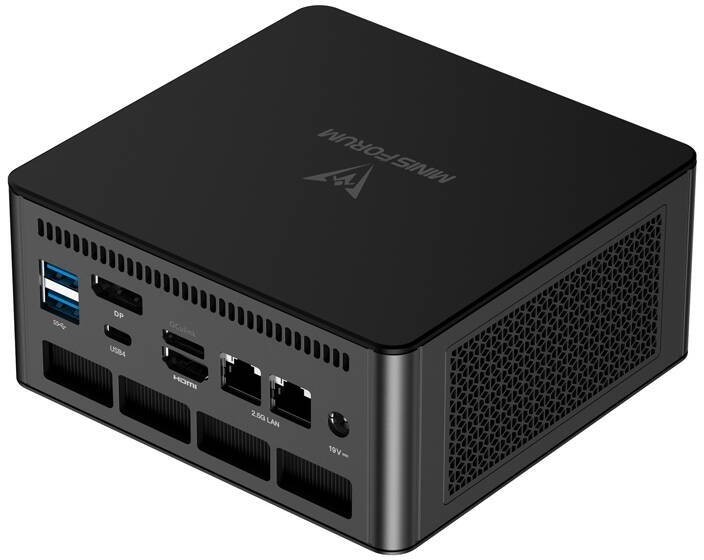

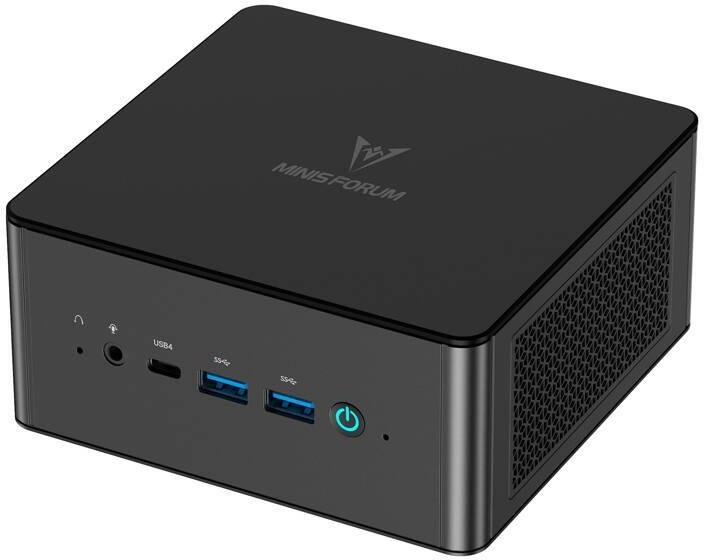

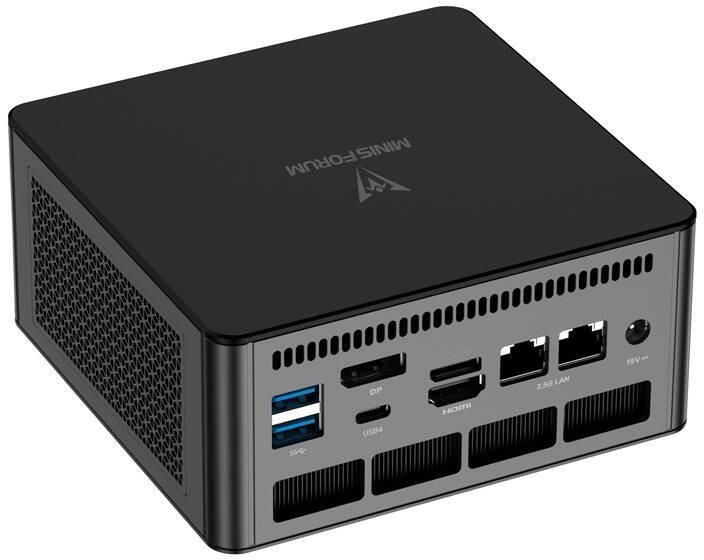

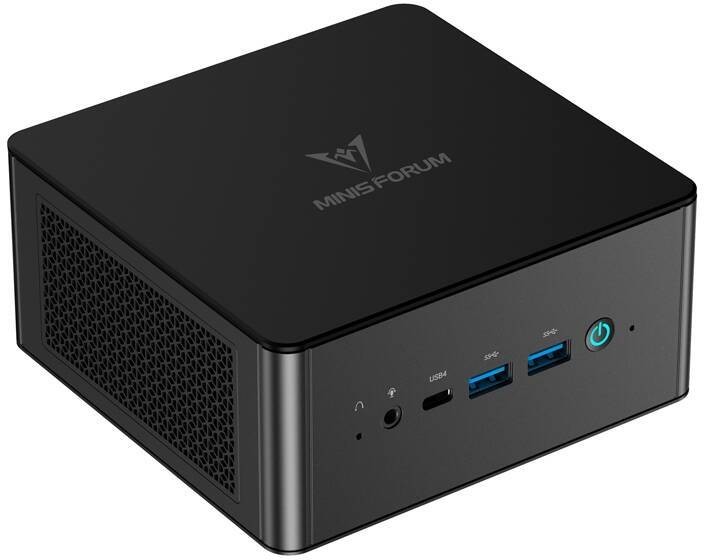

The UM890 Pro Mini-PC offers a wide range of ports, including four USB 3.2, one USB4, two RJ45 2.5G Ethernet, HDMI 2.1, DP1.4 and audio jacks. With support for WiFi 6E and Bluetooth 5.3, the device provides a stable and fast connection to the Internet and other devices.
Efficient cooling and robust design
The advanced Cold Wave 2.0 cooling system using liquid metal and active cooling for RAM and SSD ensures stable operation even under heavy load, while minimizing noise. With VESA mount compatibility, the mini-PC can be easily mounted on the wall or on the back of a monitor, saving desktop space.
| Manufacturer | Minisforum |
|---|---|
| Model | UM890 Pro |
| Processor | AMD Ryzen™ 9 8945HS |
| Architecture | Zen 4 |
| Number of cores | 8 |
| Number of threads | 16 |
| Base frequency | 4.0 GHz |
| Maximum frequency | 5.2 GHz |
| Processor technology | TSMC 4nm FinFET |
| RAM | 0 |
| Frequency | 5600 MHz |
| Maximum RAM capacity | 96 GB |
| SSD type | M.2 2280 PCIe 4.0 |
| Number of SSD slots | 2 |
| SSD | 0 |
| Maximum SSD capacity | 4 TB |
| Graphics card | AMD Radeon™ 780M |
| Connectivity | M.2 2230 (WiFi 6E, Bluetooth 5.3) |

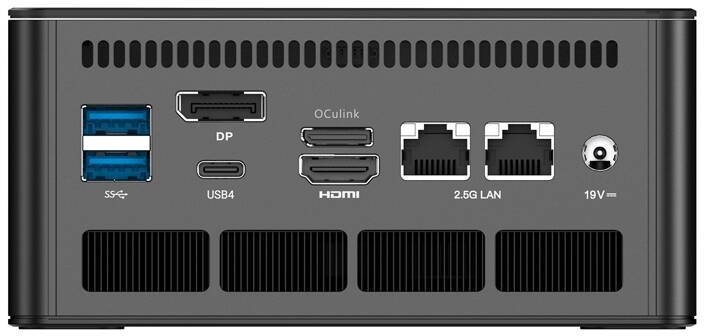

| Ports | RJ45 (2.5G Ethernet) x2; USB3.2 Gen2 Type-A x4; USB4 x2 (Alt PD); HDMI 2.1 x1; DP1.4 x1; Oculink Port x1; Headphone jack (Audio Jack) x1; DMIC x1 |
| Operating system | none |
| Cooling | Cold Wave 2.0 (liquid metal + active cooling for RAM and SSD) |
| Mounting | Compatible with VESA mount |
| Power supply | 19V/6.32A |
