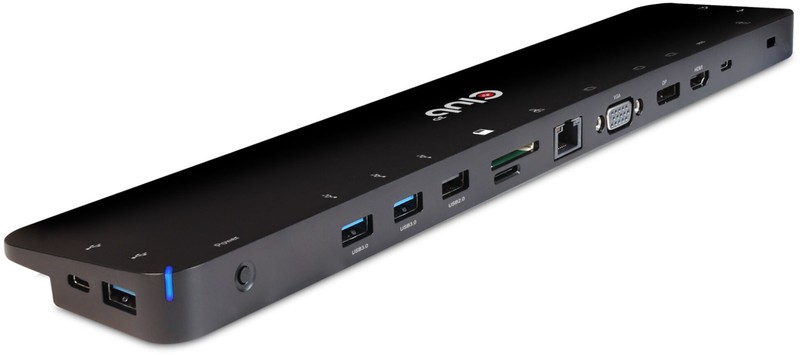

CLUB 3D USB 3.2 Gen1 Docking Station
Club 3d
Tootekood: CSV-1564W100
Hind
148.60 €
Kuumakse
7.00 € / kuumakse alates
USB Type C 3.2 Gen1 Triple Display Dynamic PD Charging Dock 100W PD Power charger

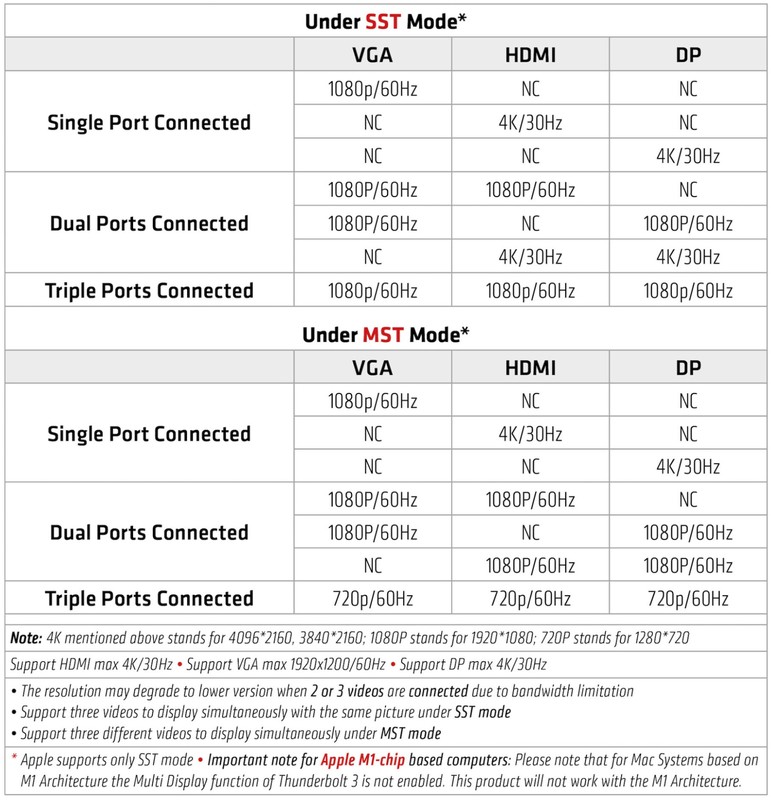

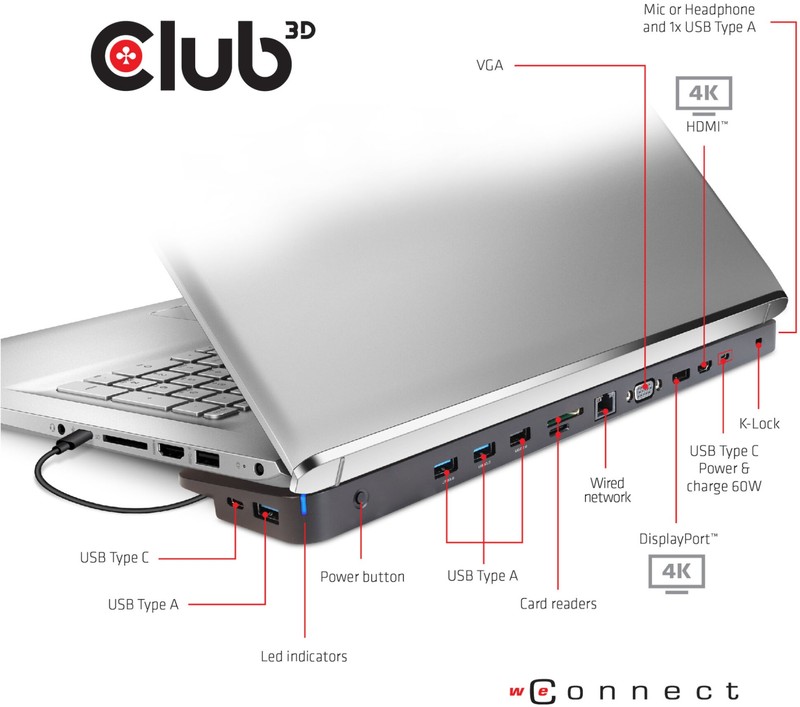

CSV-1564W100 - The Club-3D USB 3.2 Gen1 C Triple Display Dynamic PD Charging Dock is an integrated solution combining Video, Data, Power, Ethernet and Audio especially for frequent travelers. The Three different Video ports(HDMI™, DisplayPort™, VGA) allow you to enjoy 3 different images or videos on 3 different displays simultaneously under MST mode. The USB Type A ports and USB Type C data port allow you to connect multiple USB devices to the host. The USB Type C charging port allows you to provide power for this Dock and can charge the host PC at the same time by connecting a PD power Adapter, no need to carry your Notebooks Power Supply.
So in general the user is travelling lighter. The Micro SD and SD/MMC ports allow you to read information in the memory card onto the host. The 3.5mm audio port allows enjoying music of the host via a headset. Besides, with the Gigabit Ethernet port, you can enjoy high speed Ethernet on the host. It supports all DP Alt mode supported hosts. (PC, laptop, mobile phone, etc.) Dynamic Current Detection and Power Distribution, the product no longer intercepts the fixed power from the external PD Power Supply, but intercepts it according to the actual power consumed by itself, so that the PC can be dynamically charged more power.
For Video Signal the source device needs to support DisplayPort™ Alt Mode.
Features:
• Supports DP Alt Mode and PD 3.0
• Supports max. 5Gbps data transmission on the USB 3.2 Gen1 Type C ports
• One USB 3.2 Gen1 Type C Data port
• One USB 3.2 Gen1 Type C port supports PD charging with max 100W (20V/5A) Bundled with 100W Power Supply (for Notebooks with current consumption up to 100W)

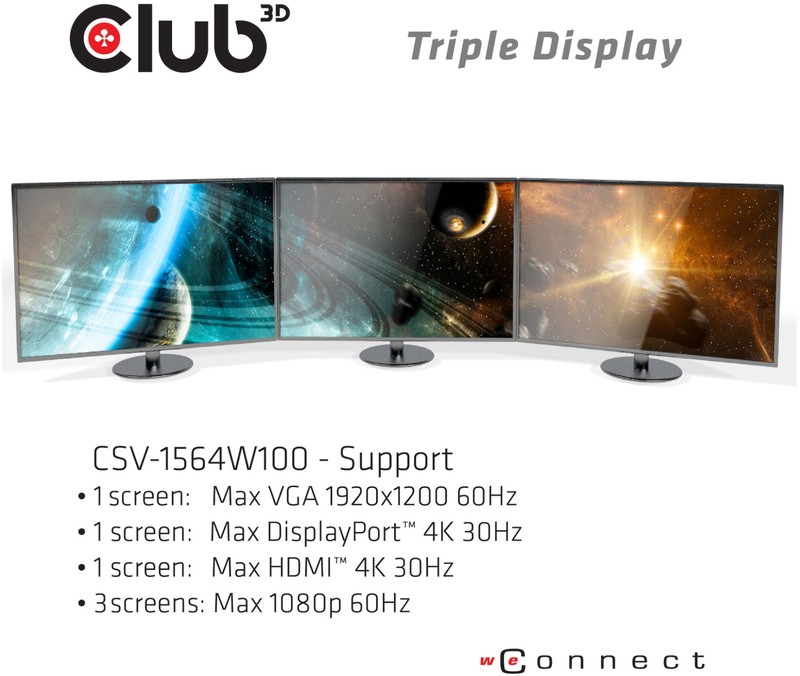

• HDMI™ max. 4K30 Hz
• DP™ max. 4K30 Hz
• VGA max. 1920x1200 60Hz
CSV-1564W100 - The Club-3D USB 3.2 Gen1 C Triple Display Dynamic PD Charging Dock is an integrated solution combining Video, Data, Power, Ethernet and Audio especially for frequent travelers. The Three different Video ports(HDMI™, DisplayPort™, VGA) allow you to enjoy 3 different images or videos on 3 different displays simultaneously under MST mode. The USB Type A ports and USB Type C data port allow you to connect multiple USB devices to the host. The USB Type C charging port allows you to provide power for this Dock and can charge the host PC at the same time by connecting a PD power Adapter, no need to carry your Notebooks Power Supply.
So in general the user is travelling lighter. The Micro SD and SD/MMC ports allow you to read information in the memory card onto the host. The 3.5mm audio port allows enjoying music of the host via a headset. Besides, with the Gigabit Ethernet port, you can enjoy high speed Ethernet on the host. It supports all DP Alt mode supported hosts. (PC, laptop, mobile phone, etc.) Dynamic Current Detection and Power Distribution, the product no longer intercepts the fixed power from the external PD Power Supply, but intercepts it according to the actual power consumed by itself, so that the PC can be dynamically charged more power.
For Video Signal the source device needs to support DisplayPort™ Alt Mode.
Features:
• Supports DP Alt Mode and PD 3.0
• Supports max. 5Gbps data transmission on the USB 3.2 Gen1 Type C ports
• One USB 3.2 Gen1 Type C Data port
• One USB 3.2 Gen1 Type C port supports PD charging with max 100W (20V/5A) Bundled with 100W Power Supply (for Notebooks with current consumption up to 100W)
• HDMI™ max. 4K30 Hz
• DP™ max. 4K30 Hz
• VGA max. 1920x1200 60Hz
Täpsema info saamiseks võta ühendust klienditeenindusega e-maili või vestlusakna vahendusel.
Toode on ainult tellitav
Toodet ei ole hetkel esindustes saadaval.
Kiire tarne
Võimalik tellida:
Tellimine esindusse 1-4 tööpäeva.4 tk
