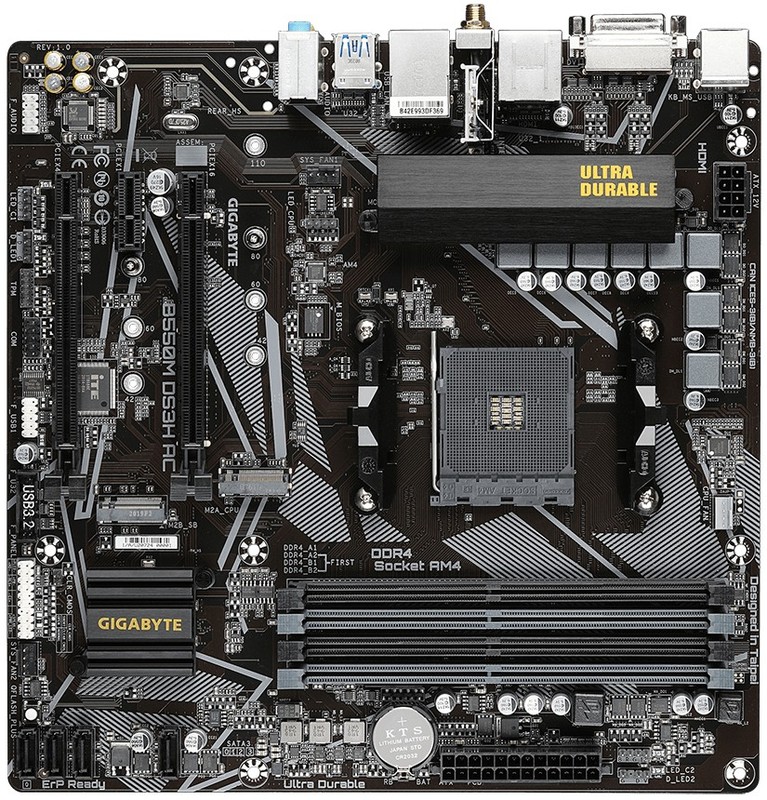

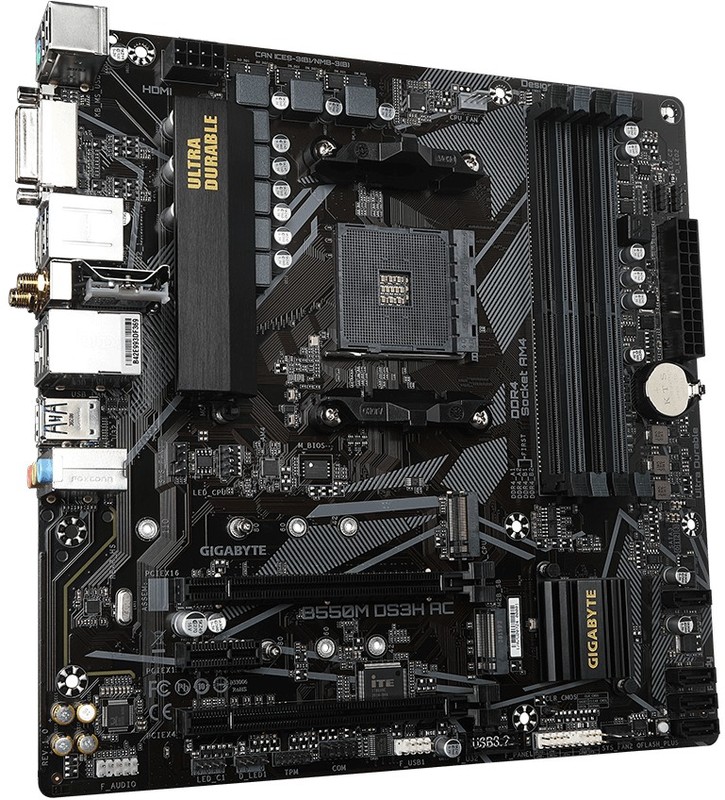

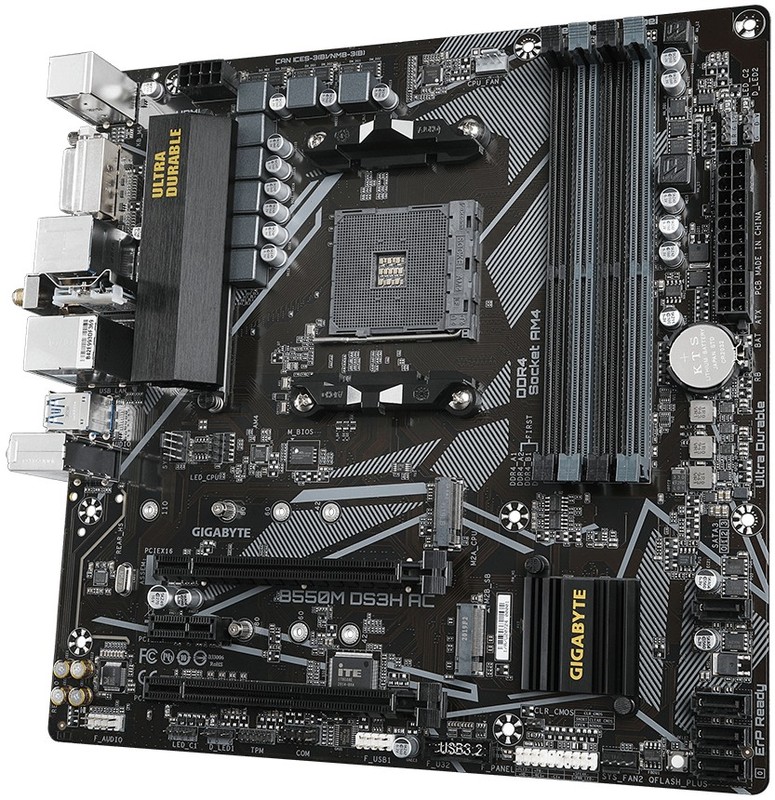

GIGABYTE B550M DS3H AC WIFI AM4 DDR4 Emaplaat
GIGABYTE
Tootekood: B550MDS3HAC
- Kiibistik: AMD B550
- Sokkel: SAM4
- Standard: Micro ATX
- Mälu tugi: DDR4
Hind
103.70 €
Kuumakse
7.00 € / kuumakse alates
AMD B550 Ultra Durable Motherboard with Pure Digital VRM, PCIe 4.0 x16, Dual PCIe 4.0/3.0 M.2, Intel Dual Band 802.11ac WIFI, Realtek GbE LAN, Smart Fan 5 with FAN STOP
- Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series
- Dual Channel ECC/Non-ECC DDR4 Unbuffered Memory, 4 DIMMs
- 5+3 phase pure digital VRM with low RDS(on) MOSFETs.
- x16 slot ready for Ultra Durable PCIe 4.0
- Dual ultra-fast NVMe PCIe 4.0/3.0 M.2 slots
- Built-in Intel Dual Band 802.11ac & BT 4.2 Wireless with WIFI Antenna
- High-quality audio capacitors and a noise shield ensure the highest sound quality
- Realtek GbE LAN with bandwidth management
- Support HDMI and DVI on the back
- Smart Fan 5 includes multiple temperature sensors, hybrid fan connectors with FAN STOP function
- Designing anti-sulphur resistors
Tehnilised andmed
Kiibistik:AMD B550
Sokkel:SAM4
Kujutegur:Micro ATX
Toetatud mälutüüp:DDR4
Mälupesade arv:4
Mälukiirus:3200 MHz; 2933; 2133 MHz; 3600 MHz; 4000 MHz; 4400 MHz; 3733 MHz; 3466 MHz; 3866 MHz; 4133 MHz; 4266 MHz; 4600 MHz; 4733 MHz; 3400 MHz; 2400 MHz; 2667 MHz
Bluetooth4.2
Laiendus
PCI-E 4.0 16x:1
PCI-E 3.0 1x: 1
PCI-E 3.0 4x1
M.2:2

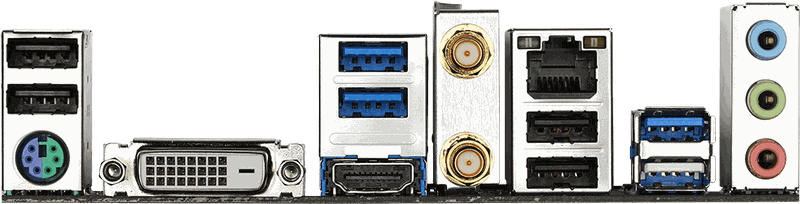

Sisendid ja Väljundid:
USB 3.24x USB 3.2 A TÜÜP
USB 2.04x USB A Tüüp
DP1
DVI1x DVI
HDMI1x HDMI
RJ451x RJ45
Audio Port3; 3 3
PS/21
Lisainfo
TootjagarantiiG36; G24
Toode on ainult tellitav
Toodet ei ole hetkel esindustes saadaval.
Võimalik tellida:
Tellimine esindusse 4-8 tööpäeva.12 tk
