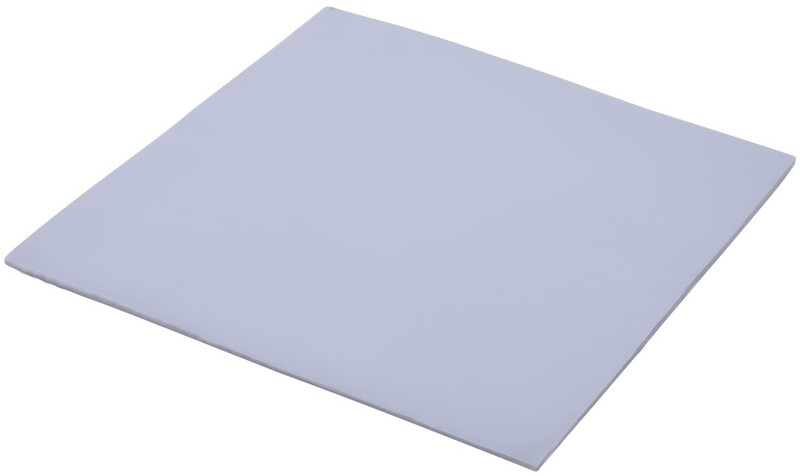

Alphacool Eisschicht thermal pad - 17W/mK 100x100x1,5mm
- Mõõtmed: 100x100 mm
- Paksus: 1.5 mm
Alphacool's ultimate solution for cooling your computer with a layer of ice. Not a layer of ice in the traditional sense made of frozen water, but a layer that will freeze any chip. The properties of the new thermal pads speak for themselves.
With up to 17 W/mk, the pads outperform all previous thermal pads and pastes! All hardware components can now be installed easily and cleanly using thermal pads!
The "Alphacool ice layer" offers all the advantages and typical properties of a thermal pad: self-adhesive, elastic, adaptable and much more! The area of application is just as versatile, whether for RAM and mainboard coolers or graphics card and CPU coolers, wherever the circuit board meets the heat sink, the Alphacool ice layer is a good choice.
The pads are available in different power levels, 11, 14 and 17W/mk, each available in 0.5mm, 1mm and 1.5mm thickness to perfectly compensate for height differences. Each thickness is also available in 100x100mm and 120x20mm (suitable for RAM coolers). These can be easily separated with scissors to individually adjust the right size for each component.
| Technical data | |
| Dimensions (L x W x H) | 100 x 100 x 1,5mm |
| Thermal conductivity | 17W/mK |
| Thickness | 1,5mm |
| Flame retardant | V-0 (UL94) |
| Useful temperature | -40 ~ +150 °C |
| Hardness | 72 (Shore OO) |
| Specific gravity | 3.2 |
| Breakdown voltage | 10 kV/mm |
| Elongation | 40 % |
| Tensile strength | 0.5 MPa |
| Volume resistivity | 1.0x10^11 Ohm-m |
| Fastening | slightly adhesive |
| Color | grey |
