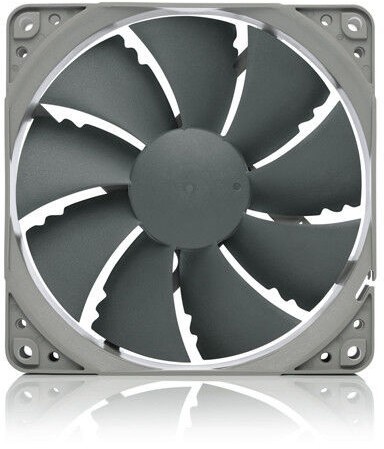

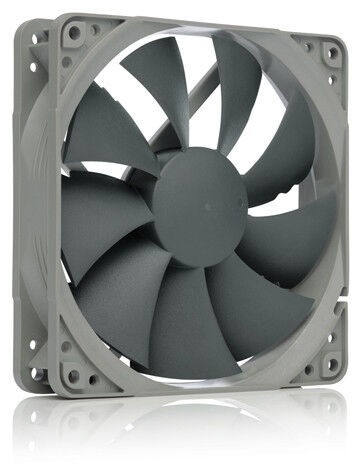

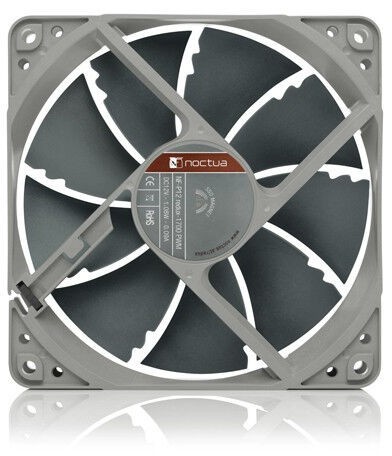

Noctua NF-P12 redux-1700 PWM Fan 120mm
- Diameeter: 120 mm
- Ühendus: 4-pin
Specifically designed for pressure demanding applications such as CPU or radiator cooling, the classic NF-P12 is a long-standing favourite among enthusiast users around the world and helped to found Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components.
The new redux edition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-P12 premium fan. Its industry grade SSO bearing, over 150.000 hours MTTF rating and full 6 years manufacturer’s warranty make the NF-P12 redux a proven premium choice that provides trusted Noctua quality at an attractive price point. The performance-oriented top speed of the 1700rpm PWM version is ideal for high efficiency case, radiator and CPU cooling as well as other applications that require both extended performance headroom and PWM for automatic speed control.
Technical Data:
- Dimensions: 120 x 120 x 25 mm
- Mounting hole spacing: 105 x 105 mm
- Connector & pin-configuration: 4-Pin PWM
- Cable length: 40cm
- Bearing: SSO-Bearing

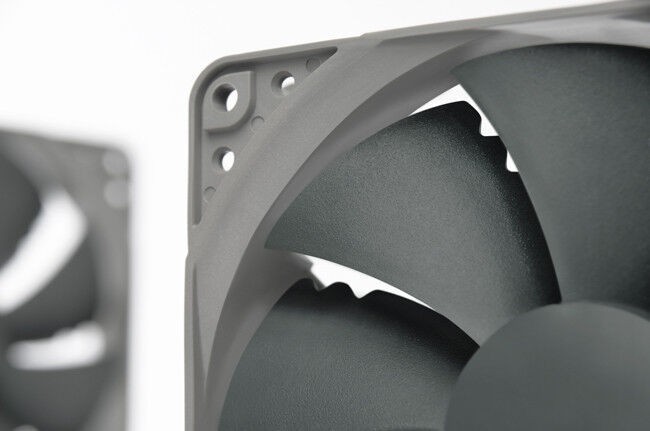

- Blade geometry: Pressure-optimized Nine Blade Design with Vortex-Control Notches
- Rotational speed (+/- 10%): 1700 RPM
- Min. rotational speed (PWM, +/-20%): 450 RPM
- Airflow: 120,2 m³/h
- Acoustical noise: 25,1 dB(A)
- Static pressure: 2,83 mm H₂O
- Max. input power: 1,08 W
- Max. input current: 0,09 A
- Operating voltage: 12 V
- MTTF: > 150.000 h
- Warranty: 6 years

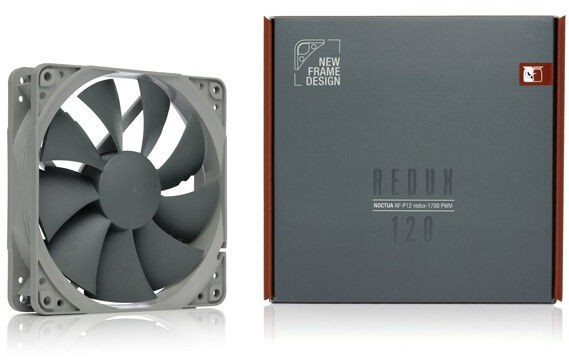

Scope of delivery
- Fan screws
