Lian Li LANCOOL 216 RGB E-ATX Korpus - Must
- CPU<: 180.5 mm
- GPU<: 39.2 cm
- Värvus: Must
- Korpuse tüüp: Midi Tower
The LANCOOL 216 RGB E-ATX Mid Tower Case by Lian Li is a high-airflow computer case designed to support E-ATX motherboards up to 280mm in length. It features specially designed 160mm fans at the front, and two I/O locations on the front panel. The case also supports full-size GPUs up to 392mm and has an adjustable motherboard position for two cooling modes. The LANCOOL 216 is optimized for maximum airflow and is also adjustable for cable management and fan routing.
- Mid-tower chassis configurable for air cooling and water cooling
- Airflow optimized front, top and PSU shroud side mesh panels
- Equipped with 2 x front 160 PWM fans (ARGB or non-RGB) and 1 x rear 140mm PWM fan
- Supports 360 radiator at the top, front and a maximum of 10 fans
- Includes rear PCIe fan bracket
- Front I/O that can be relocated to the bottom
- Extensive cable management solution
LANCOOL 216 AIRFLOW FOCUS
The LANCOOL 216 is a mainstream case that features all-around mesh panels for optimal airflow. Thanks to its modular rear panel, it can be optimized for air cooling or water cooling. It includes 2 x 160mm and 1 x 140mm pre-installed PWM fans and an innovative rear PCIe fan bracket to maximize airflow.
- AIR COOLING AND WATER COOLING OPTIMIZED
- ALL-AROUND MESH DESIGN
- ROTATABLE REAR I/O
- UP TO 6 SSD OR 4 SDD + 2 HDD
- MODULAR DESIGN
- INCLUDE 2 x 160mm AND 1 x 140mm PWM FAN
- CABLE MANAGEMENT FRIENDLY
- ADDITIONAL ARGB FRONT I/O (OPTIONAL)
CONTINUOUS FRONT TO TOP MESH
To ensure adequate airflow is provided to the system, the LANCOOL 216 features mesh at the front, top, and on the PSU shroud’s side*. The front mesh extends to the top for a continuous mesh panel.

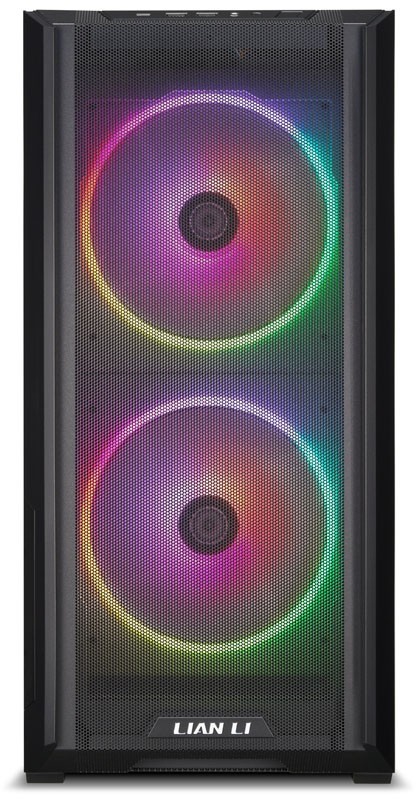

2 x 160MM FRONT FANS AND 1 X 140MM REAR FAN INCLUDED
LANCOOL 216 RGB FANS
The included 160mm ARGB fans feature two channels of LEDs (one on the outer rim of the fan, another at the shaft of the fan blades) that can be controlled separately via an optional accessory, or via the motherboard lighting software by connecting them directly to a motherboard 5V 3pin header.
Located in the second chamber behind the motherboard, a SATA-powered fan hub can support up to 4x ARGB and PWM fans.

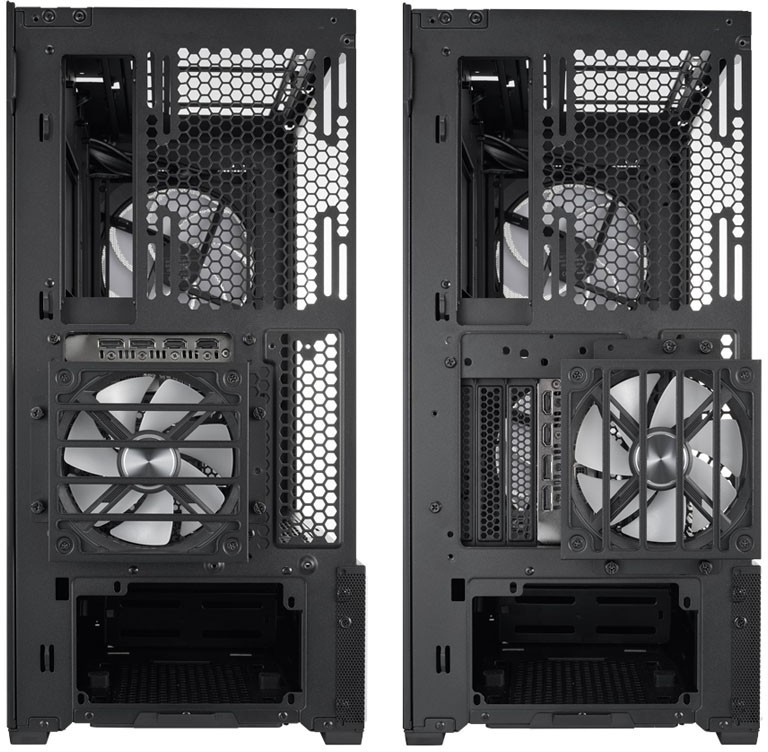

AIR COOLING MODE / WATER COOLING MODE
The modular motherboard I/O allow users to move the motherboard to a higher position which is more favorable for air-cooled systems, or a lower position for water-cooled systems.
AIR COOLING
Set higher, the motherboard leaves room above the PSU shroud for wider fans.
WATER COOLING
Set lower, the motherboard leaves a 63mm thick gap at the top to install radiator/fan combos, ideal for AIOs or custom water

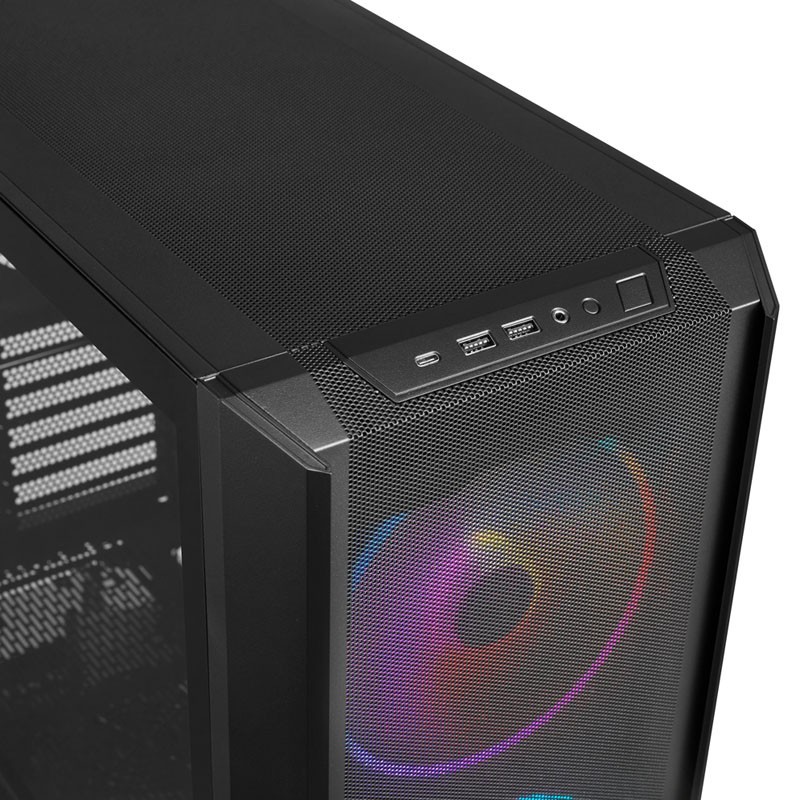

FRONT I/O CAN BE RELOCATED
Including a power button, reset button, audio port, 2x USB3.0 ports, and a USB Type C port, the front I/O module can be relocated to the lower left side of the front panel.
HARDWARE COMPATIBILITY
The LANCOOL 216 supports ATX, Micro-ATX, MINI-ITX motherboards, and E-ATX under 280mm in width (when the grommet bar is flipped 180°). In addition, thanks to its symmetrical design, cable management in the 2nd chamber remains unaffected.
LATEST GEN. GPU READY
With enough room for graphics cards up to 392mm in length, and 180mm in height (for air cooling mode), the LANCOOL 216 is compatible with even the largest NVIDIA 4000 series cards.
PRESSURE LEAK FREE
Pre-installed at the front of the top radiator bracket, a seal plate ensures no pressure leak is created when installing smaller than a 360 radiator/3x120mm fans at the top.
REMOVEABLE TOP RADIATOR BRACKET
The top mounting bracket can be completely removed from the case for easier hardware installation. The bracket comes off with the left side frame bar to provide optimal clearance.
Two grooves have been implemented to allow easy passage of fan cables into the second chamber of the case, simplifying cable management and making the overall look of the build better.
PCIE FAN BRACKET
The GPU placed at the top of the expansion slots in air cooling mode opens up the possibility to add a 120mm fan at the rear of the case without obstructing the GPU I/O. This is also possible with a vertically mounted GPU in both air-cooled and water-cooled mode. The additional 120mm fan provides better cooling for the GPU and a greater intake/exhaust balance for the system.
STORAGE
UP TO 6 x SSD + 2 X HDD STORAGE CAPACITY
A total of 2 x 3.5” + 6 x 2.5” drives can be installed with dedicated mounts for storage.
CABLE MANAGEMENT
The LANCOOL 216 offers multiple options for easy cable management. Along the cable grommet bar, 3 large velcro straps can hold 2 different sets of cables. 3 small clips are located along the rear side panel, ideal for cleanly routing the CPU 8pin cable, and 2 additional velcro straps are located near the PSU chamber to help hold down the extra PSU cable length away from the ventilation path in the bottom chamber.
| Parameter | Specification |
|---|---|
| Dimensions | (D) 480.9mm x (W) 235mm x (H) 491.7mm |
| Material | Steel / 4.0mm Tempered Glass |
| Motherboard Support | E-ATX (under 280mm width) / ATX / Micro-ATX / Mini-ITX |
| Fan Support |
Top: 3 × 120mm or 2 × 140mm PSU Cover: 2 × 120mm or 2 × 140mm (Air Cooling mode) Front: 3 × 120mm / 2 × 140mm / 2 × 160mm Rear: 1 × 140mm (Not compatible with UNI FAN SL-INF 140) PCIe Fan Bracket: 1 × 120mm |
| Radiator Support |
Front: 360mm / 280mm / 240mm Top: 360mm / 280mm / 240mm Bottom: 240mm |
| PSU Length | ATX (Under 220mm) |
| GPU Length Clearance | 392mm |
| CPU Cooler Height Clearance | 180.5mm |
| Drive |
Drive Cage: 2 × 2.5" SSD + 2 × 3.5" HDD PSU Cover: 2 × 2.5" SSD Behind MB Tray: 2 × 2.5" SSD |
| Expansion Slot | 7 |
| I/O Ports |
1 × Power Button 1 × Reset Button 2 × USB 3.0 1 × USB Type C 1 × Audio Fan Rim Lighting Effect Color Button Fan Rim Lighting Effect Mode Button |
| Included Fans |
Front: 2 × 160mm ARGB Fans Rear: 1 × 140mm PWM Fan |
| Dust Filters | 1 × Bottom |
Füüsilised andmed
- Karastatud klaas
- Plastik
- Metall
Ühenduvus
Kettasahtlid
Ventilaatoritugi:
- 1
- 120
- 2
- 140 mm
