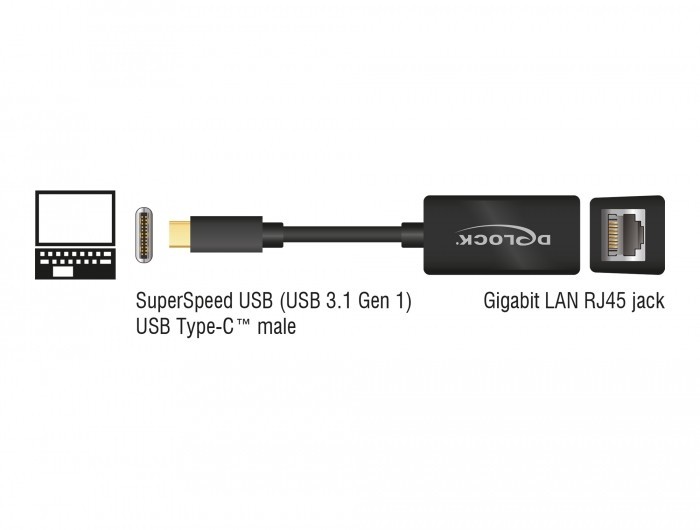

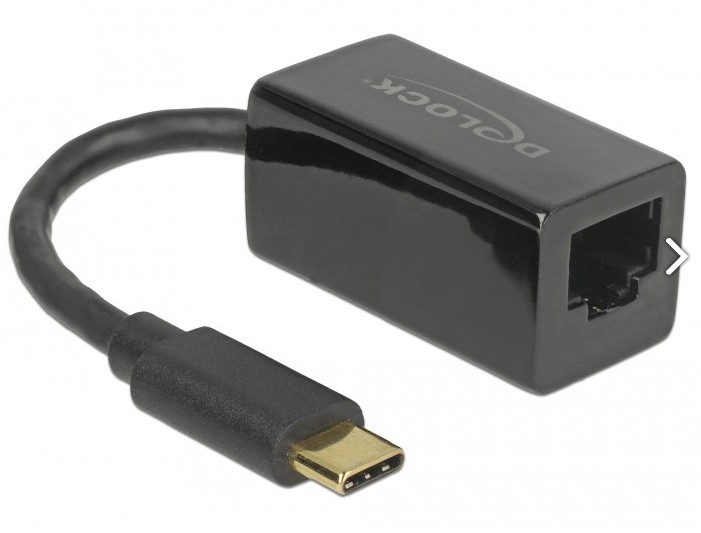

The adapter by Delock expands a PC or laptop by one network interface via the USB Type-C™ interface. In addition, the adapter can also be operated on a Thunderbolt™ 3 interface.

Specification

Connectors:

• 1 x USB 5 Gbps USB Type-C™ male
• 1 x Gigabit LAN RJ45 jack
• Chipset: Realtek RTL8153
• SuperSpeed USB - 5 Gbps specification
• Data transfer rate:
• Ethernet up to 10 Mbps (Half/Full Duplex)
• Fast Ethernet up to 100 Mbps (Half/Full Duplex)
• Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
• Compatible with:
• IEEE 802.3: 10BASE-T
• IEEE 802.3u: 100BASE-TX
• IEEE 802.3ab: 1000BASE-T
• Supports Auto MDI-X (automatic detection of standard or crossover network cable)
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Support full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure flow control
• Supports 9k Jumbo Frames
• Downwards compatible to USB 2.0
• LED indicator for link and activity
• USB bus powered
• Colour: black
• Cable length incl. connectors: ca. 12.7 cm
