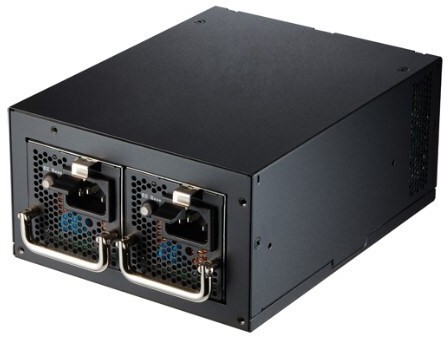

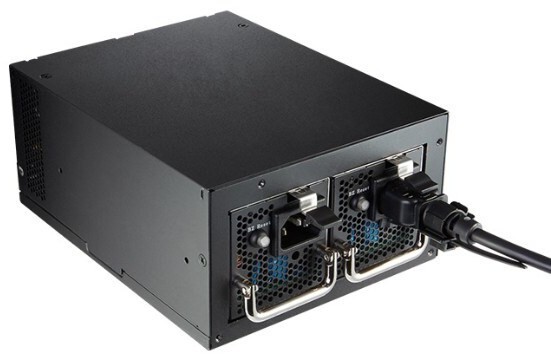

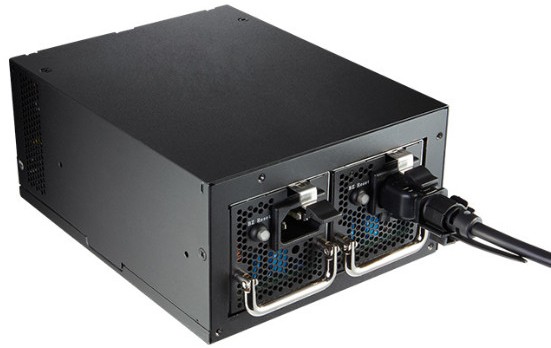

FSP Fortron/Source Twins PPA7004601 700W, ATX12V, redundant
- Võimsus: 700 W
- Kujutegur: ATX
- Redundant ATX power supply
- 700 watts nominal power for components
- With 80-PLUS Gold certificate for absolute efficiency
- 40mm fan with double ball bearing
- Replaceable modules
- Ideal for home, mail, and web server systems
- With intelligent monitoring software for surveillance
ATX power supply for server systems
The ATX power supply Twins Pro from FSP is a power supply in ATX / PS/2 standard without front-end bracket and therefore the perfect choice for your home cloud server, mail server, and web server. It has a nominal power of 700 Watts to supply all components with sufficient power.
Additionally, the power supply has an 80-PLUS Gold certificate. At a 50% load, it achieves an efficiency of up to 90%. This results in less heat, less fan noise, and higher reliability.

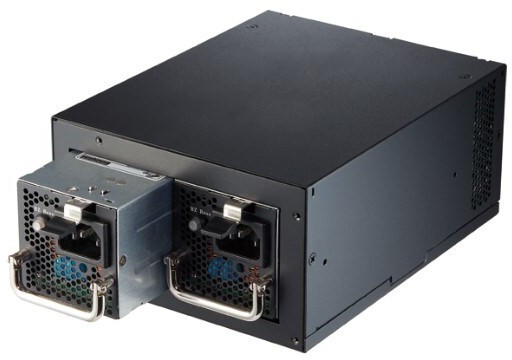

Hot-swap capable modules
What sets this power supply apart is that it is redundant. It has two individual modules, both hot-swappable. The power load is distributed, reducing noise and increasing efficiency. If one module fails, the other module takes over the full load until the defective module is replaced. This can be done while the system is running, avoiding any system downtime.

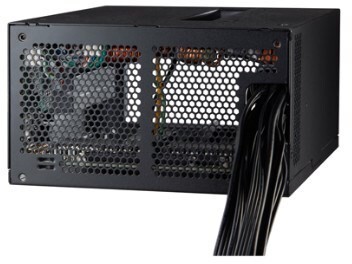

Cable management and software
The simple cable management helps with heat dissipation, extending the lifespan of the components installed. It also saves space in the case. In addition to the standard connections, it also has a USB 2.0 header, through which you can synchronise the FSP Guardian Software with your power supply. With this program, you can monitor power consumption, efficiency, power output, temperature, and other internal records in real-time.
Specification
Colour: Black
Dimensions: 150 x 86 x 190 mm (W x H x D)
Fan: 40 mmf80-PLUS Gold certificate.
Power: 700 Watts
Efficiency: 80 PLUS Gold Certificate
Connections:
- 1x 20 / 24-Pin
- 2x 4 / 8-Pin ATX12V
- 4x 6 / 8-Pin PCIe
- 6x SATA
- 2x IDE
- 1x Floppy
- USB 2.0 Header
