EK Waterblocks EK-Quantum Velocity² D-RGB - AM5, Nickel + Acryl
EK Water Blocks Quantum Line EK-Quantum Velocity² D-RGB, AM5, Nickel Aceta
This socket-specific EK-Quantum Velocity² water block is specifically designed for AMD® AM5 socket and Ryzen 7000 series CPUs. It is based on an award-winning, market-recognized platform that has won the IF Design Award, European Hardware Award, CES Innovation Award, and several other performance evaluation awards. With a revolutionary "clean-front" design with no visible mounting screws, Velocity² water blocks are on their way to outshine their predecessors and take over the market leadership.

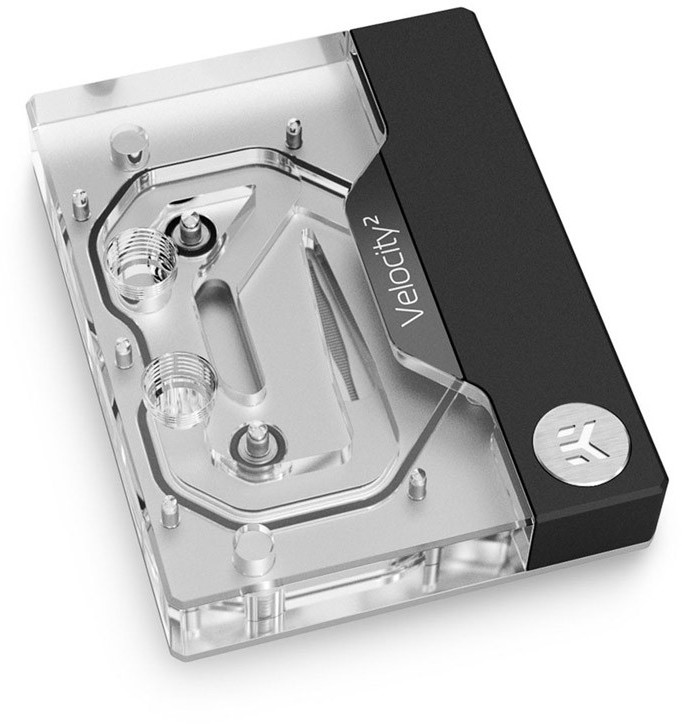

The EK-Quantum Velocity² D-RGB - AM5 Nickel + Acetal is a high performance, premium quality CPU water block for the AMD AM5 socket platform. It features a next-generation socket-specific cooling engine tailored to the IHS and chip layout of Ryzen 7000 series CPUs. This CPU water block is EK-Matrix7 compatible and mounts via the patented EK Exact Mount system.
Socket-specific cooling motor
Velocity² integrates a socket-specific motor with low hydraulic flow restriction and high performance cooling, achieved through a combination of mounting pressure and cold plate geometry tailored to the AMD AM5 socket's IHS and chip layout. The machined cold plate is precision-crafted to effectively cover the IHS and apply optimal pressure to the die area. An asymmetric nozzle plate cutout also directs flow to the areas where it is needed most. Velocity² series water blocks cover the entire socket while complying with socket guidelines for mounting pressure and socket protection zones.
EK-ExactMount
Due to the integrated, robust standard backplate included with AM5 motherboards, the patented EK-ExactMount mounting system has been redesigned for an even easier installation process. The end result is an even more user-friendly and "invisible" mounting mechanism, as the entire mounting system is located inside the water block and it is now a true one-piece product. The backplate is factory mounted on the motherboard and the spring-loaded Torx screws are integrated into the water block and are screwed into the motherboard's stock backplate by turning it counterclockwise.
EK-ExactMount
The integrated mounting screws feature a hard-stop design so that the block is perfectly mounted and tightened once the screws reach the end of the thread. This eliminates the risk of over-tightening the water block and potentially damaging your motherboard and/or CPU.
Material and production of water blocks

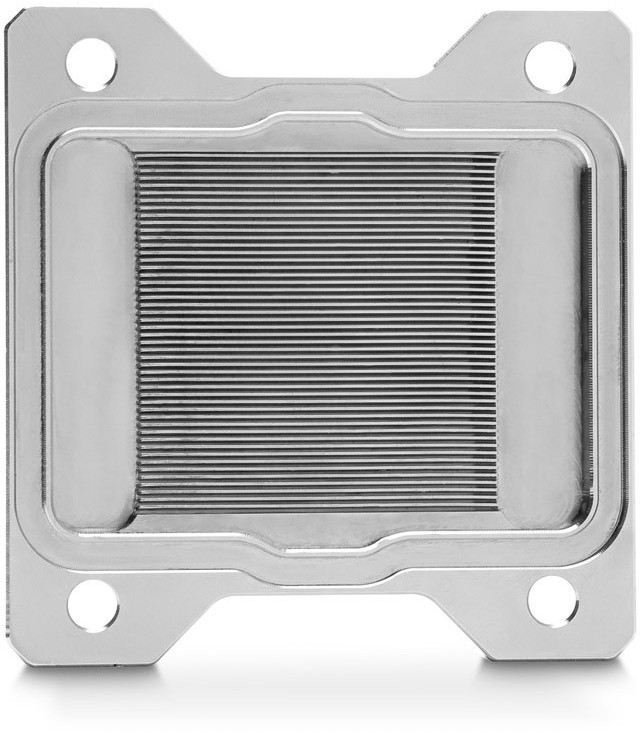

The cold plate is made from the highest quality 99.99% pure electrolytic copper, precision machined to ensure the best possible contact and heat transfer, and then nickel plated. This version of the water block features a nickel plated cold plate with a CNC machined durable black POM acetal.

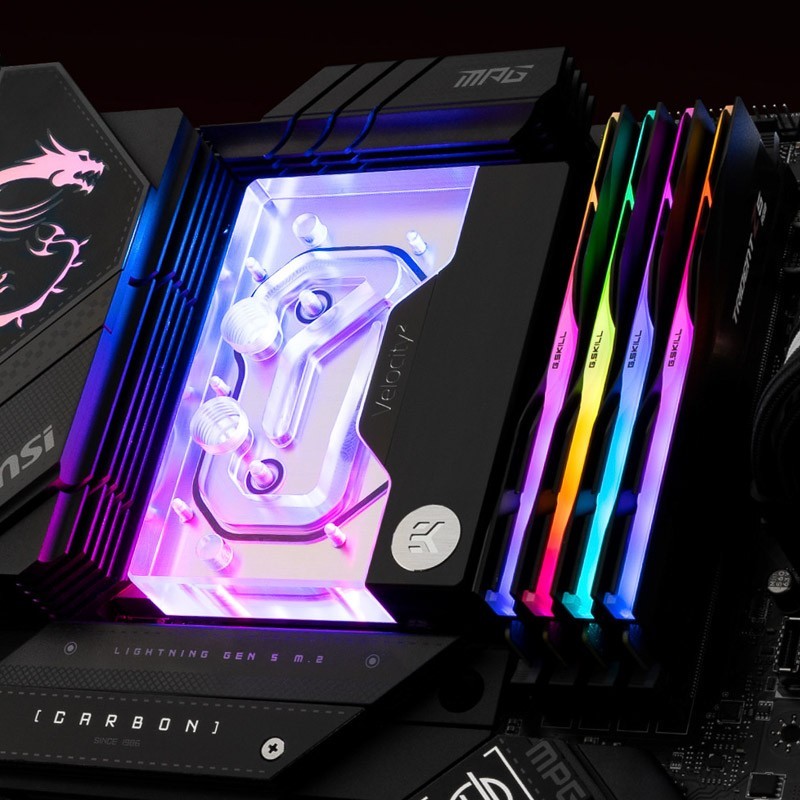

EK-Quantum Velocity² D-RGB LED lighting
This product is compatible with all common addressable RGB synchronization technologies from all major motherboard manufacturers. The arrow mark on the 3-pin D-RGB LED connector must be aligned with the +5V mark on the D-RGB header. A total of 17 addressable RGB LEDs are hidden under the protruding part that acts as a diffuser.
Winning prestigious awards at great speed
We shouldn't forget to mention that our Velocity² products have taken home five prestigious awards so far. Their performance, innovative design and bold approach to developing water cooling solutions have ensured that this product line gets the recognition it deserves. Awards for Velocity² products include iF Design, European Hardware Awards, CES 22 and others.
Technical specifications:
- D-RGB cable length: 50 cm
- D-RGB Connector: 3-pin 5V Digital LED Header (Pinout: +5V | Digital | Block | Ground)
- Dimensions: (LxHxW) – 89 x 113.5 x 34 mm
CPU socket compatibility:
- AMD AM5
Included:
- EK-Quantum Velocity² CPU water block
- Torx T7 key
- Thermal paste EK-Loop Thermal Paste NGP
Made in Slovenia – Europe!
