EK Water Blocks EK-Pro GPU WB RTX A5500 - Nickel + Inox
EK-Pro GPU WB RTX A5500 – Nickel + Inox: High-Performance Water Block for Professional Workstations

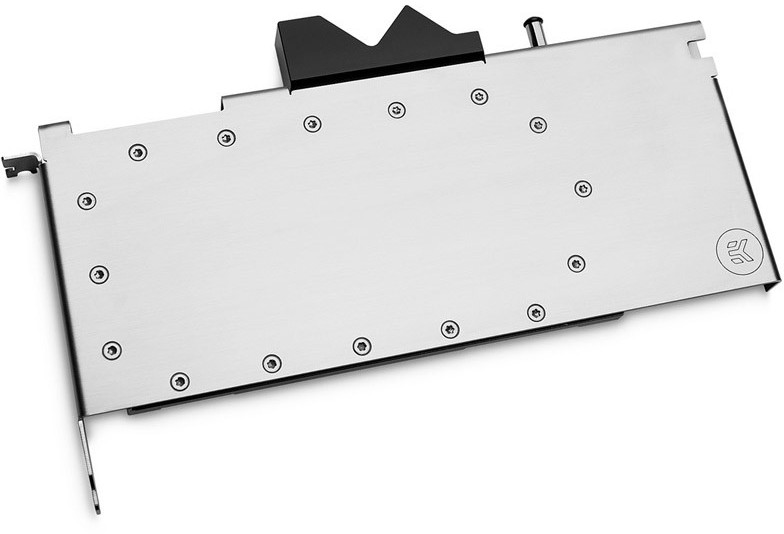

The EK-Pro GPU WB RTX A5500 – Nickel + Inox is a high-performance full-cover water block designed specifically for the NVIDIA RTX™ A5500 graphics card. It spans the entire length of the GPU and directly cools all critical components, including the GPU core, VRAM, and VRM, enabling efficient heat dissipation and transforming the card into a compact single-slot solution – ideal for dense workstation and server environments.
Superior Cooling Efficiency – Optimized for Multi-GPU Systems
Featuring the proven Open Split-Flow cooling engine, this water block delivers exceptional thermal performance with minimal hydraulic restriction. It is perfectly suited for use with low-powered or slow-speed pumps, making it a top choice for multi-GPU setups. The finely tuned jet plate and fin structure ensure optimal coolant flow distribution – even in reversed flow scenarios.
Industrial-Grade Materials for Professional Demands

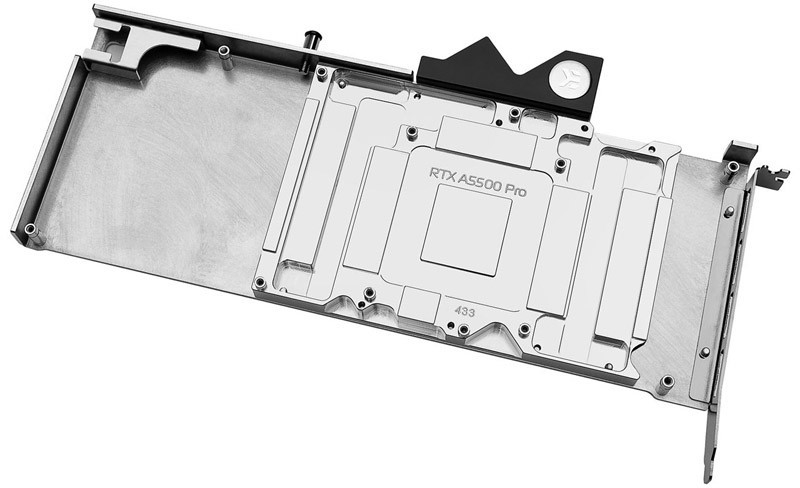

The base is CNC-machined from nickel-plated electrolytic copper, while the top is crafted from industry-grade stainless steel (Inox) for maximum durability. An integrated PCIe power connector bracket ensures a secure and stable connection. High-quality EPDM O-rings provide a reliable seal, and pre-installed brass standoffs make for a safe and straightforward installation process.
Compact, Space-Saving Design with Smart Features

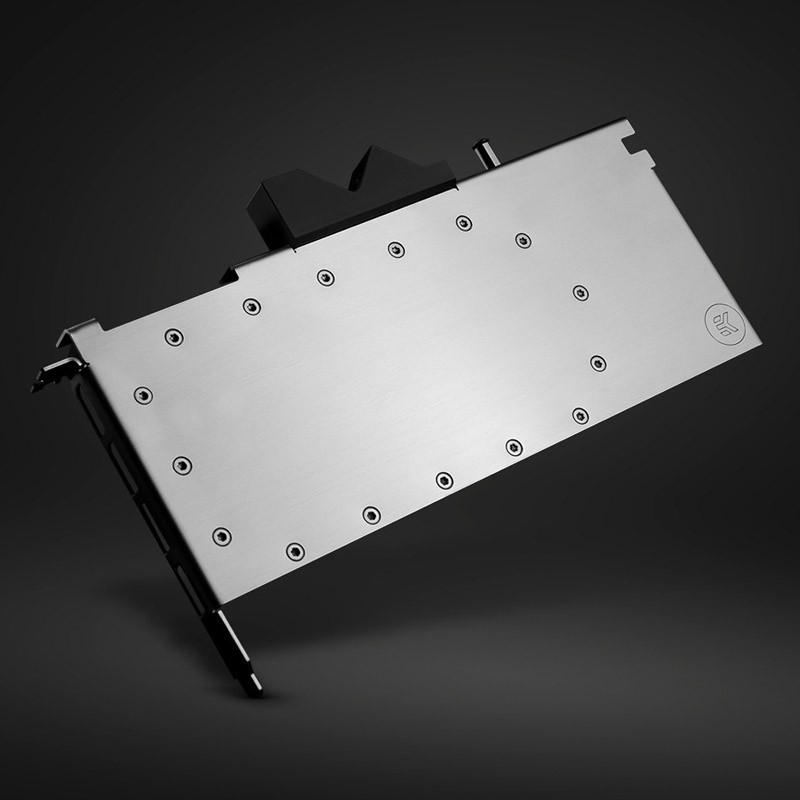

The integrated single-slot I/O bracket replaces the stock shield and adds mechanical rigidity – a critical benefit for compact systems where PCIe slot space is limited. The included retention backplate enhances the GPU’s appearance and structural integrity, while also passively cooling the rear VRM section. Cutouts in the top and backplate make the block fully NVLink-compatible.
A POM-machined 45° angled terminal block with two G1/4” ports enables easy integration with EK-Pro QDC kits and manifolds. A side-mounted standoff provides additional support for GPU braces, ensuring the GPU remains secure during transport or chassis movement.
Scope of Delivery:
- EK-Pro GPU WB RTX A5500 – Nickel + Inox Water Block
- Retention backplate
- Mounting mechanism with screw-in brass standoffs
- Required screws, nuts, and washers
- Thermal interface material
Technical Specifications:
- Dimensions (L x H x W): 281.8 x 152.6 x 23.5 mm
- Materials: Nickel-plated copper, stainless steel, POM
- Weight: 1.416 kg
- Ports: 2 x G1/4”
- Mounting Method: Backplate
- Working Pressure: 2,500 Pa
- Maximum Working Pressure: 30,000 Pa (75,000 Pa with EK-Pro manifold systems)
- Operating Temperature Range: 5 – 60 °C
Compatibility:
-
NVIDIA RTX™ A5500
