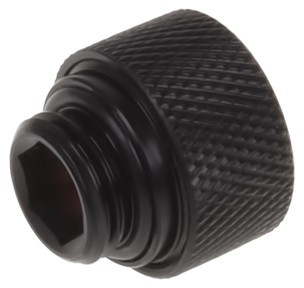

With the "Icicles", Alphacool has created a true masterpiece. These connections promise absolute tightness and high quality.

Suitable for all hard metal pipes with an outer diameter of 12mm. On the other side of the connection there is the usual ¼” thread. Available in deep black and chrome.

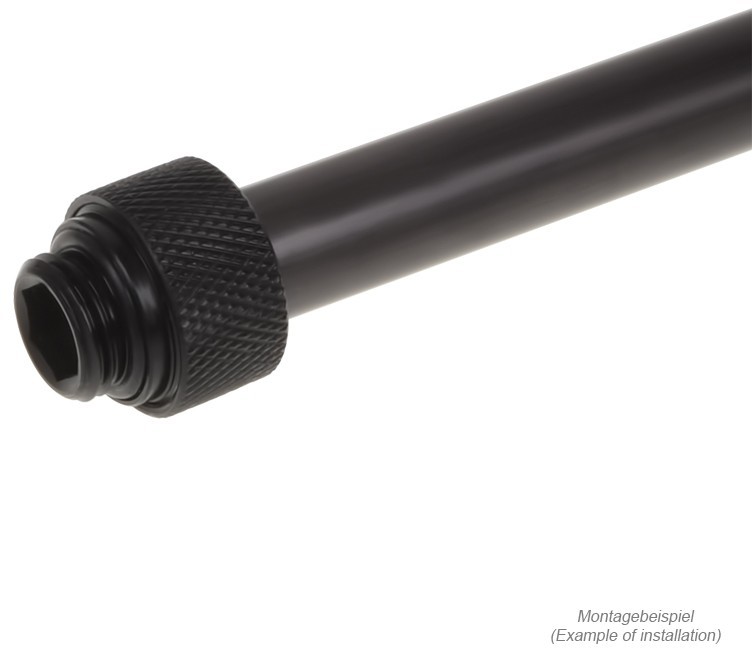

First, the union nut is put on the pipe, followed by a plastic washer that protects the O-ring and the thick O-ring itself. Now the pipe is simply put into the connection in which the second O-ring is already sitting, which fits very tightly against the pipe. As a last step, the union nut is pushed onto the connection and screwed on.

Due to the size, the union nut cannot be screwed on tightly enough. But this has also been thought of, as an 8 mm hexagon key can be inserted from below to hold the connection in place.

scope of delivery

• 1x Alphacool Eiszapfen 12mm HardTube screw-on nozzle G1/4 - Deep Black
