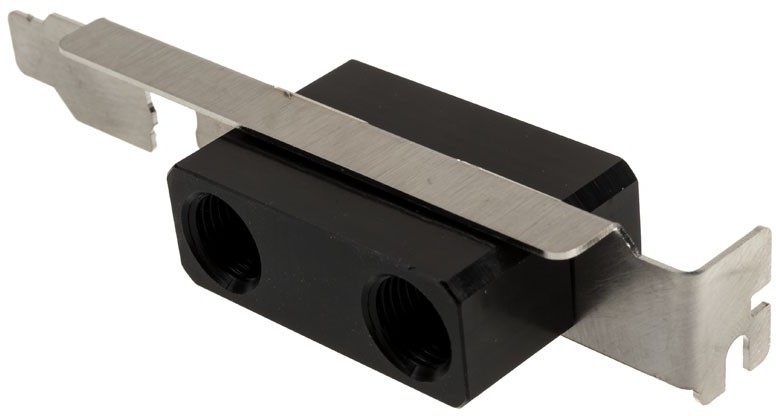

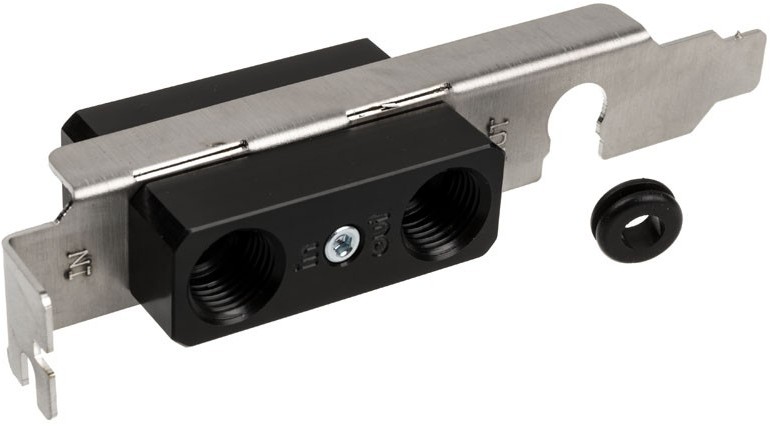

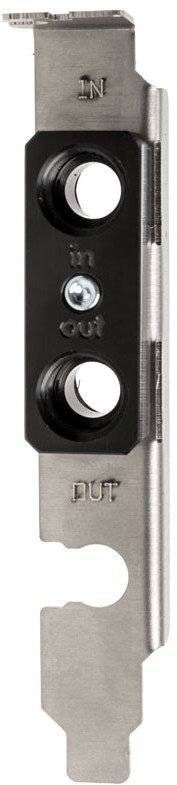

This elegant feedthrough for a vacant PCIe or PCI slot can be used to feed two coolant lines and one cable out of the PC case without drilling any holes. The feedthrough consists of a stainless steel bracket with two acetal connectors. Connection thread size is G1/4 for both external and internal side of the connector. The two acetal connectors are sealed with two o-ring gaskets. Due to the external G1/4 thread, the non-spill couplings 90108/90109 (not included in delivery) can be installed directly into the feedthrough. The feedthrough construction also provides excellent strain relief for the two coolant lines. The additional cable feedthrough can be used for round cable up to a diameter of ca. 6.5 mm, a rubber ring protects the cable in the bracket.

Scope of delivery:

• One bracket with two-piece acetal feedthrough and rubber cable protector.

Please note:
Fittings are not included in delivery, please order suitable fittings for your preferred hose dimensions separately.
