EK Water Blocks EK-Quantum Torque STC 10/13 - 6er-Pack, schwarz
EK Water Blocks EK-Quantum Torque 6-Pack STC 10/13 - Black

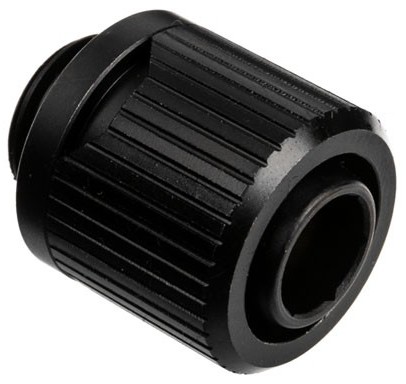

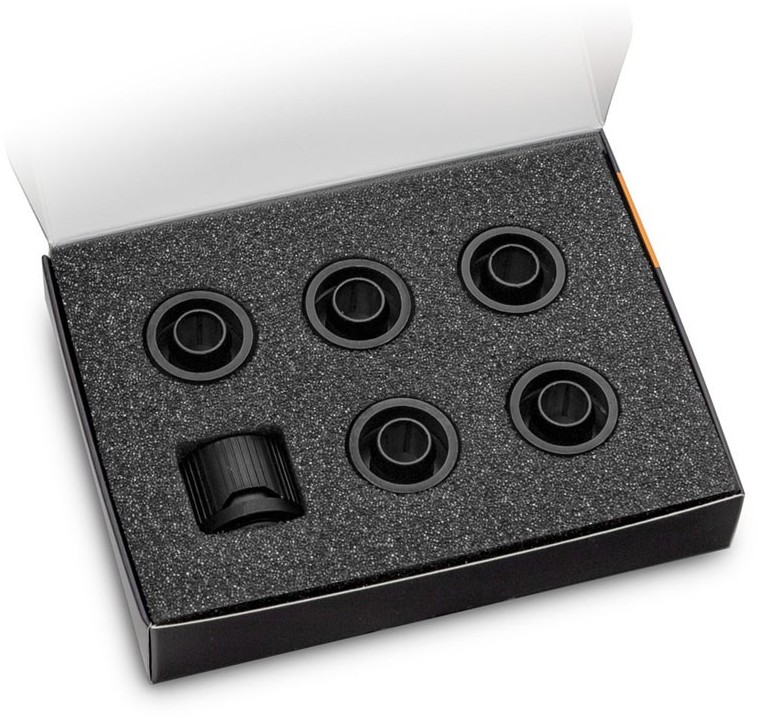

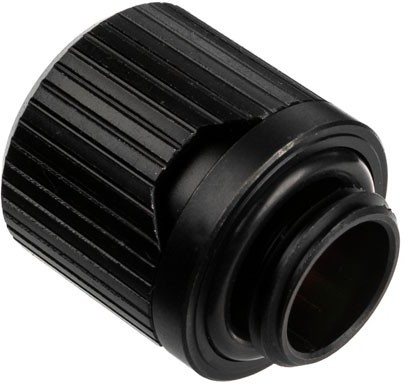

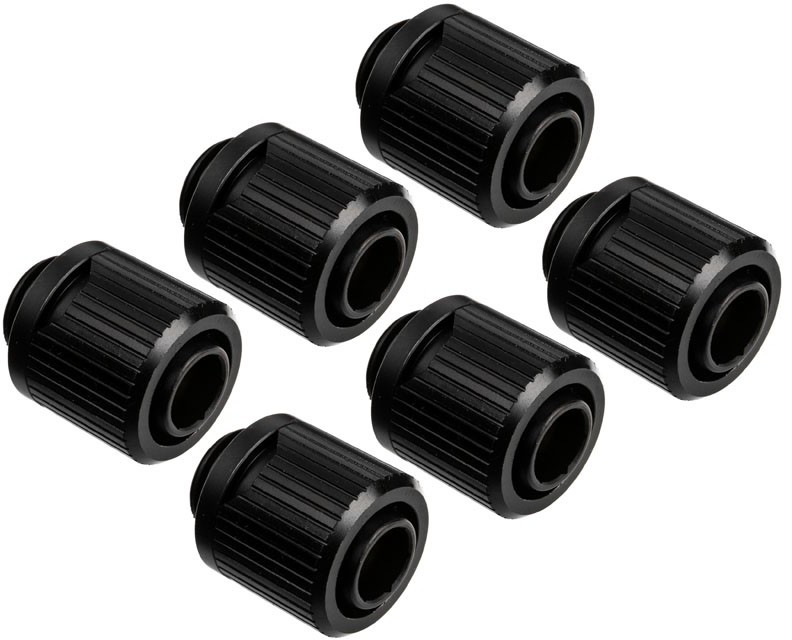

The EK-Quantum Torque 6-Pack STC 10/13 is a fitting multipack containing six EK-Torque STC fittings. These high-quality 10/13 mm (ID/OD) hose fittings are designed for various flexible hose types such as PVC, EPDM, Norprene, silicone or other compatible hoses. They have a subtle but eye-catching design with no additional branding and can be complemented by interchangeable colored rings. They are the ideal choice for everyone and match perfectly with EK-Quantum series products.
The locking ring compresses the hose wall beneath the ring, preventing the hose from being pulled off the fitting. The grooves on the outside make it easier to tighten by hand. The compression ring has cutouts in the EK Quantum signature shape that make the colored ring visible. The colored rings are available in many colors and screw onto the fitting before the compression ring. The rings are sold separately.
The EK-Quantum Torque series has been awarded the prestigious iF Design Award. A robust and industrial aesthetic characterizes the Torque family and underlines the precise manufacturing processes. Enthusiasts can add a unique color ring to give the fitting a personal touch. The Torque family offers a secure and modular connection system between liquid cooling components and hoses in the PC. The Quantum Torque series includes angle adapters, rotary and static extensions, manifolds, G1/4" plugs, drain valves, fittings and much more.
The connection piece and the compression rings have a high-quality black satin finish. Both are made of CNC-machined brass and the seal consists of high-quality rubber O-rings. Black EK-Torque fittings are not painted on the inside to reduce possible pollutants in the circuit.
The base surface of the fitting is smooth and lacks sufficient gripping surface, but the inside of the connector is designed with an 8mm Allen key pattern. Please do not use excessive force when attaching the connectors with an 8mm Allen key to avoid damage to other liquid cooling products! We recommend using the EK-Loop Multi Allen Key (6mm, 8mm, 9mm) which will break if excessive force is applied, preventing damage to more expensive components of your loop.
These fittings are guaranteed compatible with all other EK Water Blocks liquid cooling products.
Technical data:
- Surface: Satin Black
- Thread: G1/4" BSPP; 4.5 mm external thread length
- Supported hose: 10/13 mm (ID/OD)
- Outside diameter of fitting: 20 mm
- Installation height: 19 mm
- Compatible hoses: PVC, EPDM, Norprene, Silicone
Made in Europe - Slovenia!
