EK Water Blocks EK-Torque STC-16/12 Anschluss gerade G1/4 Zoll AG auf 16/12mm - silber
Ek water blocks
Tootekood: 3831109813843
Toode ei ole saadaval
Toode on kõikidest ladudest otsas ja pole hetkel saadav.

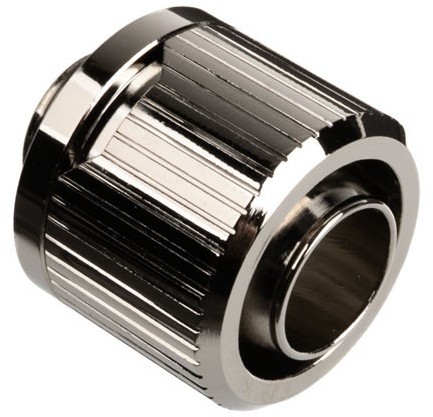

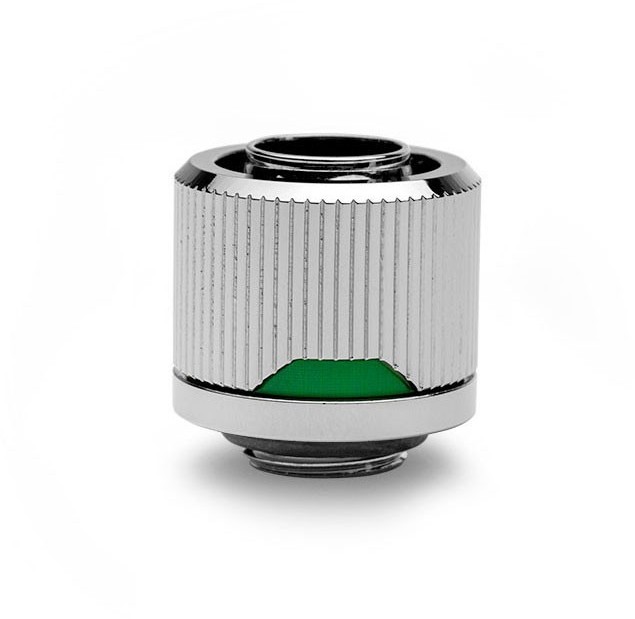

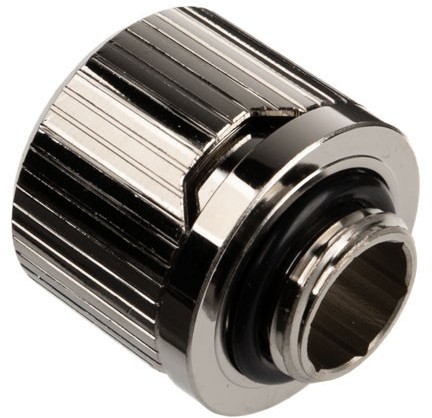

The connection of EK Water Blocks is for 16/12mm hoses, consists of nickel-plated brass and serves as a compression fitting. It is in the colour silver and comes from the Torque series, which convinces with a simple and timeless design. Originally intended for the EKWB Quantum series, this fitting is also compatible with other EK products.
In this fitting, the union nut serves as a compression ring that presses the sealing ring onto the hose.
As a small feature, the union nut has a recess under which coloured rings are placed, which provide a bit of individuality and are available separately.
Technical Data:
- Material: Nickel-Plated Brass
- Colour: Silver Nickel
- Supported Tube: 16/12 mm
- Thread: G1/4", male
- Thread Length: 4,5 mm
- Outer Diameter (Fitting): 23 mm
- Installed Height: 19 mm
- Compatible Soft Tubing: PVC, EPDM, Norprene, Silicone and most other flexible tubes
