Bitspower Z-Multi 150mm Water Tank

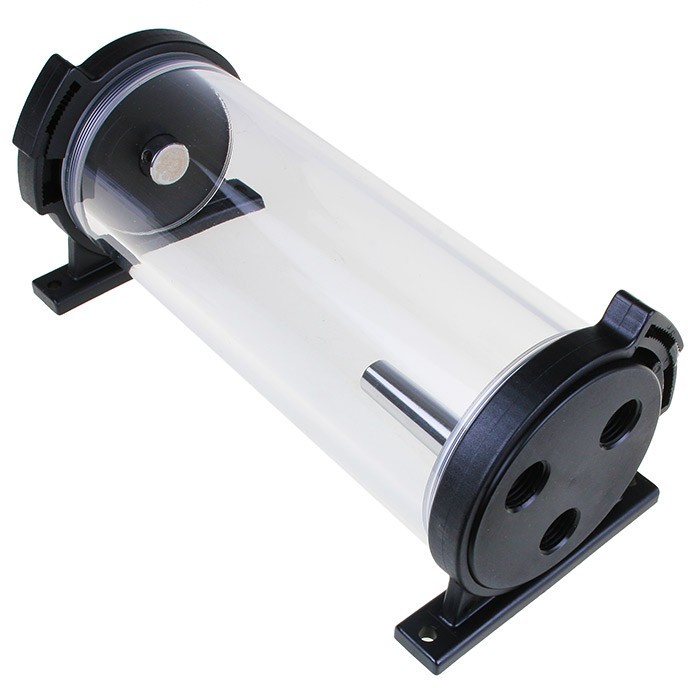

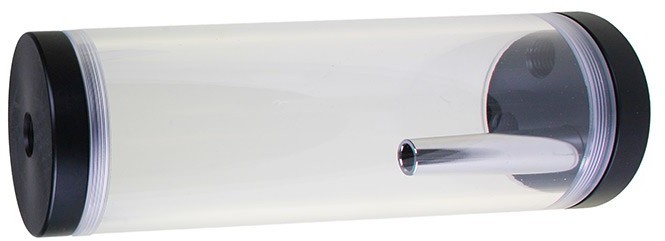

The Z-Multi Water Tank from Bitspower has two screw-in POM covers, one with only one G1/4" thread and the other with three G1/4" threads. In the cover, where there is only one G1/4" thread, an adapter is already screwed in, which flows in three individual jets against the reservoir when it is used as an inlet. In the cover, with three threads, a flow pipe is installed in one of the threads, which is usually used as an inlet. If the inlet starts from the upper side, i.e. on the opposite side of the flow pipe, the outlet should not be through the flow pipe, as in the case of a water level below the pipe, air would otherwise enter the cooling circuit. Two plugs are included to close the openings that are not used. One plug is shiny silver, while the other is transparent and has a hole for an optional LED illumination. Two clamps are also included to mount the reservoir to the case or something else.

Technical Data:

• Material: Acrylic, POM
• Acrylic Tube Color: Clear
• Dimension: 170 x 60 mm (H x Φ, +/-3%)
• Length without Cover: 150 mm
• Inner Diameter: 50 mm
• Thread: 4x G1/4"
• Scope of Delivery: 1x G1/4" Silver Shining Stop Fitting, 1x G1/4" Silver Shining Aqua-Pipe I, 1x G1/4" Silver Shining Anti-Cyclone Adapter, 1x G1/4" Crystal Stop Fitting I With 5MM LED Hole, 2x Tank Clamp
