EK Water Blocks EK-Pro GPU WB RTX A5000 Nickel + Inox
EK-Pro GPU WB RTX A5000 – Nickel + Inox
High-Performance Full-Cover Water Block for NVIDIA RTX™ A5000 Graphics Cards

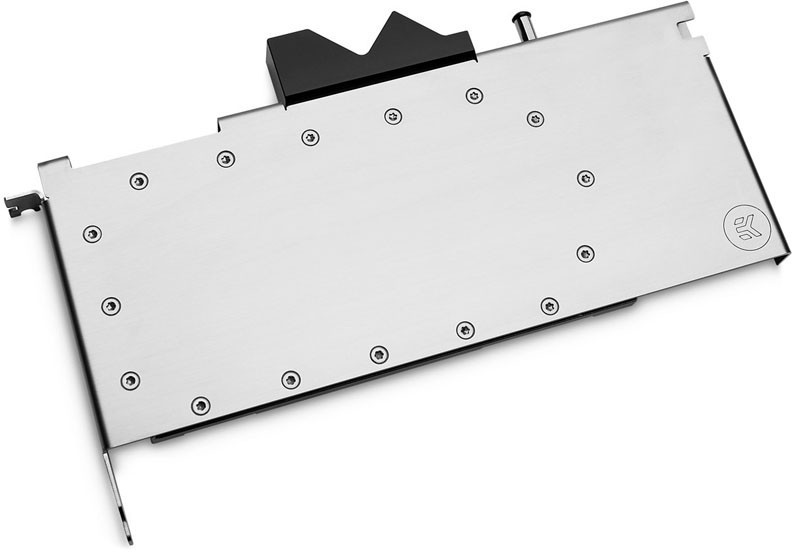

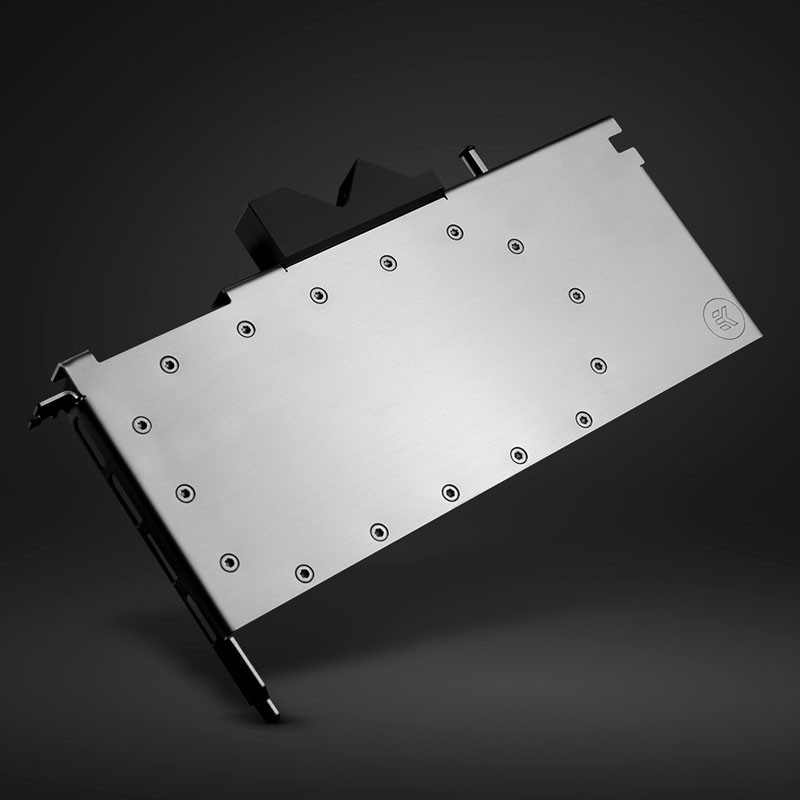

The EK-Pro GPU WB RTX A5000 – Nickel + Inox is a professional-grade, high-performance full-cover water block designed specifically for NVIDIA RTX™ A5000 GPUs. It spans the entire length of the card and cools all critical components, effectively transforming the card into a single-slot solution.
Direct Cooling of Critical Components
This water block directly cools the GPU core, VRAM, and VRM (voltage regulation module), channeling coolant over all major heat-generating areas to ensure optimal thermal performance.
Advanced Open Split-Flow Cooling Engine
Featuring EK’s renowned Open Split-Flow cooling engine, this design offers extremely low flow restriction. It performs exceptionally well even with weaker or low-speed pumps, making it perfect for multi-GPU workstations. The jet plate and fin structure have been fine-tuned for even coolant distribution with minimal pressure drop, and the block remains effective even in reverse flow scenarios.
Premium Materials & Precision Engineering

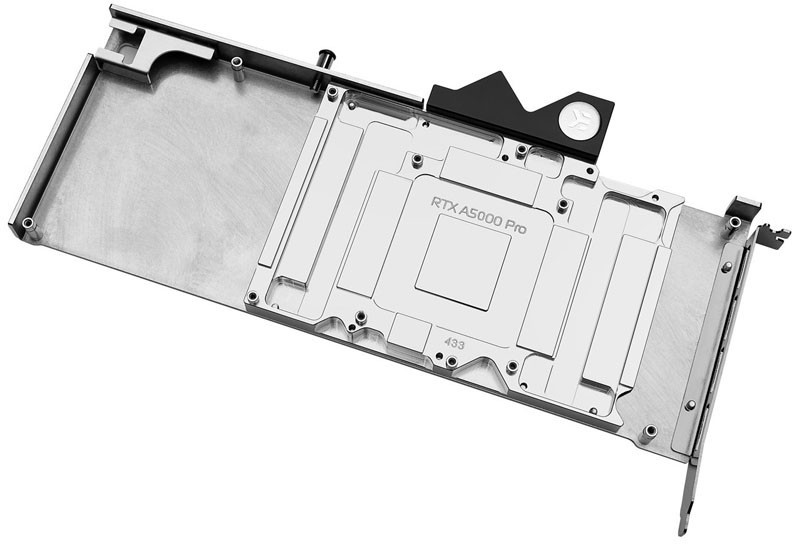

The base of the block is CNC-machined from nickel-plated electrolytic copper for superior thermal conductivity. The top is laser-cut from industrial-grade stainless steel, providing durability and a clean aesthetic. A built-in screw-in PCIe power connector bracket securely holds the power cable once installed. High-quality EPDM O-rings ensure tight sealing, while pre-installed brass standoffs simplify installation.
Compact, Single-Slot Design
The I/O bracket is integrated into the top of the block, replacing the GPU’s standard I/O shield and enhancing overall rigidity. This design allows the GPU to occupy only a single PCIe x16 slot, preserving valuable space in dense workstation or server environments.
Functional & Stylish Backplate

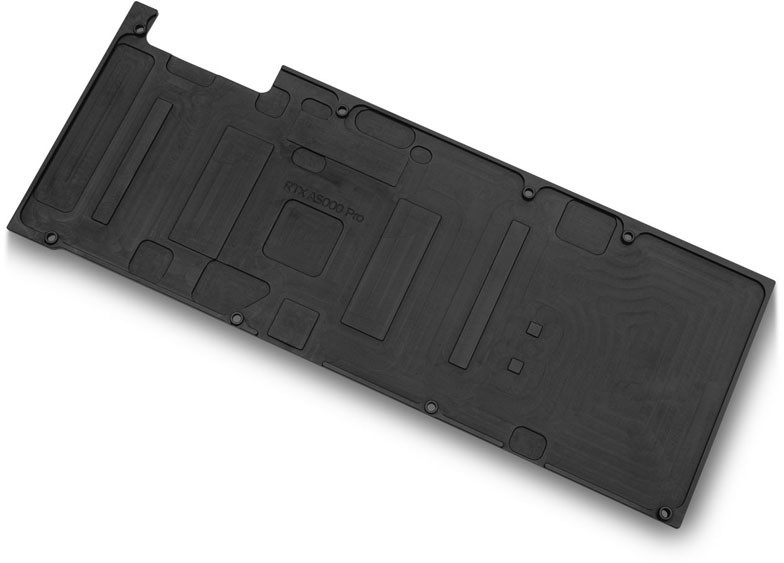

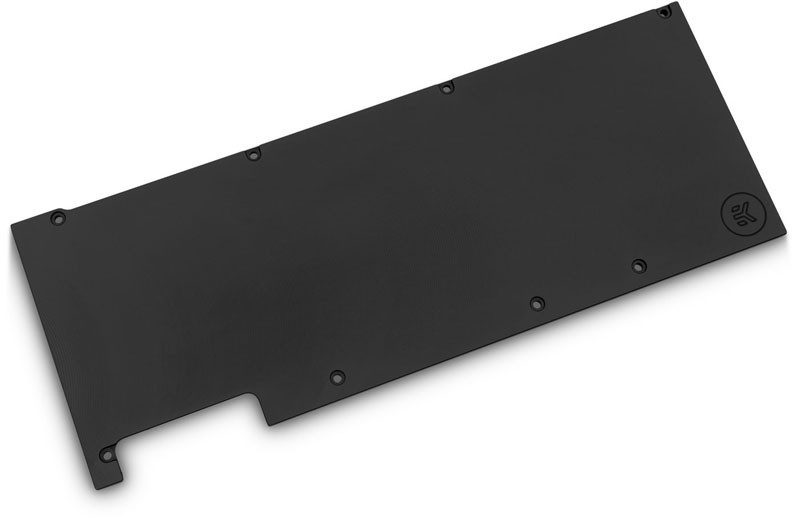

Included is a retention backplate that not only enhances structural integrity and visual appeal but also passively cools the VRM area on the back of the PCB. The water block and backplate feature cutouts to maintain full compatibility with NVIDIA NVLink.
Flexible Connectivity & Mounting
This version comes with a POM-machined 45°-angled terminal featuring two G1/4” ports, ideal for integration with EK-Pro QDC kits and manifolds in high-density computing environments. A side-mounted standoff is included to support GPU brace solutions for added security during chassis transport or handling.
Included in the Box:
-
EK-Pro GPU WB RTX A5000 – Nickel + Inox workstation/server-grade water block
-
Aesthetic and functional backplate
-
Mounting hardware with pre-installed brass standoffs
-
Screws, nuts, and washers
-
Thermal Interface Material (TIM)
Technical Specifications:
-
Dimensions (L x H x W): 281.2 × 152.6 × 22.3 mm
-
Materials: Nickel-plated copper, stainless steel, POM
-
Weight: 1.42 kg
-
Ports: 2 × G1/4”
-
Mounting Method: Backplate
-
Working Pressure: 2,500 Pa
-
Maximum Working Pressure: 30,000 Pa (with EK-Pro Pump Reservoir Manifold), otherwise 75,000 Pa
-
Operating Temperature Range: 5 – 60 °C
Compatibility:
-
NVIDIA RTX™ A5000
Made in Slovenia – EU
