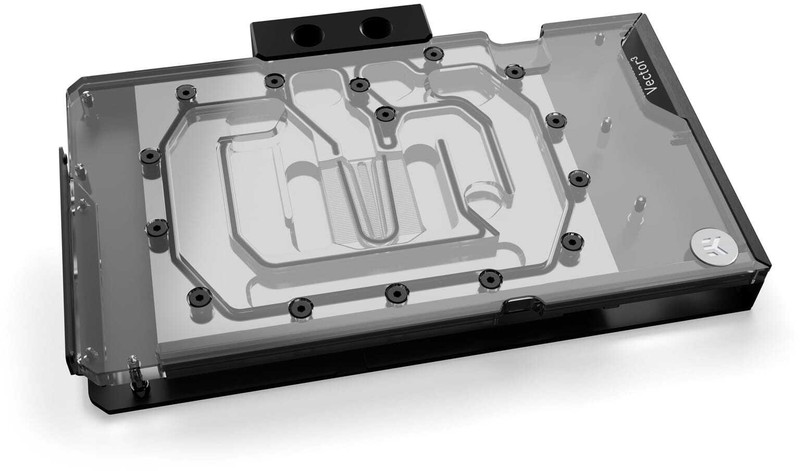

EK Water Blocks EK-Quantum Vector³ Suprim RTX 5090 - Plexi: Ultimate water cooling for your MSI RTX 5090 SUPRIM
This premium water block sets new standards in cooling performance, reliability, and aesthetics. Featuring an improved, larger cooling motor, more powerful thermal pads, and a new seal design to optimize reliability and aesthetics, this water block ensures exceptional cooling efficiency, even under the most extreme workloads.
Improved cooling motor for unsurpassed performance
The Vector³ Suprim RTX 5090's redesigned cooling structure maximizes heat transfer through an expanded fin array and optimized coolant flow paths. It actively cools the GPU core, VRAM, and power phases , and passively cools PCB hotspots through the included backplate.
- Optimized open split-flow cooling engine: Superior flow distribution for even cooling and reduced resistance.
- Low hydraulic resistance: Allows compatibility with both high and low flow pump systems.
- Ideal for overclocking & high-load applications: Keep your GPU at peak performance with consistently low temperatures.
Premium materials and precision technology
Built with high-quality components for durability and top performance:
- Nickel-plated electrolytic copper cold plate: Maximizes thermal conductivity and longevity.
- CNC-machined acrylic top: Shows the coolant and offers a crystal-clear aesthetic.
- Black anodized aluminum backplate: Increases cooling surface and improves structural integrity.
- Single O-ring seal design: Reduces potential points of failure for long-term reliability.
- New sealing system: Prevents solid coolant particles from accumulating between the cold plate and the acrylic top to ensure optimal performance.
Pre-cut high-performance thermal pads
The Vector³ Suprim RTX 5090 comes with next-generation thermal pads, some of which are pre-cut for seamless installation and optimized contact. This enables superior heat dissipation from VRAM and power components.
Includes full coverage backplate
Each Vector³ Suprim RTX 5090 water block includes a backplate designed to:
- Passively cool PCB hotspots , including VRAM, core, and VRM areas.
- Offering a sleek, modern look with its black anodized aluminum finish.
- Simplify installation with pre-installed captive backplate screws , eliminating the guesswork.
This L-shaped backplate profile seamlessly wraps the GPU for a clean, unified aesthetic while adding an extra layer of cooling performance.
EK-Matrix7 support – For perfect loop planning
The EK-Quantum Vector³ Suprim RTX 5090 follows EK-Matrix7, a standard that simplifies the assembly of liquid cooling circuits by aligning connectors and component spacing for intuitive hose routing.
- Perfect integration with EK-Quantum Reflection² distribution plates.
- Easy hose bending & loop planning: Less time for measuring and adjusting.
- Seamless vertical & horizontal GPU mounting: A clean, professional look with minimal effort.
Whether the GPU is mounted vertically or horizontally, Matrix7 ensures a smooth, precise setup.
Addressable D-RGB compatibility
Addressable D-RGB LED lighting is mounted along the longest edge of both the top and rear water blocks for improved uniformity and brightness . The PCB and diodes are concealed within a clean aluminum extrusion. The individually addressable RGB LED is compatible with popular RGB synchronization technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector must be aligned with the +5V marking on the D-RGB (addressable) header (pinout: +5V | Data | Block | Ground).
Technical data:
- Dimensions (L x H x W): 236.5 x 156 x 27 mm
- D-RGB LED number: 12
- D-RGB connector: 3-pin 5V digital LED header
- D-RGB cable length: 500 mm
Made in: Slovenia – Europe!
