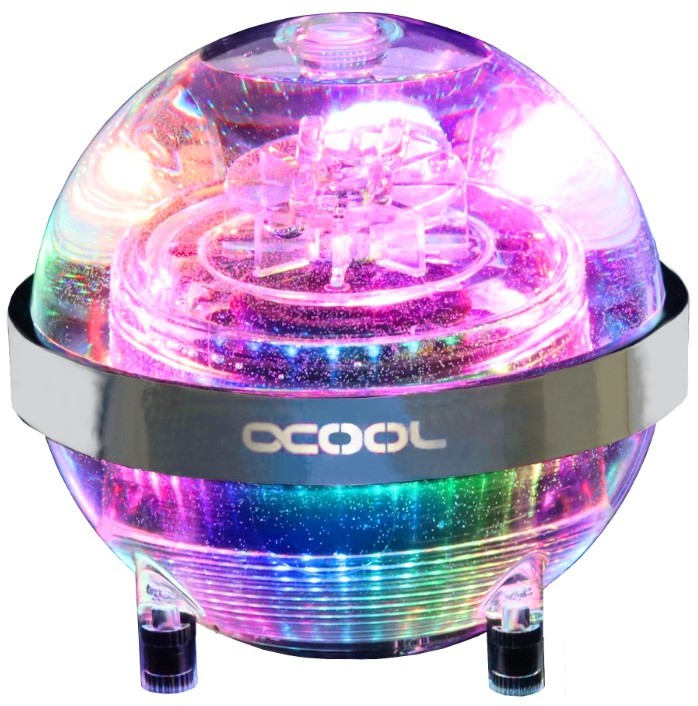

Alphacool Eisball Addressable RGB - Acrylic (incl. D5 VPP655 PWM)
The Alphacool Eisball reservoir with integrated pump top presents itself in a unique way. A spherical reservoir has never been seen before and it opens countless new possibilities, especially in the field of modding. From static single colour lighting to maybe an R2D2 mod: there are really no limits to your creativity. Another special feature of this version: The pump is already pre-installed. Alphacool uses the proven Eispump D5 VPP655.
Unique design and excellent lighting
In contrast to conventional reservoirs, the Alphacool Eisball has an unprecedented spherical design. The 22 digital RGB LEDs run completely around the equator of the Eisball in a chrome ring. These provide versatile lighting effects as well as your standard colours. Of course, the device comes with a Digital RGB Controller with which enables you to customize the style and lighting of your Eisball.
Versatile mounting options
Don't let yourself be limited to a single mounting option! The included adhesive mat and 2 different mounting plates gives you many mounting options: whether on the radiator, the fan slots, or a 2.5" SSD slot you’re covered. Alternatively, the proven universal Alphacool pump mounting can also be used. In combination with the VPP655, the Alphacool Eisball can even be operated upside down. But only and exclusively with the Alphacool VPP655 pump. Standard Laing D5 pumps cannot be operated upside down due to the spherical bearing.
Where is the pump?
The pump disappears completely inside the Eisball. It is inserted into the Eisball from below and fastened with a special pump holder. All Alphacool's own D5 style pumps such as the VPP655 and VPP755 as well as all original Laing D5 pumps are suitable for installation.
Is the Eisball Silent Suitable?
With the Eisball, the pump is completely inside the reservoir, and is therefore surrounded by the water. The water acts as additional noise insulation. The enclosed decouplers also reduce the transmission of vibrations to a minimum. All in all, a real Silent product!
Note: The Eisball cannot be operated upside down with the VPP655 pump!
| Technical data | |
| Dimensions (W x D x H) | 117,51 x 128 x 128 mm |
| Dimensions (W x D x H) with mounting material and decouple | 130,01 x 128 x 128 mm |
| Net weight | 510 g |
| max. operating temperature | 60 °C |
| material Eisball | transparent nylon |
| material screw plug | Brass |
| material pump holder | Acetal |
| material Digital RGB ring | Acetal |
| Threads | IN 1x G1/4“ / OUT 1 x G1/4“ |
| Fillport | 1 x G1/4“ |
| capacity | 700 ml |
| Digital RGB connector | 4-Pin |
| voltage Digital RGB | 5 VDC |
| mounting: drillings Eisball feet | 4 x M4x10 |
| mounting plate: size of drillings | 8 x M3 / 4 x M4 (for decoupler) |
| mounting plate on radiator or fans | 120 / 140 mm fans or radiators - 4 x M3x5 |
| pumps compatibility | VPP655/755 or Laing D5 pumps |
| Color Digital RGB Ring | chrome |
| Color | transparent |
