Benchtop TRMS multimeter, 5999, ±0.03%, 1000V DC, 750V AC, 20A AC/DC, 60 MΩ, 6 mF, 100H, 20 MHz, USB, UNI-T
UT8803E Series

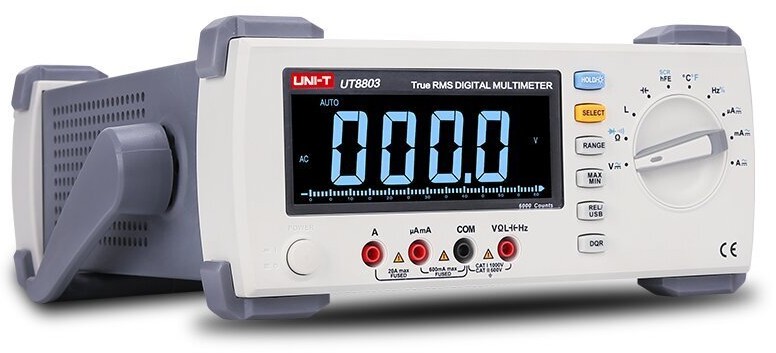

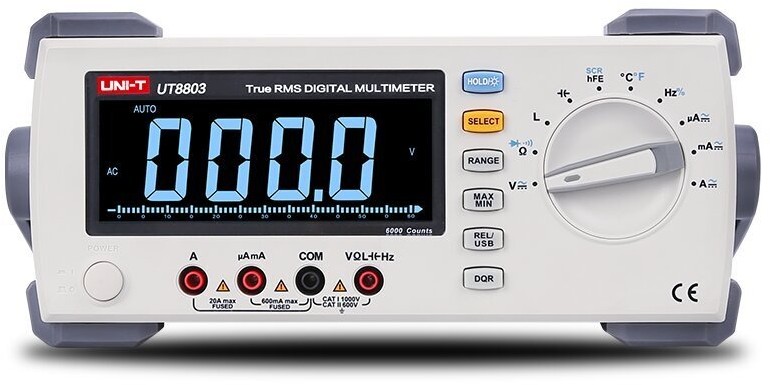

The UT8803E is a 6000 counts 3 ⅚ digital, automatic range, portable desktop, AC powered digital multimeter. Large screen large character display with backlight, more clear and easy to read. With full function test, full range overload protection and unique appearance design, it has become an electrical test instrument with better performance. This instrument can be used to measure : AC / DC voltage, AC / DC current, resistance, frequency, capacitance, inductance, triode HFE, diode (LED), thyristor (SCR) and circuit on-off. Meet the measurement needs of users with multi-function, high precision and automation.
3⅚
READING RESOLUTION
3rdgs/s
FASTEST TEST RATE
100kHz
FREQUENCY RESPONSE
0.3%
DC VOLTAGE ACCURACY in a Year
USB Device
Reading resolution 3⅚，maximum reading 5999
D / Q parameters of capacitance and inductance can be measured
Multiple measurement items optional
Extreme value operation and reference value operation function, with analog bar
Specification
|
Feature |
Specification |
|
Model Number |
UT8803E |
|
Fastest Test Rate |
3 rdgs/s |
|
Frequency Response |
100kHz |
|
Resolution |
3⅚ |
|
Connectivity |
USB Device |
|
Digits |
3.8 |
|
Count |
5.999 |
|
Ranging |
True |
|
TRMS |
True |
|
Accuracy |
0.030% |
|
Warranty |
3 years |
|
Shipping Dimensions (L x W x H) |
15 in x 13 in x 13 in |
|
Shipping Weight |
4 kg |
Comparison
|
Model |
UT8802E |
UT8803E |
UT8804E |
UT8805E |
UT8806E |
|
Readind Resolution |
4½ |
3⅚ |
4⅚ |
5½ |
6½ |
|
Fastest Test Ratae |
3 rdgs/s |
|
|
||
|
frequency Response |
1kHz |
|
300kHz |
||
|
Accuracy |
0.1% |
0.3% |
0.025% |
0.015% |
0.0035% |
|
Connectivity |
USB Device |
USB Device, USBHost,LAN,RS-232 |
USB(Device & Host), LAN, RS-232C, GPIB (option) |
||
