Non-contact voltage and phase tester Habotest HT100P

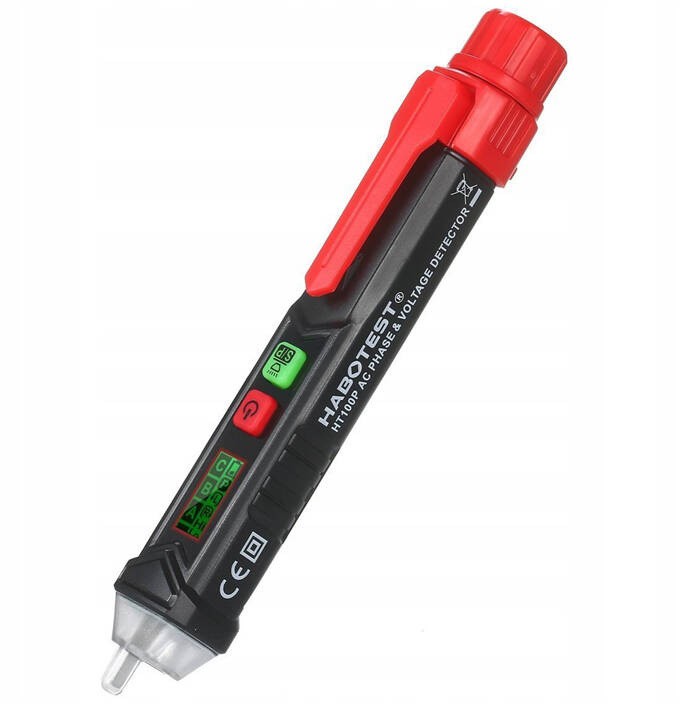

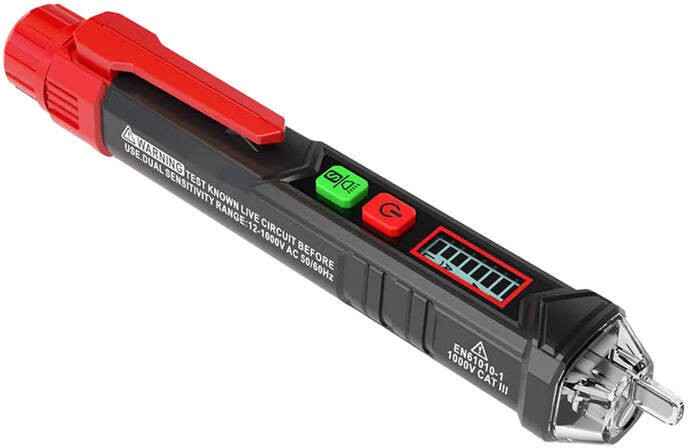

Intelligent 2-in-1 Voltage and Phase Detector Habotest HT100P
This non-contact voltage (NCV) and phase detector provides precise measurement and safe use. Equipped with LCD display and sensitivity adjustment button - it is very convenient to use. It offers breakpoint checking as well as live and null cable detection, and automatically shuts off after 5 minutes of inactivity. The built-in LED flashlight will make your work easier. The unit is powered by 2 AAA 1.5V batteries.
Precision measurement
HT100P provides accurate, non-contact measurement. You can adjust its sensitivity with the built-in button. It measures voltage in the range of 12-1000V. It also allows you to check the rotation of the 3 phase. The detector also detects break points. So it will prove itself in many applications.
Function to detect live and null cables
The detector intelligently detects live and null cables, and is equipped with a dual visual and audible alarm. Simply place the device against the surface of the cable. A green display and slow beep indicates an null cable. A red display and very fast alarm indicates an live cable.
Designed with user comfort and safety in mind
The clear LCD display will provide you with key information. The HT100P also has a built-in LED flashlight. Thanks to it you can use the device even in dark rooms. You don't have to worry about the battery running out too fast if you forget to turn the detector off - it will automatically stop working after 5 minutes of inactivity.
Small, handy, easy to transport
The device is compact, portable and convenient to use. Easy to reach buttons allow you to quickly and easily turn the detector on, off and adjust sensitivity. An integrated clip allows you to attach the HT100P to clothing, bags or backpacks, for example, making it easy to transport.
| Brand | Habotest |
|---|---|
| Model | HT100P |
| Voltage detection range | High sensitivity: AC 12-1000V;Low sensitivity: AC 48-1000V |
| Shape of probe | Prolate |
| Frequency | 50/60Hz |
| Alarm mode | Sound and light |
| Non-contact phase detection | Yes |
| Backlight | Red and green double color backlight |
| Live and neutral test | Yes |
| Signal intensity display | 4-level bargraph |
| Signal intensity indication method | Sound: slow to fast;Backlight: green to red;Bargraph: low to high |
| Flashlight | Yes |
| Automatic shutdown | Yes, after 5 minutes of inactivity |
| Low battery indication | Yes |
| Power supply | 2x AAA 1.5V batteries (included) |
| Weight | About 32g |
| Dimensions | 157x27x23mm |
| Safety | EN61010-1,-2-030;EN61326-1, CAT III 1000V |
