Thermal Grizzly Kapton insulation sheet 10x60 mm, 50 pcs, black
Assembly aid for electrically conductive thermal interface materials, 10 x 60mm, 50 pieces
Kapton Insulation Sheet Black Edition is a polyimide film that can be used at high temperatures up to 260 degrees Celsius and serves as an assembly aid for electrically conductive thermal interface materials (TIM).
Black Edition: Thinner, stronger, and ideal for precise masking

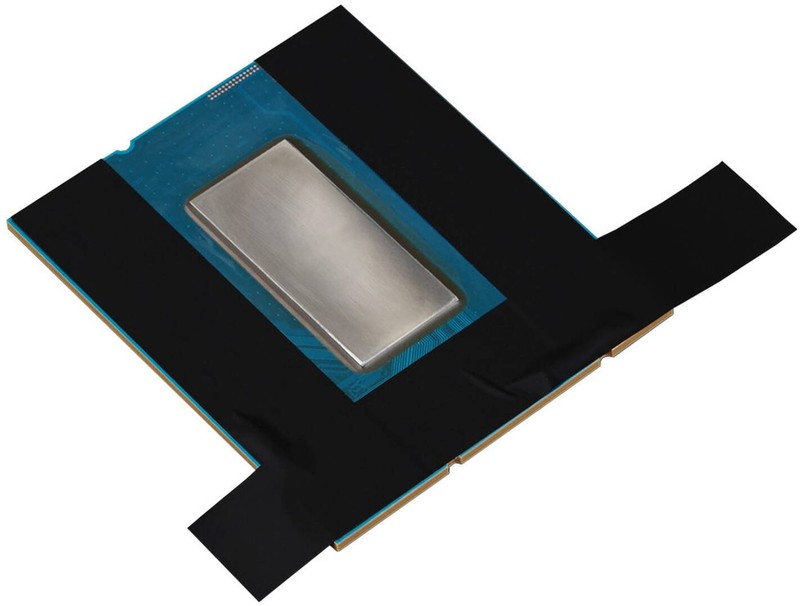

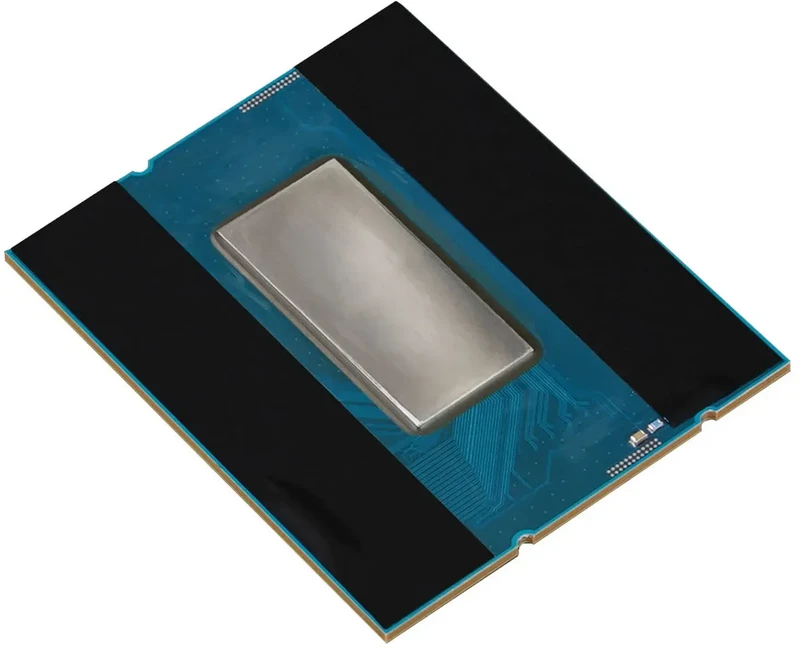

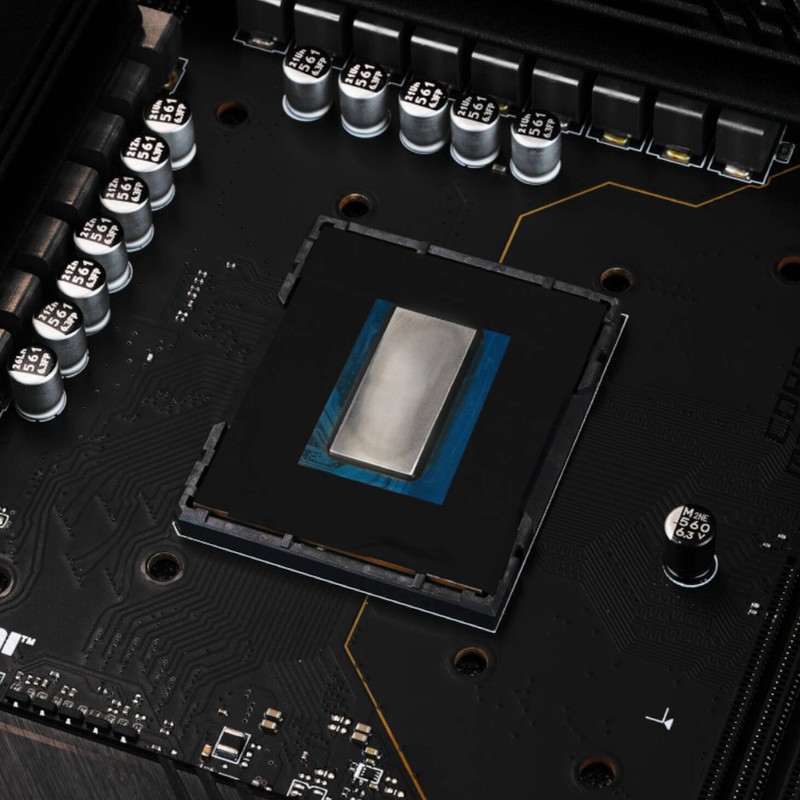

It is excellent for masking components such as SMDs on a CPU or GPU when using Conductonaut liquid metal, Carbonaut, or KryoSheet. Compared to the standard Kapton Insulation Sheet, the Black Edition is slightly thinner (30µm instead of 40µm) and has a significantly higher breakdown voltage of 5 kV. Kapton Insulation Sheet Black Edition is supplied packaged in 10 sheets, each containing 5 Kapton adhesive strips. Each individual adhesive strip is 10 millimeters wide and 60mm long, with a thickness of 30µm. It is recommended to thoroughly clean the contact surface where the insulation sheet is applied (e.g., with isopropanol).
