UNI-T UT501B Insulation Resistance Tester
Uni-T UT501B Insulation Resistance Tester

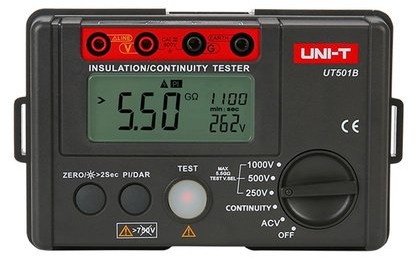

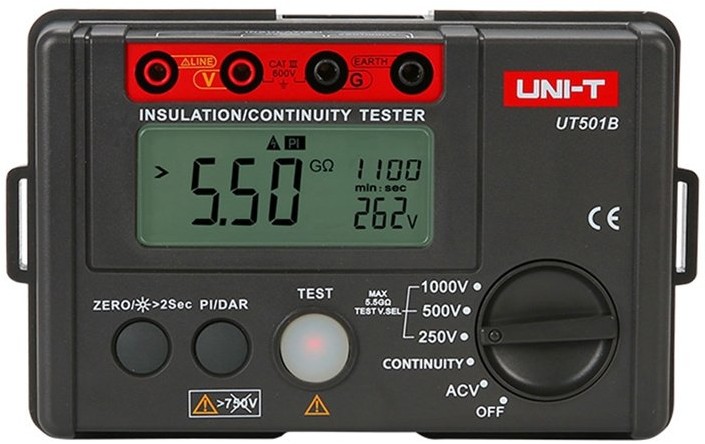

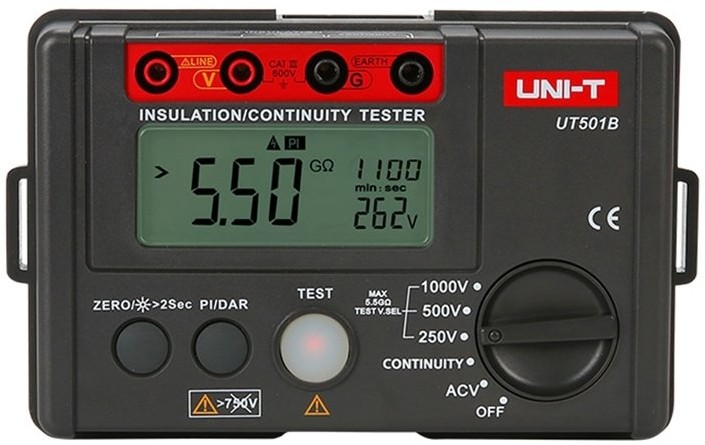

The Uni-T UT501B Insulation Resistance Tester is a versatile and precise measuring device from the UT500 series, designed to measure insulation resistance, AC voltage, and low resistance in electrical installations and equipment. The model offers test voltages of 250V/500V/1000V, measurement accuracy of ±(3%+5), as well as advanced PI and DAR diagnostic functions. Equipped with a clear 2000-count LCD display, automatic range selection, continuous measurement function, and an alert system (buzzer and LED), it ensures convenience and safety when testing transformers, motors, cables, and high-voltage installations. The UT501B stands out for its intuitive operation and compact, rugged design (weight 500 g), making it an ideal tool for electricians and service technicians. The model is CE and UKCA certified.
Included
Uni-T UT501B Insulation Resistance TesterTest leadsAlligator clipsBatteriesCarrying strap
| Manufacturer | Uni-T |
|---|---|
| Model | UT501B |
| Test voltage range | 250V / 500V / 1000V |
| Insulation resistance measurement | up to 5GΩ |
| AC voltage measurement | 30V–600V |
| Short-circuit current | <2mA |
| Additional features | PI and DAR functions, auto-discharge, auto-range selection, continuous resistance measurement, 2000-count backlit LCD display |
| Power supply | 6 × 1.5V (LR6) |
| Dimensions | 150 × 100 × 71 mm |
| Weight | 500 g |
