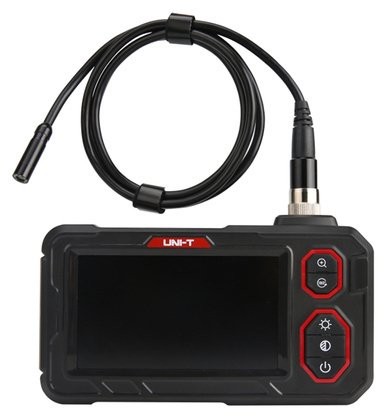

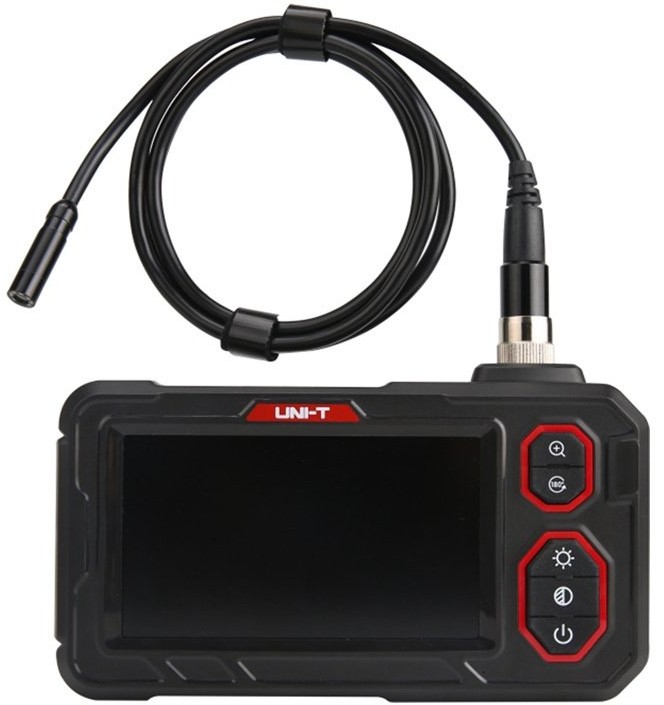

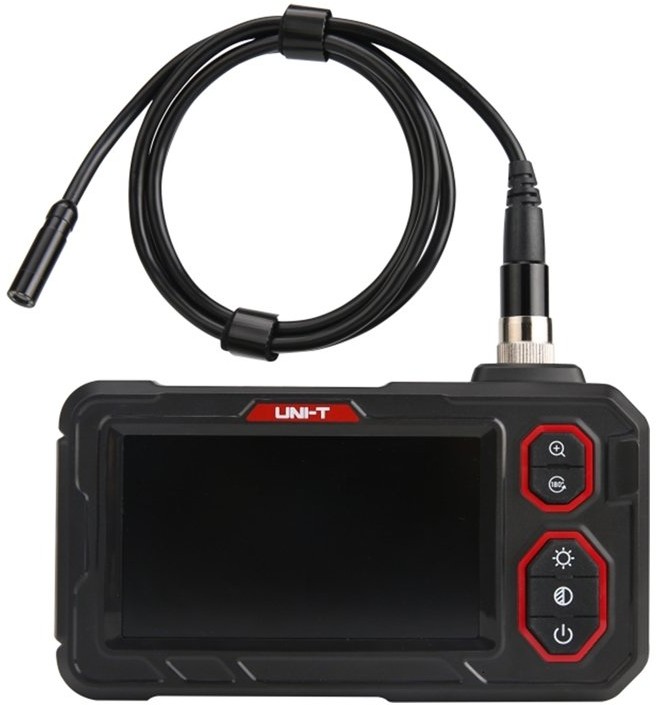

UNI-T UT667-5m Endoscope (Borescope) with 5m cable
Uni-T UT667-5m Borescope
The Uni-T UT667 borescope with a 5-meter cable is designed for inspecting hard-to-reach areas without the need to disassemble components. It is ideal for industrial, automotive, and installation service applications where a quick view of the interior of machines or pipes is essential. Equipped with a 4.3" screen, it provides a clear image, and features such as image rotation and zoom facilitate the analysis of details during operation.
Image Quality and Ease of Use
The 8 mm diameter camera with LED lighting allows for work in dimly lit spaces, and brightness adjustment lets you tailor visibility to the conditions. The 5 m cable provides a good balance between reach and control over the camera, which works well for standard inspections. The IP67 waterproof probe and rugged construction increase the device’s durability during daily use.
Included
UT667-5m borescopeUSB-C cableHook, side mirror, magnetMounting clampsUser manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT667-5m |
| Type | Industrial borescope |
| Screen | 4.3" IPS LCD |
| Screen resolution | 1280 × 720 px |
| System language | English |
| Features | Screen rotation, black-and-white images, color conversion, zoom-in, zoom-out |
| Cable material | Replaceable cable with aviation connector |
| Cable length | 5 m |
| Lens diameter | 8 mm |
| Light sensor | CMOS |
| Field of view | 70° |
| Depth of field | 20 ~ 100 mm |
| LED light adjustment | 4 levels |
| Number of LEDs | 8 |
| Camera resolution | 300K |
| Camera protection rating | IP67 |
| Battery | 3.7V / 2000mAh |
| Operating time | 5 h |
| Lens temperature | 0°C ~ 80°C |
| Device operating temperature | 0°C ~ 45°C |
| Operating humidity | <90% RH non-condensing |
| Certifications | CE, RoHS |
