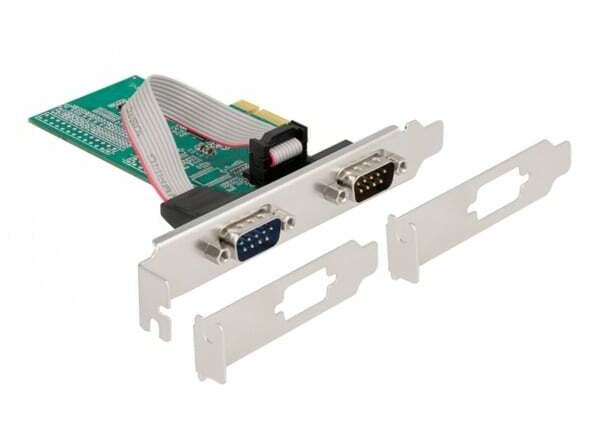

The PCI Express card by Delock expands a PC by two external serial ports. Different devices such as scanner, printer, mouse etc. can be connected to this card. By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC.

Specification

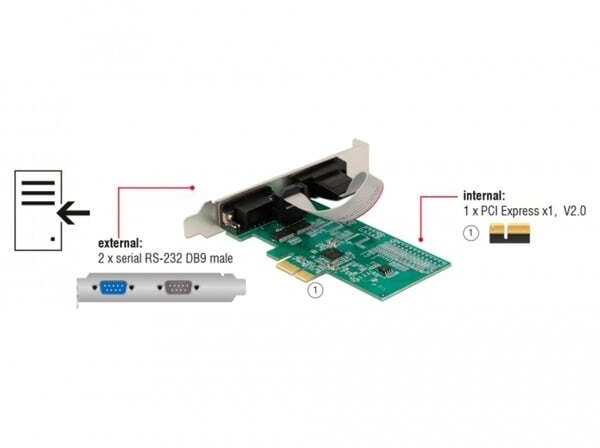

• Connector:
  external: 2 x serial RS-232 DB9 male
  internal: 1 x PCI Express x1, V2.0
• Chipset: ASIX AX99100
• Data transfer rate up to 230.4 Kb/s
• FIFO: 256 byte
• Data bit: 5, 6, 7, 8, 9
• Compatible with 16C950 UART

System requirements

• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express slot

Package content

• PCI Express card

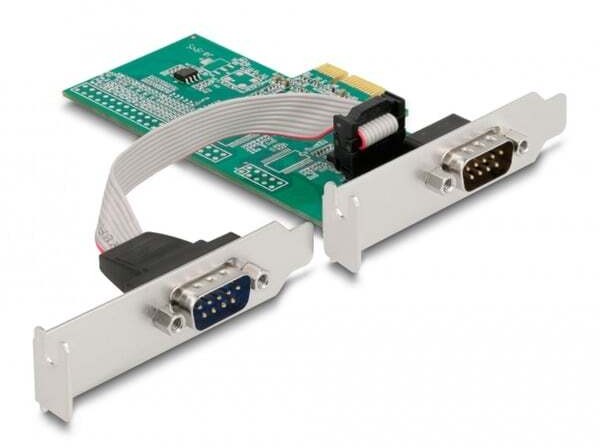

• 2 x low profile bracket
• Driver CD
• User manual
