C-Series Pro ModMesh 12VHPWR to 3x PCI-e Cable for Corsair Type 4 PSU - 60cm, black

NVIDIA's GeForce RTX 4000 series graphics cards use a new 16-pin connector (12+4-pin) with PCIe 5.0 standard for power supply. This connector is also referred to as 12VHPWR. CableMod offers the C-Series Pro ModMesh 12VHPWR to 3x PCI-e cable, a 12VHPWR PCIe 5.0 adapter designed for Corsair C-Series PSUs without a native 12VHPWR connector.

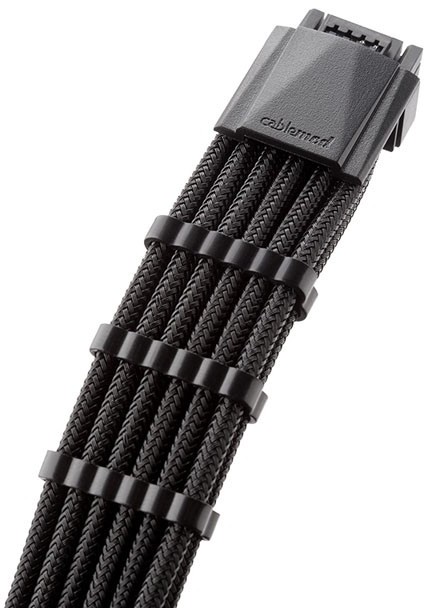

The CableMod C-Series Pro ModMesh 12VHPWR to 3x PCI-e Cable offers a high-quality finished sleeving made of ModMesh. This cable consists of 16AWG conductors and is equipped with five pre-installed, closed cable combs.

Important notes: For the cable to work correctly, all 8-pin connectors must be connected to the power supply. The distance between the connector of the graphics card and the side panel must be at least 4 to 4.5 cm. In addition, the cable should only be bent at a distance of 35 mm from the connector on the GPU. Finally, ensure that the 12+4 pin connector is fully and securely inserted into the socket on the graphics card.

Technical Details:

Length: 600 mm

Colour: Black

Material: ModMesh

Conductor strength: 16 AWG

Connections:

1x 16-Pin 12VHPWR PCIe 5.0

3x PCIe-8-Pin

Compatibility:

Corsair C-Series RM (Black Label) / RMi / RMx

Corsair C-Series RM (Yellow Label) / AXi / HXi
