DIGITUS Adapterkabel USB2.0 RS232 1,8m FTDI chipsa
Product code: DA-70170
- Connector: DB9 Serial Port Male; USB-A male
- Cord Length: 1.8
Price
22.80 €

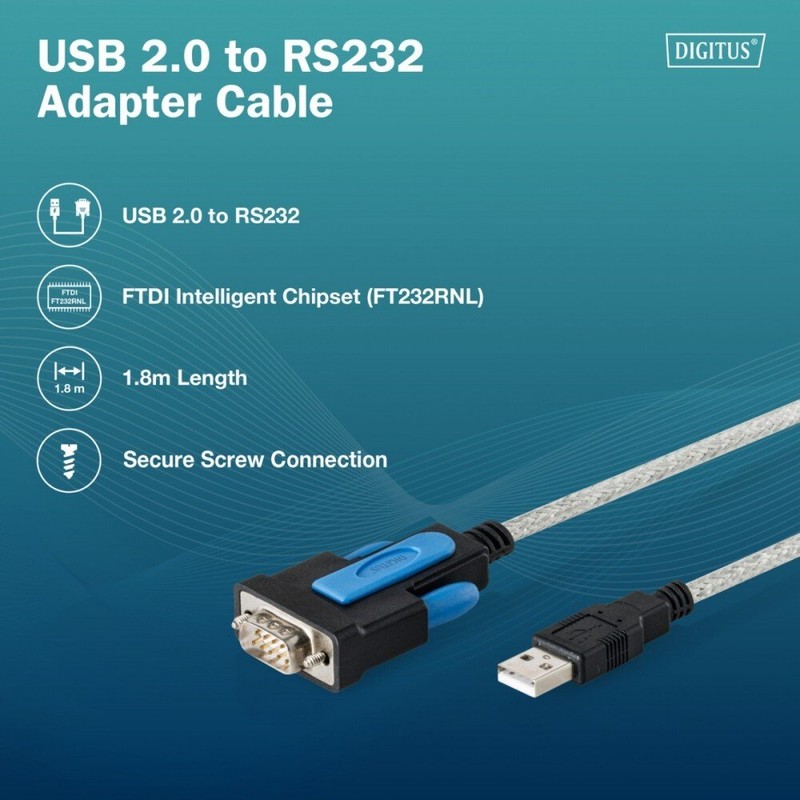

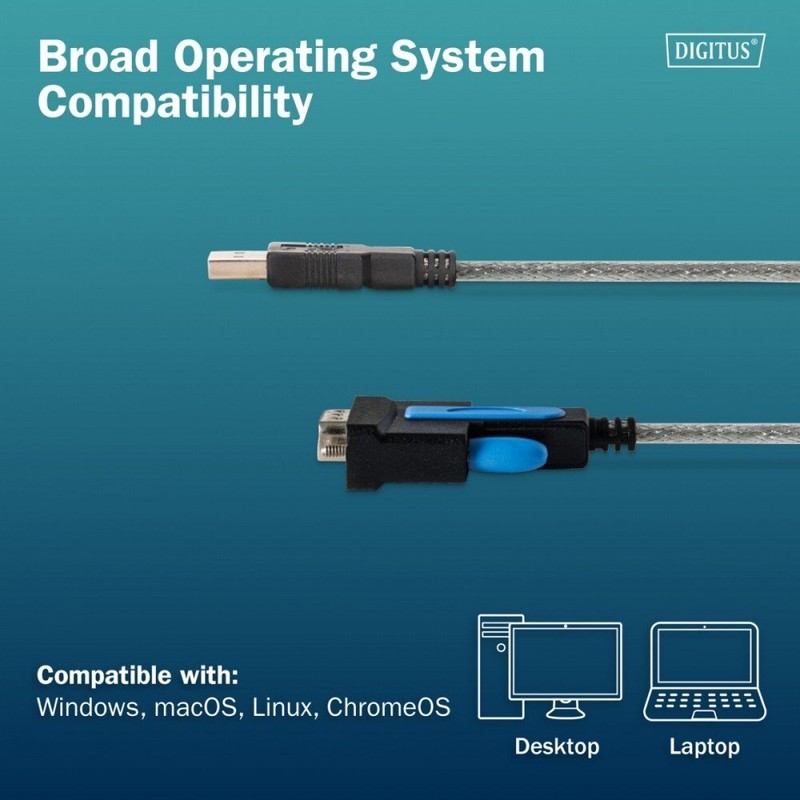

USB 2.0 to RS232 adapter cable combines a data transmission cable and an adapter in one compact solution. The integrated high-quality FTDI/FT232RNL chipset reliably converts USB signals into serial RS232 signals, enabling direct connection of modems, measuring devices, controllers, or other RS232 peripherals to a PC or notebook. Automatic driver installation on Windows, macOS, Linux, and ChromeOS means the cable is ready for immediate use. Gold-plated contacts ensure long-lasting and stable signal transmission, while LED status indicators clearly show active data traffic.
- Cable with integrated adapter function no separate hardware required

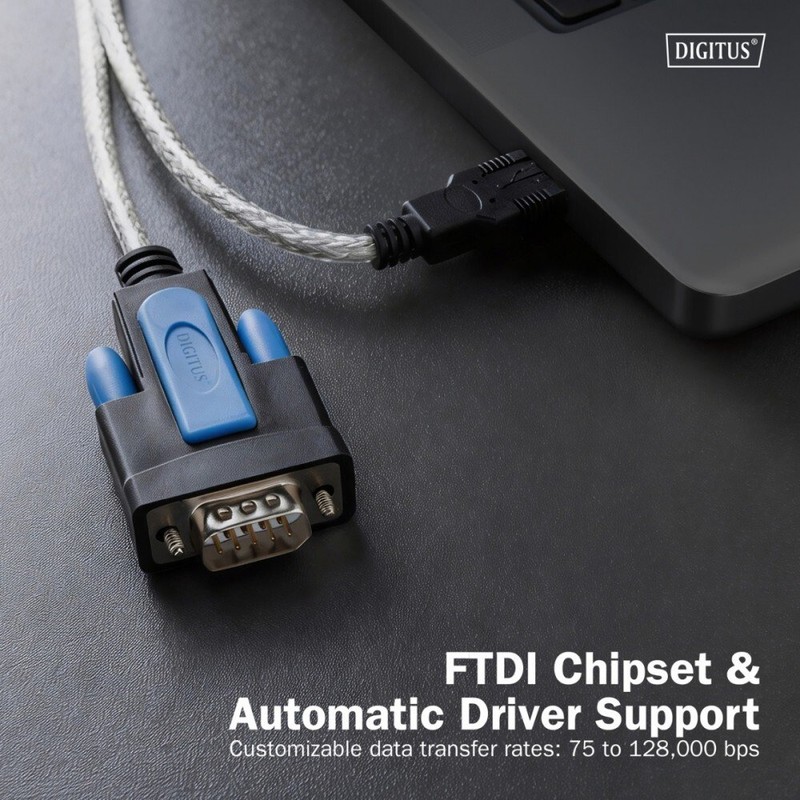

- Stable and smooth serial communication via modern USB ports ready to use immediately thanks to the reliable FTDI chipset and automatic driver support
- USB 2.0 compliant, backward compatible with USB 1.1
- Configurable data transfer rates: from 75 to 128,000 bps
- RS232 interface via USB-A easy integration with existing systems

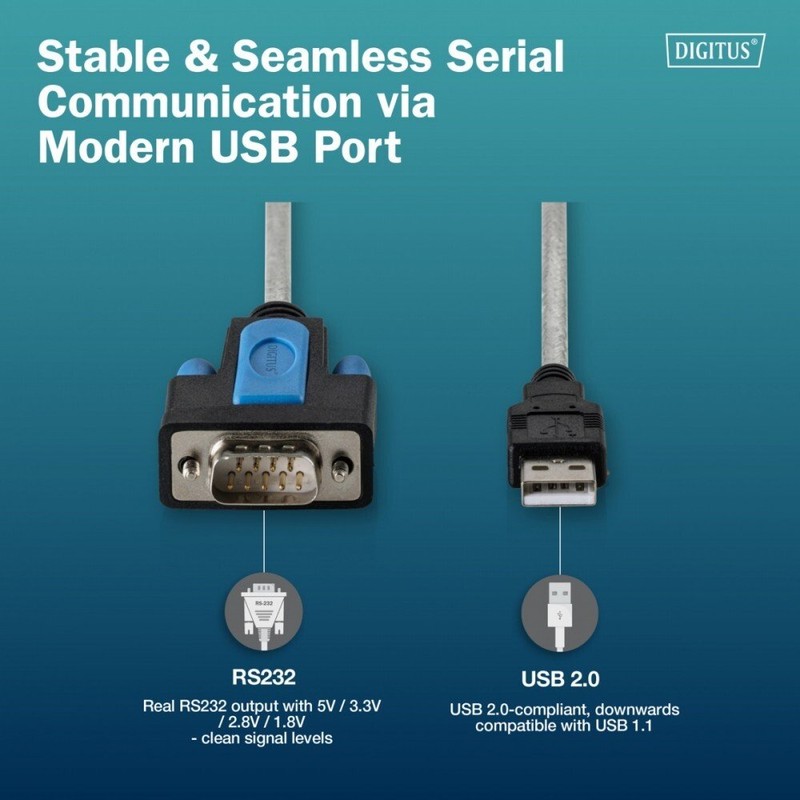

- True RS232 output with 5 V / 3.3 V / 2.8 V / 1.8 V and TTL input clean signal levels
- Gold-plated contacts optimal conductivity and corrosion protection
- Full-duplex communication simultaneous sending and receiving of data
- COM port retention automatic port recognition after reboot or reconnection
- Secure screw connection ideal for direct connection to device ports (e.g., PLC controllers, PCs)
For more detailed information, please contact customer service via email or the chat window.
Technical Details
ColourBlack
Connector
- DB9 Serial Port Male
- USB-A male
Cord length1.8
Warranty (months)24
