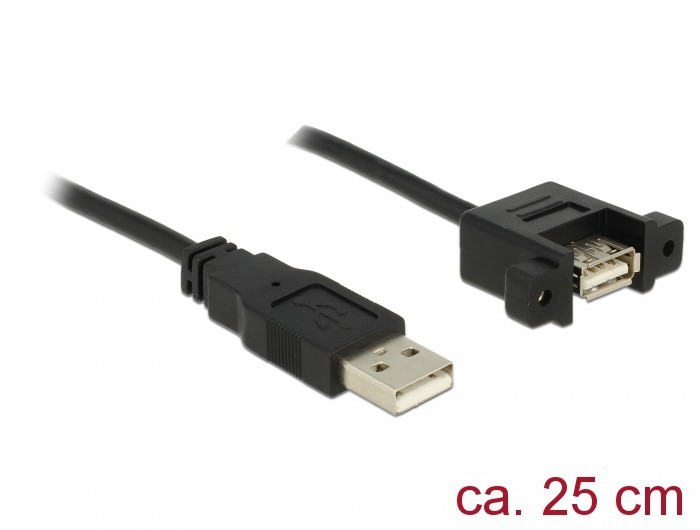

USB 2.0 Type-A male > USB 2.0 Type-A female panel-mount 0.25 m
- Length: 0.25 m
This cable by Delock can be used to extend an USB connection and to connect various devices. The female port can be attached with two screws, e.g. to a slot bracket, a cable duct or an enclosure with the corresponding opening. In this way, it is possible to install a USB connector in an easily accessible position. Specification • Connectors: 1 x USB 2.0 Type-A male > 1 x USB 2.0 Type-A female with nuts for installation• Screw type: #4-40 UNC• Mounting hole: ca. 15 x 8 mm, screw hole pitch ca. 30 mm• Cable gauge: 28 AWG data line 24 AWG power line• Cable diameter: ca. 4.5 mm• Gold-plated connectors• Data transfer rate up to 480 Mb/s• Colour: black• Length incl. connectors: ca. 0.25 m System requirements • A free USB interface Package content • USB panel-mount cable• 2 screws
