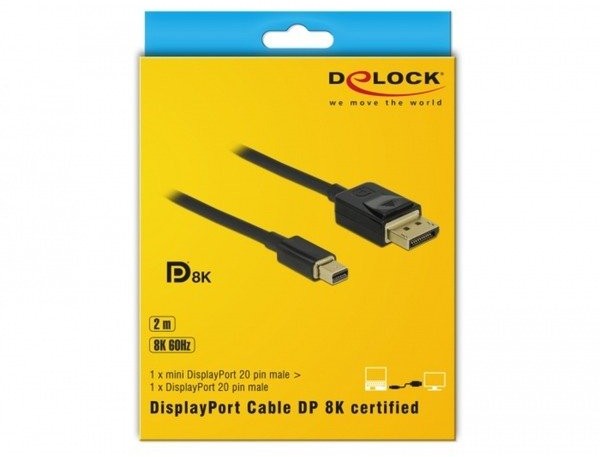

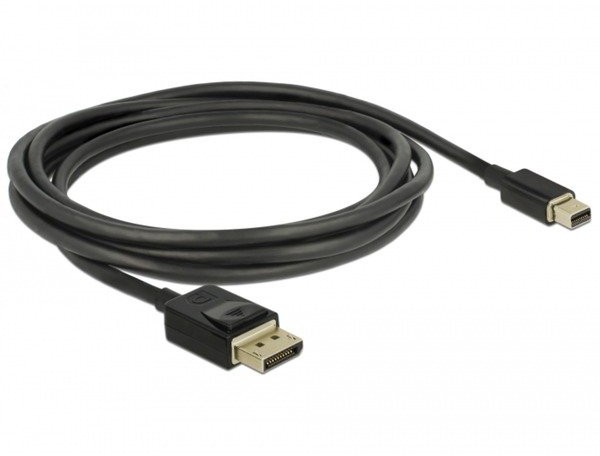

This certified DisplayPort cable by Delock is used to connect devices with a DisplayPort interface, such as monitors, beamers or televisions, to a PC or laptop with a mini DisplayPort interface. Supporting a maximum bandwidth of 32.4 Gb/s, content can be displayed in 8K Ultra HD (7680 x 4320 @ 60 Hz) resp. 5K (5120 x 2880 @ 120 Hz) and 4K Ultra HD (3840 x 2160 @ 240 Hz) resolution. The high-quality, triple-shielded cable also significantly improves the quality of audio transmissions with a sampling rate of up to 1536 kHz.

Specification

• Connectors:  1 x mini DisplayPort 20 pin male >  1 x DisplayPort 20 pin male• DisplayPort 1.4 specification• Downwards compatible to DisplayPort 1.3, 1.2 and 1.1• DisplayPort® DP 8K certified cable• Pin 20 not connected• Cable gauge: 34 AWG• Cable diameter: ca. 4.5 mm• Copper conductor• Triple shielded cable• Contacts gold-plated• Transmission of audio and video signals• Data transfer rate up to 32.4 Gb/s• Resolution up to:  Display with DSC support:    7680 x 4320 @ 60 Hz    5120 x 2880 @ 120 Hz    3840 x 2160 @ 240 Hz  Display without DSC support:    7680 x 4320 @ 30 Hz    5120 x 2880 @ 60 Hz    3840 x 2160 @ 120 Hz  (depending on the system and the connected hardware)• Supports Display Stream Compression 1.2 (DSC)• Supports HDR• Supports HDCP 1.4 and 2.2• Supports HBR3 (8.1 Gb/s) data rate• Up to 32 audio channels for speakers• Up to 1536 kHz audio sampling rate• Supports colour sampling in 4:4:4, 4:2:2 and 4:2:0 format• Colour: black• Length incl. connectors (L): ca. 2 m

System requirements

• A free mini DisplayPort interface

Package content

• Mini DisplayPort to DisplayPort cable
