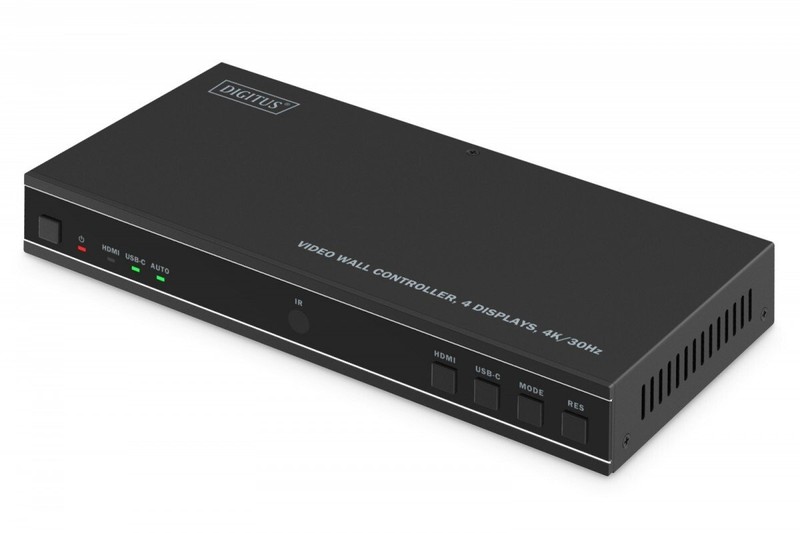

Digitus Video Wall Controller, 4 Displays, 4K/30Hz
Video Wall Controller, 4 Displays, 4K/30Hz
Video wall controller with 1× HDMI / USB-C (DP 1.2a) input to 4× HDMI 4K/30Hz outputs, USB-C, 3.5 mm audio, S/PDIF, RS232, IR control, 8 display modes.
Create a video wall consisting of four interconnected 4K UHD (HDMI) displays with support for 8 different display layouts.
This video wall controller enables impressive presentations on a video wall made up of up to four 4K UHD displays. Thanks to flexible display modes (1×1, 2×1, 3×1, 4×1, 1×2, 1×3, 1×4, 2×2), the configuration can be easily adapted-ideal for professional presentations, digital signage, or surveillance applications. High-resolution signal processing supports a maximum input resolution of 4K/60Hz via HDMI (HDMI 2.0) or USB-C (DP 1.2a). The video wall output is delivered at 4K/30Hz via HDMI, ensuring a razor-sharp image.
The integrated audio extractor allows separate audio output via analog 3.5 mm stereo or digital S/PDIF-perfect for external speakers. With support for 180° image rotation, the video wall can also be used for ceiling installations. Intuitive control via remote control, directly on the device, or via RS232 interface ensures maximum ease of use. The output resolution of the displays can also be easily adjusted. Its compact design and wall-mounting capability make this controller an ideal solution for a wide range of professional applications.
Key features:
- Input signal via HDMI (HDMI 2.0) or USB-C (DP 1.2a) with a maximum resolution of 4K/60Hz
- Output signal (video wall mode, 4 displays) via HDMI with a maximum resolution of 4K/30Hz
- 8 selectable display layouts: 1×1, 2×1, 3×1, 4×1, 1×2, 1×3, 1×4, 2×2
- Audio extractor: enables audio de-embedding and playback via analog 3.5 mm stereo or digital S/PDIF
- Supports 180° image rotation (easy switching via remote control), ideal for ceiling installations

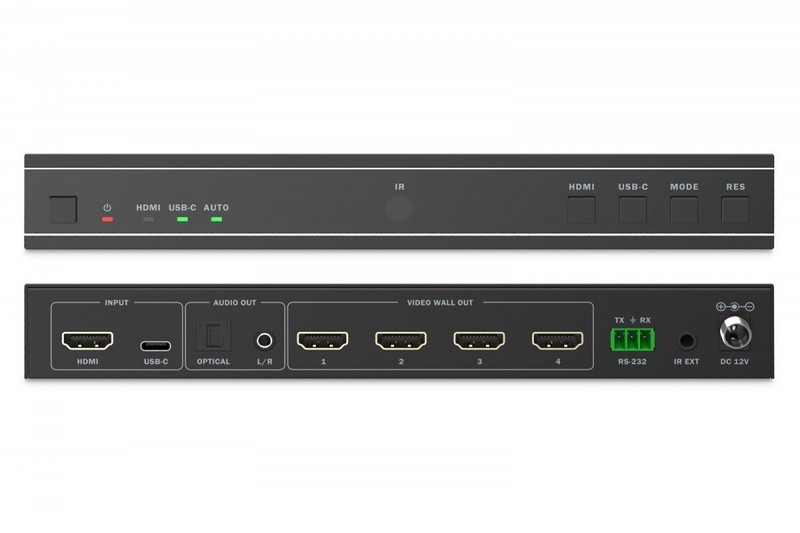

- Convenient control options: remote control, front-panel buttons, or RS232
- Easy switching of output resolutions for all 4 displays via the device or remote control
- Bezel adjustment: convenient image frame alignment in video wall mode using the remote control
- Maximum HDMI cable length (input/output): 4K/60Hz - up to 8 m 4K/30Hz - up to 10 m 1080p/60Hz - up to 15 m
- Suitable for wall mounting
