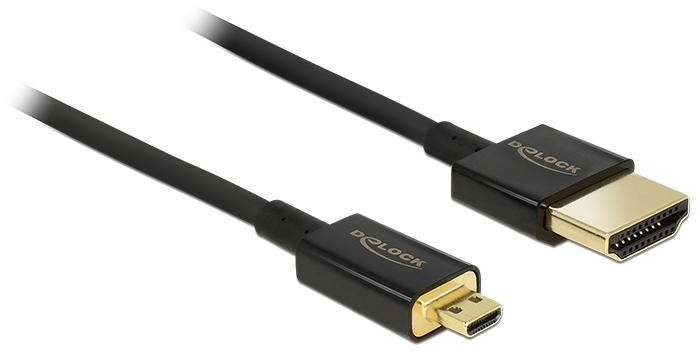

Delock Cable High Speed HDMI with Ethernet - HDMI-A male > HDMI Micro-D male 3D 4K 2 m Slim High Quality
This High Quality High Speed HDMI with Ethernet cable by Delock enables the connection between a camera or tablet with Micro HDMI interface and a monitor or TV with an HDMI-A port. It stands out due to its slim diameter and its short connectors. The triple shielded cable combines fast data transfer as well as audio- / video- and Ethernet connection. Due to the support of a maximum bandwidth of 18 Gb/s, 4K content (maximum frame rate 60 Hz), 3D content in 4K resolution (maximum frame rate 24 Hz) and content in 21:9 cinema aspect ratio can now be displayed. The cable allows the simultaneous transmission of two video channels to display video streams for two users on one screen, as well as the simultaneous transmission of up to four audio channels. The quality of audio transmissions is significantly improved by the sampling rate of up to 1536 kHz.
Special features
• Extra short connectors with full metal shielding
• Especially slim cable diameter
Specification
Connector:
High Speed HDMI-A 19 pin male >
High Speed HDMI Micro-D 19 pin male
High Speed HDMI with Ethernet (HEC) specification
Cable gauge: 36 AWG
Cable diameter: ca. 3.2 mm
Twisted-pair cabling
Copper conductor
Gold-plated connector
Triple shielded cable
Metal housing
Transfer of audio and video signals
Data transfer rate up to 18 Gb/s
Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected
hardware)
3D support: up to 1920 x 1080 @ 60 Hz; 3840 x 2160 @ 30 Hz (depending on the
system and the connected hardware)
Supports the 21:9 cinema aspect ratio
Supports 1080p HFR (High Frame Rate) 3D
Up to 120 Hz refresh rate
Supports transmission of 2 video channels simultaneously to use one display for two
viewers
Supports colour sampling in 4:2:0 format (original format of Blu-Ray, DVD and TV)
Contains Audio Return Channel (ARC)
Up to 32 audio channels for speakers
Up to 1536 kHz audio sampling rate
Supports transmission of up to 4 audio channels simultaneously
Supports dynamic adjustment of lip synchronicity at audio / video delays
Supports CEC 2.0 control commands
Uses new advanced colour space for presentation of digital pictures
Supports Dolby® TrueHD and DTS-HD Master Audio™
More lively and natural colours
Colour: black
Cable length: ca. 2.0 m
System requirements
A free HDMI-A interface
Device with a HDMI Micro-D interface
Package content
HDMI cable
