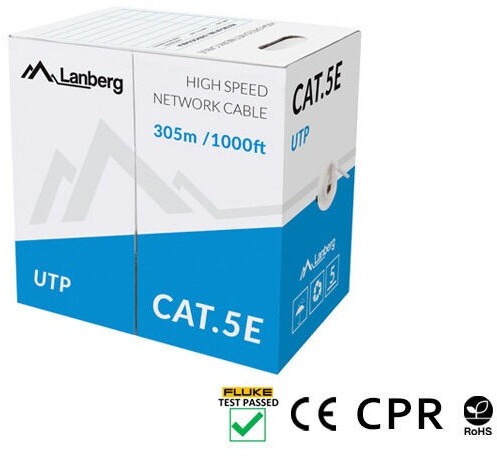

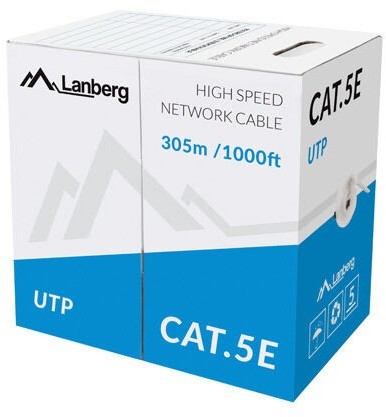

Lanberg Cable UTP Cat.5E CU 305 m drut grey

Lanberg
Product code: LCU5-11CU-0305-S
  • Lenght: 305 m
  • Connector: None
Price
104.20 €
Monthly payment
7.00 € / starting from monthly

LANBERG LCU5-11CU-0305-S Lanberg UTP stranded cable CU, Cat.5E, 305m, gray


- LAN cable category 5e UTP (Unshielded).

- Length 305m.

- The wires are made of pure copper (CU 100% copper).

- AWG 24 (4*2*0.50mm).

- Conductor stranding: single wire.

- Color: PANTONE COOL GRAY 5C.

- Printed length counter at every meter of cable.

- External PVC insulation: 5.0mm.

- HDPE conductor insulation: 0.88mm.

- Operation up to 100Mhz.

- Recommended connector / guide diameter for braided cables: 1.0 mm.

- Package: Color inner box with master carton.

- Packaging dimensions (W x D x H): 36.5x36.5x43.5 cm.

(Inner box dimension: 35x35x21 cm)

Electrical characteristics (20 degrees):

- direct-current resistance: ?9.1?/100m

- Pair-to-Ground capacitance: ?160PF / 100m.

- Characteristic impedance: 100?±15.

- Transport and storage temperature: 0 - 60 degrees.

- Operating temperature: -20 - 75 degrees.

- Working distance: 100m.



Product can only be ordered
Product is not currently available in stores.
Available to order:
71 pcs
Ordering to a store 4-8 working days.
